1

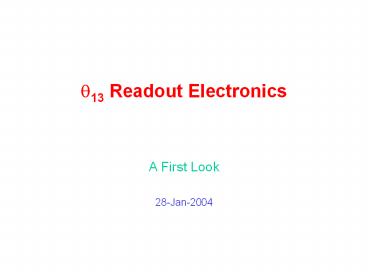

?13 Readout Electronics
  • A First Look
  • 28-Jan-2004

2
Requirements
  • Digitize charge seen by each PMT
  • Energy reconstruction
  • Provide timing of signal for each PMT
  • Position reconstruction
  • Provide trigger for DAQ
  • Physics triggers
  • Neutrinos (prompt EM energy, delayed neutron
    energy)
  • Backgrounds (to study and subtract)
  • Muons
  • Electronic calibration triggers (test pulses)
  • Source/laser/LED calibration triggers
  • Random triggers

3
Comparisons
  • KamLAND is important reference point
  • Same reaction channel
  • Scintillator-based detector
  • Recent design
  • But much larger target volume
  • 20 times larger
  • KamLAND resolutions
  • Energy
  • 7.5 / SqrtE(MeV) ? 2 ? 5.7 at 2 MeV
  • Position
  • 25cm ? 5 cm
  • timing resolution 2.0 ns RMS after charge
    correction

4
KamLAND Electronics
  • Berkeley Analog Waveform Transient Digitizer
    (AWTD)
  • For 1325 PMTs (32 coverage)
  • Sample every 1.5ns
  • For signals above 1/3 pe
  • 3 gain ranges (0.5, 4, 20)
  • Store analog samples in switched capacitor arrays
    until trigger
  • 128 samples deep (200 ns)
  • 10-bit ADC
  • 15 bit dynamic range
  • Converts 128 samples in 25?s.

5
Channel Response Characteristics
6
KamLAND Signals
  • 128 samples of 1.5ns
  • 3 gain scales
  • (most events just use 20X scale)
  • Gain 1/2
  • Gain 4X
  • Gain 20X

7
KamLAND Vertex Reconstruction
  • Calibrate timing of individual PMT channels with
    variable laser pulses at center of detector
  • Time offsets
  • T vs Q
  • Measure performance for physics with sources
    along z-axis

8
KamLAND Vertex Reconstruction
  • Mean reconstructed position depends on photon
    energy
  • Apply energy dependent correction

9
KamLAND Energy Reconstruction
  • Set gains of PMTs using LEDs
  • Equalize 1 pe peaks to 184 counts
  • Must correct for variations in storage capacitors
  • All signals converted to equivalent
    photoelectrons
  • Convert to energy using calibration sources

10
KamLAND Energy Reconstruction
11
Fresh look at Readout Electronics
  • Avoid ASICs if possible (local bias)
  • Long development time
  • Not cost effective in small volume
  • Do not profit from evolution of chips in the
    commercial sector
  • Main advantage size and possibly performance and
    functionality
  • Continued performance growth in commercial ADCs
    and FPGAs (PLD)
  • Popular building blocks for many applications

12
Fresh look at Readout Electronics
  • Does one need detailed pulse shape for E and t?
  • Pulse shape discrimination can resolve photons
    from neutrons
  • Depends on scintillator
  • Some exhibit this property and some do not
  • May depend on light collection from target
  • Reflections could obscure the effect
  • Much simpler if one can do shaping of input
    signal
  • Output amplitude proportional to input charge
  • Can be done with passive elements (no noise added)

13
ATLAS TileCal Approach
  • For ATLAS TileCal 20 ns PMT signals converted
    into 50-ns-wide standard shape
  • Amplitude proportional to input charge
  • Slower signal can be handled by commercial ADCs
    (40 megasamples per second)
  • Analysis process fits shape to extract amplitude
    and time

14
Performance of TileCal System
Time reconstruction is excellent amplitude
independent
15
Alternatives
  • Use LBNL AWTD
  • Likely if they join the collaboration
  • Possibly an updated version
  • Build a system based on a flash ADC
  • Eg. Maxim MAX1151
  • 8 bit flash
  • 750 MHz (sample every 1.3 ns)
  • Power 5.5W each
  • Need 3 per PMT for dynamic range
  • Use 40 MHz system clock à la LHC
  • Easy to distribute on optical fiber if LHC
    hardware used
  • Generate local vernier clock synced to system
    clock
  • Tale 16 samples for every 25 ns period of system

16
Alternatives
  • Build integrating system as in TileCal
  • The next steps
  • Test LHC system reading out scintillator test
    cell
  • Look at pulse shape discrimination with test cell
  • Continue to think about electronics
  • Trigger
  • Can it be derived from digital data, thereby
    avoiding a second signal branch
  • Consult with Harold
