Levels of Abstraction

1

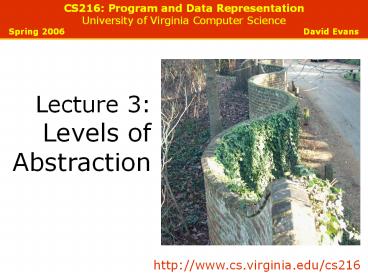

CS216 Program and Data Representation University
of Virginia Computer Science Spring 2006
David Evans
Lecture 3 Levels of Abstraction
http//www.cs.virginia.edu/cs216
2
Sections

• Make sure to go to the correct room.
• You should go to your assigned section, but if
  you have a one-time scheduling conflict, it is
  okay to switch.
• If you want to switch permanently, need
  permission from me
• Meant to be useful. Give me (or ACs) feedback on
  how to make sections more useful.

3
Menu

• Orders of Growth O, ?, ?, o
• Levels of Abstraction
• List Datatype

4
Recap

• Big-O the set O(f) is the set of functions that
  grow no faster than f
• There exist positive integers c, n0 gt 0 such that
  f(n) ? cg(n) for all n ? n0.
• Omega (?) the set O(f) is the set of functions
  that grow no slower than f
• There exist positive integers c, n0 gt 0 s.t. f(n)
  ? cg(n) for all n ? n0.

5
Question from last class

• Given f ? O (h) and g ? O (h) which of these are
  true
• For all positive integers m, f (m) lt g (m).

Proved false by counterexample
Statement a is false, so opposite of a must be
true. What is the opposite of statement a?
a ? ?f ? O (h) ? g ? O (h) ?m ? Z, f (m) lt g
(m).
6
Question from last class

• Given f ? O (h) and g ? O (h) which of these are
  true
• For all positive integers m, f (m) lt g (m).

• a ? ?f ? O (h) ? g ? O (h) ?m ? Z, f (m) lt g
  (m).
• a is false ? not a ?
• ? f ? O (h) ? g ? O (h) ? m ? Z, f (m) ? g (m).

• (this is exactly our counterexample)

Note this is very different from a claim like, ?
f ? O (h) ? g ? O (h) ? m ? Z, f (m) ? g (m).
7
What else might be useful?
f(n) 12n2 n
O(n3)
O(n2)
f(n) n2.5
?(n2)
Faster Growing
f(n) n3.1 n2
8
Theta (Order of)

• Intuition the set ?(f ) is the set of functions
  that grow as fast as f
• Definition f (n) ? ? (g (n)) if and only if
  both
• 1. f (n) ? O (g (n))
• and 2. f (n) ? ? (g (n))
• Note we do not have to pick the same c and n0
  values for 1 and 2
• When we say, f is order g that means f (n) ? ?
  (g (n))

9
Tight Bound Theta (?)
f(n) 12n2 n
O(n3)
O(n2)
f(n) n2.5
?(n2)
?(n2)
Faster Growing
f(n) n3.1 n2
10
Little-oh (o)

• Definition f ? o (g) for all positive constants
  c there is a value n0 such that f(n) ? cg(n) for
  all n ? n0.
• Compare f ? O (g) there are positive constants
  c and n0 such that f(n) ? cg(n) for all n ? n0.

11
Little-Oh (o)
f(n) 12n2 n
O(n3)
O(n2)
f(n) n2.5
?(n2)
o(n2)
?(n2)
Faster Growing
f(n) n3.1 n2
12
Summary

• Big-O there exist c, n0 gt 0 such that f(n) ?
  cg(n) for all n ? n0.
• Omega (?) there exist c, n0 gt 0 s.t. f(n) ?
  cg(n) for all n ? n0.
• Theta (?) both O and ? are true
• Litte-o there exists n0 gt 0 such that for all c
  gt 0, f(n) ? cg(n) for all n ? n0.

13
(Trick) Question

• If wealth(n) is your net worth n days after
  today, would you prefer
• a. wealth(n) ? O(n)
• b. wealth(n) ? O(n2)
• c. wealth(n) ? o(n)
• d. wealth(n) ? ? (n)

Which of these are satisfied by wealth(n)
0.0001n? Which is better wealth(n)
100000000 wealth(n) 0.0001n
14
Levels of Abstraction
15
Course Goal 3

• Understand how a program executes at levels of
  abstraction ranging from a high-level programming
  language to machine memory.

From Lecture 1
16
Levels of Abstraction Program
Real World Problem
High-Level Program
Physical World
Virtual World
Machine Instructions
Physical Processor
17
Tic-Tac-Toe
http//www.rci.rutgers.edu/cfs/472_html/Intro/Tin
kertoyComputer/TinkerToy.html
Play Tic-Tac-Toe
Tic-Tac-Toe Strategy
Low-level description
Tinker Toy Computer
18
Sequence Alignment Program
Genome Similarity
High-Level Program
Physical World
Python Interpreter
Virtual World
Align.py
Low-Level Program
Electrons, etc.
19
Levels of Abstraction Data
Real World Thing(s)
Data Abstraction
Physical World
Virtual World
Low-Level Data Structure
Bits
Electrons, etc.
20
Levels of Abstraction PS1
Genome
Align.py
Physical World
Virtual World
Python List
Bits
Electrons, etc.
21
CS216 Levels of Abstraction

• We go deeper into levels from the high level
  program to bits in the machine
• We dont deal with the processor and machine
  memory (see CS333)
• Now starting to look inside List data
  abstraction
• Later lower level programming language, virtual
  machines, assembly, data representation, etc.

22
List Abstract Datatype

• Ordered collection datatype
• ltx0, x1, ..., xn-1gt
• Operations for manipulating and observing
  elements of list

23
List Operations (Ch 3)

• Access (L, i) returns the ith element of L
• Length (L) returns the number of elements in L
• Concat (L, M) returns the result of
  concatenating L with M. (Elements ltl0, l1, ...,
  lL-1, m0, m1 ..., mM-1, gt )
• MakeEmptyList() returns ltgt
• IsEmptyList(L) returns true iff L 0.

Is this a sufficient list of List operations?
24
Constructing Lists

• The books list operations have no way of
  constructing any list other than the empty list!
• We need at least
• Append (L, e) returns the result of appending e
  to L ltl0, l1, ..., lL-1, e gt

25
Revised List Operations
Can define using Append, Access, Length

• Access (L, i) returns Li
• Length (L) returns L
• Concat (L, M) returns the result of
  concatenating L with M.
• MakeEmptyList() returns ltgt
• IsEmptyList(L) returns true iff L 0.
• Append (L, e) returns the result of appending e
  to L ltl0, l1, ..., lL-1, e gt

Easy to define using Length
Are all of these operations necessary?
26
Necessary List Operations

• Access (L, i) returns Li
• Length (L) returns L
• MakeEmptyList() returns ltgt
• Append (L, e) returns the result of appending e
  to L ltl0, l1, ..., lL-1, e gt

Note that we have defined an immutable list.
There are no operations for changing the value of
a list, only making new lists.
27
Continuous Representation
L
1
3
Length
2
Data
3
28
Linked Representation
L
1
Info
2
3
Info
Info
Next
Next
Next
Node
Node
Node
We need a special value for Next when there is no
Next node Book ? C 0 Python None Scheme,
Java null
29
Necessary List Operations

• Access (L, i) returns Li
• Length (L) returns L
• MakeEmptyList() returns ltgt
• Append (L, e) returns the result of appending e
  to L ltl0, l1, ..., lL-1, e gt

Can we implement all of these with both
representation choices?
30
Length
Linked
Continuous
L
L
3
Info
1
Next
1
2
3
Length
2
Data
def Length(L) if L None return 0
return 1 \ Length(L.Next)
3
def Length(L) return L.Length
31
Which Representation is Better?

• Time of Length (n is number of elements)
• Continuous O(1)
• Linked O(n)
• Are these bounds tight? (T)
• What about other operations?
• Other factors to consider?

Will explore this more next week
32
Python Lists

• Provide necessary operations
• Access (L, i) Li
• Length (L) len(L)
• MakeEmptyList() L
• Append (L, e) L.append (e)

33
Python List Operations

• insert L.insert (i, e)
• Returns ltl0, l1, ..., li-1, e, li, ..., lL-1gt
• concatenation L M
• Returns ltl0, l1, ..., lL-1, m0, m1, ..., mM-1
  gt
• slicing Lfromto
• Returns ltlfrom, lfrom 1, ..., lto-1 gt
• Lots more

34
How are they implemented?

• PS1
• Try to guess by measuring performance of
  different operations
• Unless you can do exhaustive experiments (hint
  you cant) you cant be assured of a correct
  guess
• Around PS4
• Look an lower abstraction level C code for the
  Python List implementation

35
Charge

• Problem Set 1 due Monday
• Point of PSs is to learn
• You can (and should) discuss your approaches and
  ideas with anyone
• You should discuss and compare your answers to
  1-6 with your assigned partner and produce a
  consensus best answer that you both understand
  and agree on
• Take advantage of Small Hall On-Call Hours
• Wednesday 7-830pm
• Thursday 4-530pm, 630-830pm
• Friday 11am-1230, 330-5pm
• Saturdays 3-6pm
• Sunday 330-930pm
• Monday Dynamic Programming
