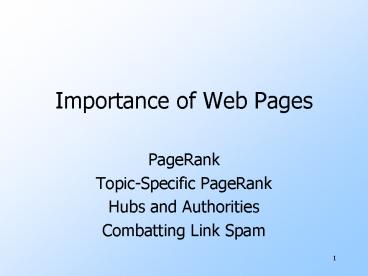

Importance of Web Pages

1
Importance of Web Pages

• PageRank
• Topic-Specific PageRank
• Hubs and Authorities
• Combatting Link Spam

2
PageRank

• Intuition solve the recursive equation a page
  is important if important pages link to it.
• In high-falutin terms importance the
  principal eigenvector of the transition matrix of
  the Web.
• A few fixups needed.

3
Transition Matrix of the Web

• Enumerate pages.
• Page i corresponds to row and column i.
• M i, j 1/n if page j links to n pages,
  including page i 0 if j does not link to i.
• M i, j is the probability well next be at
  page i if we are now at page j.

4
Example Transition Matrix
Suppose page j links to 3 pages, including i
but not x.
j
i
1/3
x
0
5
Random Walks on the Web

• Suppose v is a vector whose i th component is
  the probability that each random walker is at
  page i at a certain time.
• If each walker follows a link from i at random,
  the probability distribution for walkers is then
  given by the vector M v.

6
Random Walks (2)

• Starting from any vector v, the limit M (M
  (M (M v ) )) is the long-term distribution of
  walkers.
• Intuition pages are important in proportion to
  how likely a walker is to be there.
• The math limiting distribution principal
  eigenvector of M PageRank.

7
Example The Web in 1839
y a m
Yahoo
y 1/2 1/2 0 a 1/2 0 1 m 0 1/2 0
Msoft
Amazon
8
Solving The Equations

• Because there are no constant terms, the
  equations v M v do not have a unique solution.
• In Web-sized examples, we cannot solve by
  Gaussian elimination anyway we need to use
  relaxation ( iterative solution).
• Can work if you start with a fixed v.

9
Simulating a Random Walk

• Start with the vector v 1, 1,, 1
  representing the idea that each Web page is given
  one unit of importance.
• Repeatedly apply the matrix M to v, allowing the
  importance to flow like a random walk.
• About 50 iterations is sufficient to estimate the
  limiting solution.

10
Example Iterating Equations

• Equations v M v
• y y /2 a /2
• a y /2 m
• m a /2

Note is really assignment.
y a m
1 1 1
1 3/2 1/2
5/4 1 3/4
9/8 11/8 1/2
6/5 6/5 3/5
. . .
11
The Walkers
Yahoo
Msoft
Amazon
12
The Walkers
Yahoo
Msoft
Amazon
13
The Walkers
Yahoo
Msoft
Amazon
14
The Walkers
Yahoo
Msoft
Amazon
15
In the Limit
Yahoo
Msoft
Amazon
16
Real-World Problems

• Some pages are dead ends (have no links out).
• Such a page causes importance to leak out.
• Other groups of pages are spider traps (all
  out-links are within the group).
• Eventually spider traps absorb all importance.

17
Microsoft Becomes Dead End
y a m
Yahoo
y 1/2 1/2 0 a 1/2 0 0 m 0 1/2 0
Msoft
Amazon
18
Example Effect of Dead Ends

• Equations v M v
• y y /2 a /2
• a y /2
• m a /2

y a m
1 1 1
1 1/2 1/2
3/4 1/2 1/4
5/8 3/8 1/4
0 0 0
. . .
19
Microsoft Becomes a Dead End
Yahoo
Msoft
Amazon
20
Microsoft Becomes a Dead End
Yahoo
Msoft
Amazon
21
Microsoft Becomes a Dead End
Yahoo
Msoft
Amazon
22
Microsoft Becomes a Dead End
Yahoo
Msoft
Amazon
23
In the Limit
Yahoo
Msoft
Amazon
24
Msoft Becomes Spider Trap
y a m
Yahoo
y 1/2 1/2 0 a 1/2 0 0 m 0 1/2 1
Msoft
Amazon
25
Example Effect of Spider Trap

• Equations v M v
• y y /2 a /2
• a y /2
• m a /2 m

y a m
1 1 1
1 1/2 3/2
3/4 1/2 7/4
5/8 3/8 2
0 0 3
. . .
26
Microsoft Becomes a Spider Trap
Yahoo
Msoft
Amazon
27
Microsoft Becomes a Spider Trap
Yahoo
Msoft
Amazon
28
Microsoft Becomes a Spider Trap
Yahoo
Msoft
Amazon
29
In the Limit
Yahoo
Msoft
Amazon
30
PageRank Solution to Traps, Etc.

• Tax each page a fixed percentage at each
  interation.
• Add a fixed constant to all pages.
• Models a random walk with a fixed probability of
  leaving the system, and a fixed number of new
  walkers injected into the system at each step.

31
Example Microsoft is a Spider Trap 20 Tax

• Equations v 0.8(M v ) 0.2
• y 0.8(y /2 a/2) 0.2
• a 0.8(y /2) 0.2
• m 0.8(a /2 m) 0.2

y a m
1 1 1
1.00 0.60 1.40
0.84 0.60 1.56
0.776 0.536 1.688
7/11 5/11 21/11
. . .
32
General Case

• In this example, because there are no dead-ends,
  the total importance remains at 3.
• In examples with dead-ends, some importance leaks
  out, but total remains finite.

33
Solving the Equations

• Because there are constant terms, we can expect
  to solve small examples by Gaussian elimination.
• Web-sized examples still need to be solved by
  relaxation.

34
Finding a Good Starting Vector

• Newton-like prediction of where components of the
  principal eigenvector are heading.
• Take advantage of locality in the Web.
• Each technique can reduce the number of
  iterations by 50.
• Important PageRank takes time!

35
Predicting Component Values

• Three consecutive values for the importance of a
  page suggests where the limit might be.

36
Exploiting Substructure

• Pages from particular domains, hosts, or
  directories, like stanford.edu or
  infolab.stanford.edu/ullman tend to have many
  internal links.
• Initialize PageRank using ranks within your local
  cluster, then ranking the clusters themselves.

37
Strategy

• Compute local PageRanks (in parallel?).
• Use local weights to establish weights on edges
  between clusters.
• Compute PageRank on graph of clusters.
• Initial rank of a page is the product of its
  local rank and the rank of its cluster.
• Clusters are appropriately sized regions with
  common domain or lower-level detail.

38
In Pictures
39
Topic-Specific Page Rank

• Goal Evaluate Web pages not just according to
  their popularity, but by how close they are to a
  particular topic, e.g. sports or history.
• Allows search queries to be answered based on
  interests of the user.
• Example Query Maccabi wants different pages
  depending on whether you are interested in sports
  or history.

40
Teleport Sets

• Assume each walker has a small probability of
  teleporting at any tick.
• Teleport can go to
• Any page with equal probability.
• As in the taxation scheme.
• A topic-specific set of relevant pages
  (teleport set ).
• For topic-specific PageRank.

41
Example Topic Software

• Only Microsoft is in the teleport set.
• Assume 20 tax.
• I.e., probability of a teleport is 20.

42
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
43
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
44
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
45
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
46
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
47
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
48
Only Microsoft in Teleport Set
Yahoo
Msoft
Amazon
49
Picking the Teleport Set

• Choose the pages belonging to the topic in Open
  Directory.
• Learn from examples the typical words in pages
  belonging to the topic use pages heavy in those
  words as the teleport set.

50
Application Link Spam

• Spam farmers today create networks of millions of
  pages designed to focus PageRank on a few
  undeserving pages.
• To minimize their influence, use a teleport set
  consisting of trusted pages only.
• Example home pages of universities.

51
Hubs and Authorities

• Mutually recursive definition
• A hub links to many authorities
• An authority is linked to by many hubs.
• Authorities turn out to be places where
  information can be found.
• Example course home pages.
• Hubs tell where the authorities are.
• Example CS Dept. course-listing page.

52
Transition Matrix A

• HA uses a matrix A i, j 1 if page i links
  to page j, 0 if not.
• AT, the transpose of A, is similar to the
  PageRank matrix M, but AT has 1s where M has
  fractions.

53
Example HA Transition Matrix
y a m
Yahoo
y 1 1 1 a 1 0 1 m 0 1
0
A
Msoft
Amazon
54
Using Matrix A for HA

• Powers of A and AT have elements of exponential
  size, so we need scale factors.
• Let h and a be vectors measuring the hubbiness
  and authority of each page.
• Equations h ?Aa a µAT h.
• Hubbiness scaled sum of authorities of
  successor pages (out-links).
• Authority scaled sum of hubbiness of
  predecessor pages (in-links).

55
Consequences of Basic Equations

• From h ?Aa a µAT h we can derive
• h ?µAAT h
• a ?µATA a
• Compute h and a by iteration, assuming initially
  each page has one unit of hubbiness and one unit
  of authority.
• Pick an appropriate value of ?µ.

56
Example Iterating HA
1 1 1 A 1 0 1 0 1 0
1 1 0 AT 1 0 1 1 1 0
3 2 1 AAT 2 2 0 1 0 1
2 1 2 ATA 1 2 1 2 1 2
. . . . . . . . .
1?3 2 1?3

1 1 1
5 4 5
24 18 24
114 84 114
a(yahoo) a(amazon) a(msoft)
. . . . . . . . .
h(yahoo) 1 h(amazon) 1 h(msoft)
1
6 4 2
132 96 36
1.000 0.735 0.268
28 20 8
57
Solving HA in Practice

• Iterate as for PageRank dont try to solve
  equations.
• But keep components within bounds.
• Example scale to keep the largest component of
  the vector at 1.
• Trick start with h 1,1,,1 multiply by AT
  to get first a scale, then multiply by A to get
  next h,

58
Solving HA (2)

• You may be tempted to compute AAT and ATA first,
  then iterate these matrices as for PageRank.
• Bad, because these matrices are not nearly as
  sparse as A and AT.

59
HA Versus PageRank

• If you talk to someone from IBM, they may tell
  you IBM invented PageRank.
• What they mean is that HA was invented by Jon
  Kleinberg when he was at IBM.
• But these are not the same.
• HA does not appear to be a substitute for
  PageRank.
• But may be used by Ask.com.

60
Spam on the Web

• Search has become the default gateway to the web.
• Very high premium to appear on the first page of
  search results.

61
What is Web Spam?

• Spamming any action whose purpose is to boost
  a web pages position in search engine results,
  without providing additional value.
• Spam Web pages used for spamming.
• Approximately 10-15 of Web pages are spam.

62
Web-Spam Taxonomy

• Boosting techniques
• Techniques for increasing the probability a Web
  page will be a highly ranked answer to a search
  query.
• Hiding techniques
• Techniques to hide the use of boosting from
  humans and Web crawlers.

63
Hiding techniques

• Content hiding.
• Use same color for text and page background.
• Cloaking.
• Return different page to crawlers and browsers.
• Redirection.
• Redirects are followed by browsers but not
  crawlers.

64
Boosting Techniques

• Term spamming
• Manipulating the text of Web pages in order to
  appear relevant to queries.
• Why? You can run ads that are relevant to the
  query.
• Link spamming
• Creating link structures that boost PageRank.

65
Term Spamming (1)

• Repetition of one or a few specific terms e.g.,
  free, cheap, Viagra.
• Dumping of a large number of unrelated terms.
• E.g., copy entire dictionaries.

66
Term Spamming (2)

• Weaving
• Copy legitimate pages and insert spam terms at
  random positions.
• Phrase Stitching
• Glue together sentences and phrases from
  different sources.
• E.g., use the top-ranked pages on the topic you
  want to look like.

67
The Google Solution to Term Spamming

• In addition to PageRank, the original Google
  engine had another innovation it trusted what
  people said about you in preference to what you
  said about yourself.
• Give more weight to words that appear in or near
  anchor text than to words that appear in the page
  itself.

68
The Google Solution (2)

• Today, the Google formula for matching terms to
  documents involves over 250 factors.
• E.g., does the word appear in a header?
• As closely guarded as the formula for Coke.

69
Link Spam

• Three kinds of Web pages from a spammers point
  of view
• Own pages.
• Completely controlled by spammer.
• Accessible pages.
• E.g., Web-log comment pages spammer can post
  links to his pages.
• Inaccessible pages.

70
Spam Farms (1)

• Spammers goal
• Maximize the PageRank of target page t.
• Technique
• Get as many links from accessible pages as
  possible to target page t.
• Construct link farm to get PageRank multiplier
  effect.

71
Spam Farms (2)
Accessible
Own
Inaccessible
1
2
t
M
Goal boost PageRank of page t. One of the most
common and effective organizations for a spam
farm.
72
Analysis (1)
Own
Accessible
Inaccessible
1
2
t
M

• Suppose rank from accessible pages x.
• PageRank of target page y.
• Taxation rate 1-b.
• Rank of each farm page by/M (1-b)/N.

73
Analysis (2)
Own
Accessible
Inaccessible
1
2
t
M

• y x ?Mby/M (1-b)/N (1-b)/N
• y x b2y b(1-b)M/N
• y x/(1-b2) cM/N where c ?/(1?)

74
Analysis (3)
Own
Accessible
Inaccessible
1
2
t
M

• y x/(1-b2) cM/N where c ?/(1?).
• For b 0.85, 1/(1-b2) 3.6.
• Multiplier effect for acquired page rank.
• By making M large, we can make y as large as we
  want.

75
Detecting Link-Spam

• Topic-specific PageRank, with a set of trusted
  pages as the teleport set is called TrustRank.
• Spam Mass (PageRank TrustRank)/PageRank.
• High spam mass means most of your PageRank comes
  from untrusted sources you may be link-spam.

76
Picking the Trusted Set

• Two conflicting considerations
• Human has to inspect each seed page, so seed set
  must be as small as possible.
• Must ensure every good page gets adequate
  TrustRank, so all good pages should be reachable
  from the trusted set by short paths.

77
Approaches to Picking the Trusted Set

• Pick the top k pages by PageRank.
• It is almost impossible to get a spam page to the
  very top of the PageRank order.
• Pick the home pages of universities.
• Domains like .edu are controlled.
