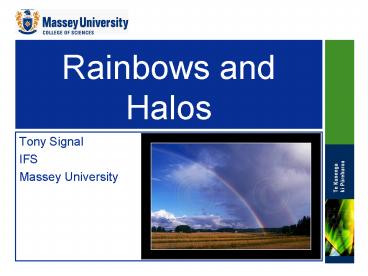

Title: Rainbows and Halos


1
Rainbows and Halos
  • Tony Signal
  • IFS
  • Massey University

2
Rainbows
  • Formation of Rainbow depends on three optical
    phenomena
  • Refraction of light at boundary
  • Total Internal Reflection
  • Dispersion

3
Rainbows
  • Formation of Rainbow depends on three optical
    phenomena
  • Refraction
  • Total Internal Reflection
  • Dispersion

4
Rainbows
  • Formation of Rainbow depends on three optical
    phenomena
  • Refraction
  • Total Internal Reflection
  • Dispersion

5
Rainbows
  • White light shining on spherical water droplet

6
Rainbows
  • Rainbow forms from light coming from many
    droplets
  • Your rainbow is unique!

7
Rainbows
8
Rainbows
  • Why is the rainbow at 42 deviation?
  • Most rays have this deviation, so its brightest.
  • Also Fresnel theory predicts rainbow is highly
    polarized!

9
Rainbows
  • Double (secondary) rainbow at 51 deviation from
    double internal reflection
  • Between rainbows is darker area (Alexanders
    band)

10
Rainbows
  • Double (secondary) rainbow at 51 deviation from
    double internal reflection
  • Now red on inside

11
Rainbows
  • Also visible in moonlight moonbow
  • Best seen when moon is low (lt42), full and sky
    is dark
  • Long exposure is good to see colours

12
Rainbows
  • Fogbows and lunar fogbows also seen
  • Smaller droplets mean colours are washed out
    diffraction effect
  • Can also see glory from backscattered light

13
Supernumerary Rainbows
  • Extra bows can be seen inside principal rainbow
  • Diffraction
  • First explained by Thomas Young 1804

14
Supernumerary Rainbows
  • Extra bows can be seen inside principal rainbow
  • Diffraction
  • First explained by Thomas Young 1804
  • http//www.atoptics.co.uk/rainbows/supdrsz.htm

15
Rainbows
  • Other interesting rainbows can be seen
  • Reflection rainbow
  • Water must be smooth
  • Seawater rainbow
  • http//www.atoptics.co.uk/rainbows/seabow.htm
  • Larger ref. index
  • gt smaller radius

16
Halos
  • Halos are coloured or white arcs, spots, pillars
    in sky.
  • Ice crystals in cirrus cloud
  • usually responsible
  • Halo
  • Sun dog
  • Parhelic circle

17
Halos
  • Ice crystals tend to form as hexagonal prisms
  • Minimum deviation about 22
  • Slight dispersion (inner edge reddish)

18
Halos
  • Easily seen in both sun- and moon-light
  • Ring makes angle of 22 with source

19
Halos
  • Sun dogs (parhelia) formed when light passes
    through near horizontal plate ice crystals
  • Can be very bright, reddish on inside
  • Noted by Aristotle and Cicero

20
Sun dogs at sunset

21
Halos
  • Light pillars formed when light reflects from
    faces of near horizontal plate ice crystals
  • Seen when sun (or other source) is low in sky

22
Halos
  • Sun ( moon) pillars can rise 22 in sky,
  • but pillars from artificial lights can go
  • very high.

23
More Information
  • Classic text Light and Color in the Outdoors, M.
    G. J. Minnaert (Springer, 1993)
  • Good websites
  • Atmospheric Optics www.atoptics.co.uk
  • Simulations, clear explanations, many pictures
  • Polar Image, Pekka Parviainens site, 100s of
    pictures www.polarimage.fi
  • The Weather Doctor www.islandnet.com/see/weather/
    general/site_map.htm
  • Nice figures, good explanations, pictures
