Elementary hypothesis testing

1

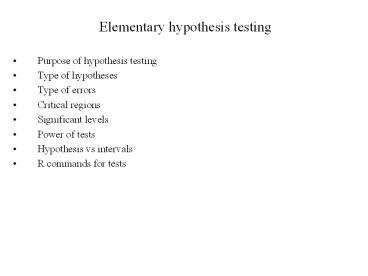

Elementary hypothesis testing

• Purpose of hypothesis testing
• Type of hypotheses
• Type of errors
• Critical regions
• Significant levels
• Power of tests
• Hypothesis vs intervals
• R commands for tests

2
Example

• This example will be used throughout this
  lecture. This data set was taken from R (it is
  shoes dataset in the package MASS)
• The purpose of this experiment was to test wear
  of shoes of two materials A and B. For this
  purpose 10 boys were selected and for each boy
  shoes were made using materials A and B. One type
  of material was used for shoe for the right foot
  and another for the left foot. This type of
  experiment is called paired design.
• A 13.2 8.2 10.9 14.3 10.7 6.6 9.5 10.8 8.8
  13.3
• B 14.0 8.8 11.2 14.2 11.8 6.4 9.8 11.3 9.3
  13.6
• For simplicity let us consider difference between
  A and B vectors
• -0.8 -0.6 -0.3 0.1 -1.1 0.2 -0.3 -0.5 -0.5 -0.3
• Sample mean is -0.41 and sample variance is 0.39

3
Purpose of hypothesis testing

• Statistical hypotheses are in general different
  from scientific ones. Scientific hypotheses deal
  with the behavior of scientific subjects such as
  interactions between all particles in the
  universe. These hypotheses in general cannot be
  tested statistically. Statistical hypotheses deal
  with the behavior of observable random variables.
  These are hypotheses that are testable by
  observing some set of random variables. They are
  usually related to the distribution(s) of
  observed random variables.
• For example if we have observed two sets of
  random variables x(x1,x2,,,,xn) and
  y(y1,y2,,,,ym) then one natural question is are
  means of these two sets different? It is a
  statistically testable hypothesis. Another
  question may arise do these two sets of random
  variables come from the population with the same
  variance? Or do these random variables come from
  the populations with the same distribution? These
  questions can be tested using observed samples.

4
Types of hypotheses

• Hypotheses can in general be divided into two
  categories a) parametric and b) non-parametric.
  Parametric hypotheses concern with situations
  when the distribution of the population is known.
  Parametric hypotheses depend on the value of one
  or several parameters of this distribution.
  Non-parametric hypotheses concern with situations
  when none of the parameters of the distribution
  is specified in the statement of the hypothesis.
  For example hypothesis that two sets of random
  variables come from the same distribution is
  non-parametric one.
• Parametric hypotheses can also be divided into
  two families 1) Simple hypotheses are those when
  all parameters of the distribution are specified.
  For example hypothesis that set of random
  variables comes from a population with normal
  distribution with known variance and known mean
  is a simple hypothesis 2) Composite hypotheses
  are those when some parameters of the
  distribution are specified and others remain
  unspecified. For example hypothesis that set of
  random variables comes from a population with
  normal distribution with a given mean value but
  unknown variance is a composite hypothesis.

5
Errors in hypothesis testing

• Hypothesis is usually not tested alone. It is
  tested against some alternative one. Hypothesis
  being tested is called the null-hypothesis and
  denoted by H0 and alternative hypothesis is
  denoted H1. Subscripts may be different and may
  reflect the nature of the alternative hypothesis.
  Null-hypothesis gets benefit of doubt. There
  are two possible conclusions reject
  null-hypothesis or not-reject null-hypothesis. H0
  is only rejected if sample data contains
  sufficiently strong evidence that it is not true.
  Usually testing of a hypothesis comes to
  verification of some test statistic (a function
  of the sample points). If this value belongs to
  some region w hypothesis is rejected.. This
  region is called critical region. The region
  complementary to the critical region that is
  equal to W-w is called acceptance region. By
  rejecting or accepting hypothesis we can make two
  types of errors
• Type I error Reject H0 if it is true
• Type II error Accept H0 when it is false.
• Type I errors usually considered to be more
  serious than type II errors.
• Type I errors define significance levels and Type
  II errors define power of the test. In ideal
  world we would like to minimize both of these
  errors.

6
Power of a test

• The probability of Type I error is equal to the
  size of the critical region, ?. The probability
  of the type II error is a function of the
  alternative hypothesis (say H1). This probability
  usually denoted by ?. Using notation of
  probability we can write
• Where x is the sample points, w is the critical
  region and W-w is the acceptance region. If the
  sample points belong to the critical region then
  we reject the null-hypothesis. Above equations
  are nothing else than Type I and Type II errors
  written using probabilistic language.
• Complementary probability of Type II error, 1-?
  is called the power of the test of the null
  hypothesis against the alternative hypothesis. ?
  is the probability of accepting null-hypothesis
  if alternative hypothesis is true and 1-? is the
  probability of rejecting H0 if H1 is true
• Power of the test is the function of ?, the
  alternative hypothesis - H1 and probability
  distributions conditional on H0 and H1.

7
Critical region

• Let us assume that we want to test if some
  parameter of the population is equal to a given
  value against alternative hypothesis. Then we can
  write (for example)
• Test statistic is usually a point estimation for
  ? or somehow related to it. If critical region
  defined by this hypothesis is an interval (-?cu
  then cu is called the critical value. It defines
  upper limit of the critical interval. All values
  of the statistic to the left of cu leads to
  rejection of the null-hypothesis. If the value of
  the test statistic is to the right of cu this
  leads to not-rejecting the hypothesis. This type
  of hypothesis is called left one-sided
  hypothesis. Problem of the hypothesis testing is
  either for a given significance level find cu or
  for a given sample statistic find the observed
  significance level (p-value).

8
Significance level

• It is common in hypothesis testing to set
  probability of Type I error, ? to some values
  called the significance levels. These levels
  usually set to 0.1, 0.05 and 0.01. If null
  hypothesis is true and probability of observing
  value of the current test statistic is lower than
  the significance levels then hypothesis is
  rejected.
• Consider an example. Let us say we have a sample
  from the population with normal distribution
  N(?,?2). We want to test following
  null-hypothesis against alternative hypothesis
• H0 ? ?0 and H1 ? lt ?0
• This hypothesis is left one-sided hypothesis.
  Because all parameters of the distribution (mean
  and variance of the normal distribution) have
  been specified it is a simple hypothesis. Natural
  test statistic for this case is the sample mean.
  We know that sample mean has normal distribution.
  Under null-hypothesis mean for this distribution
  is ?0 and standard deviation is ?/?n. Then we can
  write
• If we use the fact that Z is standard normal
  distribution (mean equal to 0 and variance equal
  to 1) then using the tables of standard normal
  distribution we can solve this equation.

9
Significance level Cont.

• Let us define
• Then we need to solve the equation (using
  standard tables or programs)
• Having found z? we can solve the equation w.r.t
  cu.
• If the sample mean is less than this value of cu
  we would reject with significance level ?. If
  sample mean is greater than this value then we
  would not reject null-hypothesis. If we reject
  (sample mean is smaller than cu) then we would
  say that if the population mean would be equal to
  ?0 then probability that we would observe sample
  mean is ?.
• To find the power of the test we need to find
  probability under condition that alternative
  hypothesis is true.

10
Significance level An example.

• Let us have a look example we had in the
  beginning of the lecture. Consider differences
  between A and B. The sample has a size of 10 and
  sample mean is -0.41. We assume that this sample
  comes from the population with normal
  distribution with standard deviation 0.39.. We
  want to test the following hypothesis
• H0 ?0, against H1 ?lt0
• We have ?0 0. Let us set significance level to
  0.05. Then from the table we can find that
  z0.051.645 and we can find cu.
• cu ?0 z0.05 0.39/?10 0-1.645 0.39/3.16
  -0.2
• Since the value of the sample mean (-0.41)
  belongs to the critical region (I.e. it is less
  than -0.2) we would reject null-hypothesis with
  significance level 0.05 (as well as at the level
  0.01).
• Note that we could have used R function to get
  the same result
• qnorm(0.05,sd0.39/sqrt(10))
• Test we have performed was left one-sided test.
  I.e. we wanted to know if the value of the sample
  mean is less than assumed value (0). Similarly we
  can build right one-sided tests and combine these
  two tests and build two sided tests. Right sided
  tests would look like
• H0 ??0 against H1 ?gt?0
• Then critical region would consist of interval
  cl?). Where cl is the lower bound of the
  critical region
• And two sided test would look like
• H0 ??0 against H1 ???0
• Then critical region would consists combination
  of two intervals (-?cu ?cl?).

11
Power of a test

• Power of a test depends on the alternative
  hypothesis.
• To see the power of the current test let us use
  normal distribution. Null hypotheis that true
  mean is equal 0. Let us set alternative
  hypothesis true mean is the observed difference
  that is equal to -0.41. Again we assume that the
  probability distribution is normal with known sd
  0.39. Sample size is 10. Significance level we
  want to test is 0.05 as in the previous case. We
  found that the upper bound of the critical region
  is -0.2. To find the power of the test we need to
  find P(xlt-0.2 ?1-0.41,?0.39). We can use R
  function to calculate this
• pnorm(-0.2,mean-0.41,sd0.39/sqrt(10))
• We divided standard deviation by the square root
  of 10 because of the sample size. This test is
  very powerful - power is equal 0.96
• Again if we do not know the standard deviation of
  the population then t distribution is more
  appropriate (it is implemented in the command -
  power.t.test).
• Note that if the distribution of the population
  (therefore each sample point and sample
  statistics) is known then the power of the test
  with a given difference could be calculated even
  before sample is available. Power of the test
  depends on alternative hypothesis. In case of
  mean of normal distribution that is exprssed
  using the difference between alternative and null
  hypothesis (?1-?0, where ?0 is mean under null
  and ?1 is under alternative hypothesis), the
  sample size and standard deviations.

12
Power of test

• Power of a test can be used before as well as
  after experimental data have been collected.
  Before the experiment it is performed to find out
  the sample size to detect a given effect. It can
  be used as a part of the design of an experiment.
• After the experiment it uses the sample size,
  effect (e..g. observed difference between means),
  standard deviation and calculates the power of
  the test.
• For example if we want to detect difference
  between means equal to 1 (delta) in paired design
  with power equal 0.9 at a significance level 0.05
  in one sided test then we need around 10
  observations.
• It is done in R using the command
  power.t.test(delta1,sd1,power0.8,type'paired',
  alt'one.sided')
• The result of R function
• Paired t test power calculation
• n 7.7276
• delta 1
• sd 1
• sig.level 0.05
• power 0.8
• alternative one.sided

13
Critical regions and power

• The table shows schematically relation between
  relevant probabilities under null and alternative
  hypothesis.

14
Composite hypothesis

• In the above example we assumed that the
  population variance is known. It was simple
  hypothesis (all parameters of the normal
  distribution have been specified). But in real
  life it is unusual to know the population
  variance. If population variance is not known the
  hypothesis becomes composite (hypothesis defines
  the population mean but population variance is
  not known). In this case variance is calculated
  from the sample and it replaces the population
  variance. Then instead of normal t distribution
  with n-1 degrees of freedom is used. Value of z?
  is found from the table of the tn-1 distribution.
  If n (gt100) is large then as it can be expected
  normal distribution very well approximates t
  distribution.
• Above example can be easily extended for testing
  differences between means of two samples. If we
  have two samples from the population with equal
  but unknown variances then tests of differences
  between two means comes to t distribution with
  (n1n2-2) degrees of freedom. Where n1 is the
  size of the first sample and n2 is the size of
  the second sample.
• If variances for both population would be known
  then test statistics for differences between two
  means has a normal distribution.

15
P-value of the test

• Usually instead of setting pre-defined
  significance level, observed p-value is reported.
  It is also called observed significance level.
  Let us analyse it. Let us consider above example
  when we had a sample of size 10 with the sample
  mean -0.41. We assumed that we knew population
  variance 0.39. P-value is calculated as
  follows
• We would reject null-hypothesis with significance
  level 0.05, 0.01 etc. If the population mean
  would be 0 with standard deviation 0.39 then
  observing -0.41 or less has the probability equal
  to 0.0004. In other words if would draw 10000
  times sample of size of 10 then around four times
  we would observe that mean value is less or equal
  to -0.41.
• In this example we assumed that we know the
  variance of the population. That is why we used
  normal distribution. If we do not know the
  variance we should use t (with degree of freedom
  equal to 10-19) distribution and p-value becomes
  0.004.

16
Likelihood ratio test

• Likelihood ratio test is one of the techniques to
  calculate test statistics. Let us assume that we
  have a sample of size n (x(x1,,,,xn)) and we
  want to estimate a parameter vector ?(? 1,?2).
  Both ?1 and ?2 can also be vectors. We want to
  test null-hypothesis against alternative one
• Let us assume that likelihood function is L(x
  ?). Then likelihood ratio test works as follows
  1) Maximise the likelihood function under
  null-hypothesis (I.e. fix parameter(s) ?1 equal
  to ?10 , find the value of likelihood at the
  maximum, 2)maximise the likelihood under
  alternative hypothesis (I.e. unconditional
  maximisation), find the value of the likelihood
  at the maximum, then find the ratio
• w is the likelihood ratio statistic. Tests
  carried out using this statistic are called
  likelihood ratio tests. In this case it is clear
  that
• If the value of w is small then null-hypothesis
  is rejected. If g(w) is the the density of the
  distribution for w then critical region can be
  calculated using

17
Hypothesis testing vs intervals

• Some modern authors in statistics think that
  significance testing is overworked procedure. It
  does not make much sense once we have observed
  the sample. Then it is much better to work with
  confidence intervals. Since we can calculate
  statistics related with the parameter we want to
  estimate then we can make inference that where
  true value of the parameter may lie.
• R commands produce predefined confidence
  intervals as well as p values. Usually p-values
  are used in rejecting or not-rejecting a
  hypothesis.

18
R commands for tests

• t.test - one, two-sample and paired t-test
• var.test - test for equality of variances
• power.t.test - to calculate power of t-test
• Some other tests. These are nonparametric tests
• wilcox.test - test for differences between means
  (works for one, two sample and paired cases)
• ks.test - Kolmogorov-Smirnov test for equality of
  distributions

19
Further reading

• Full exposition of hypothesis testing and other
  statistical tests can be found in
• Stuart, A., Ord, JK, and Arnold, S. (1991)
  Kendalls advanced Theory of statistics. Volume
  2A. Classical Inference and the Linear models.
  Arnold publisher, London, Sydney, Auckland
• Box, GEP, Hunter, WG, Hunter, JS (1978)
  Statistics for experimenters
• Peter Dalgaard, (2008) Introductory statistics
  with R
