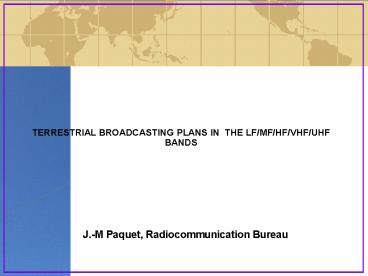

TERRESTRIAL BROADCASTING PLANS IN THE
LF/MF/HF/VHF/UHF BANDS
J.-M Paquet, Radiocommunication Bureau
2
Broadcasting in theLF/ MF/ HF/ VHF/ UHF bands

• 1. Bands allocated to Broadcasting.
• 2. Broadcasting Agreements and Plans.
• 3. Time-limits for comments to proposed
  modifications.

3
1. Bands allocatedto broadcasting.

• w Kilometric frequencies
• Frequency bands BC/BT Region Plan
• LF 148.5- 283.5 kHz BC 1 GE75
• w Hectometric frequencies
• Frequency bands BC/BT Region Plan
• MF 526.5- 1606.5 kHz BC 1 3 GE75
• 525 - 1605 kHz BC 2 RJ81
• 1605 - 1705 kHz BC 2 RJ88

4

• w Decametric frequencies
• Frequency bands BC/BT Region Planning
• Trop. 2300-2498 kHz BC 1
  - 2300-2495 kHz BC 2,3 - 3200-3400
  kHz BC 1,2,3 - 4750-4995
  kHz BC 1,2,3 - 5005-5060 kHz BC 1,2,3 -
• Non Trop. 3900-4000 kHz BC 3 - 3950-4000
  kHz BC 1 -
• __________________________________________________
  _____
• HF 5950-26100 kHz BC 1,2,3 Art. 12

5

• w Broadcasting in the VHF/ UHF bands
• Frequency bands BC/BT Region Plan
• VHF 47 - 68 MHz BC,BT 1 ST61, GE89
• 87.5 - 100 MHz BT 1 ST61
• 87.5 - 108 MHz BC 1 GE84
• 174 - 230 MHz BT 1 ST61, GE89
• 230 - 254 MHz BT 1 ST61, GE89 ¹
• UHF 470 - 960 MHz BT 1 ST61, GE89

¹ Certain African countries according to RR 5.252
6
1.2 Regional Agreements and notification under
Article 11
7
Plan modification procedure (according to Article
4 of each Agreement)
Administration T0.. Notification forms
BR
Pre-coordinations (if necessary)
Part A
Part B
Part C
Agreements
Time-limit of ...daysafter publicationin Part A
Objections of concernedadministrations
Confirmation offinal parameters and request for
publication inPart B
PLAN
8
2. List of the different Regional Agreements and
corresponding Plans

• Quick overview
• 2.1. Decametric waves Art.12 HF
• 2.2. GE84 Plan
• 2.3. ST61 Plan
• 2.4. GE89 Plan
• 2.5. GE75 Plan
• v 2.6. RJ81 Plan
• v 2.7. RJ88 Plan

9
Decametric waves
HF Coverage whole Earth (separate
presentation)
10
GE84 Plan
GE84 Plan

• Region 1 Part of Region 3

11
GE84 Plan
Currently 62403 stations
No. of modifications processed per year
(2005 figures are up to 30 September only)
12
ST61 Plan
ST61 Plan

• European Broadcasting Area

13
ST61 Plan
Currently 72402 stations
No. of modifications processed per year
(2005 figures are up to 30 September only)
14
GE89 Plan
GE89 Plan
African B. Area neighbours
15
GE89 Plan
Currently 15747 stations
No. of modifications processed per year
(2005 figures are up to 30 september only)
16
Surge in ST61/GE89 notices is due to upcoming
RRC-06 (15 May-16 June 2006)

• A new regional agreement for digital broadcasting
  services
• Planning area parts of Region 1 situated to the
  west of meridian 170 E to the north of parallel
  40 S, except the territory of Mongolia and in
  the Islamic Republic of Iran
• In the frequency bands
• 174-230 MHz T-DAB / DVB-T
• 470-862 MHz DVB-T

17
Some of the tasks for RRC-06 to include

• Revision of the Stockholm 1961 Agreement
• Analogue television in the European Broadcasting
  Area
• Revision of the Geneva 1989 Agreement
• Analogue television in Africa Broadcasting Area
  and neighbouring countries

18

GE75 Plan
GE75 Plan
Regions 1 and 3
19
GE75 Plan
Currently 11 301 daytime and 10 700 night-time
stations
No. of modifications processed per year
(2005 figures are up to 30 September only)
20
RJ81 Plan
RJ81 Plan
Region 2
21
RJ81 Plan
12106 day stations and 9 742 night
No. of modifications processed per year
(2005 figures are up to 30 September only)
22
RJ81 Agreement and Plan
RJ81 Plan

• r Rio de Janeiro Agreement 1981
• List A and List B ( Res. 2 )
• Classes of station and protected contours
• Plan Stations not put into operation after
• 4 years (para.4.6.3) no longer considered.
• r Modifications to Plan RJ81
• RJ81 Special Sections
• Assignments in Part A for more than 180 days no
  longer protected

23
RJ81 Plan modification procedure
RJ81 Plan

• Coordination required with
• Co-channel stations (4.2.1)
• Adjacent channel stations up to 30 kHz (4.2.1)

24
RJ81 Plan modification procedure
RJ81 Plan

• Coordination between administrations based on
  interference field strength value on the
  protected countours of other assignments
• Protection of groundwave and/or skywave contours
  depending on station class
• Calculations according to chapter 4 of Annex 2

25
RJ81 Plan modification procedure
RJ81 Plan

• No agreement required (4.2.14) if modification
  implies
• No increase in ERP
• Site change lt 3km or lt5 dist to nearest border
• Site change max of 10km

26
Features of the RJ81 Plan modification procedure
RJ81 Plan

• Publication in Part A of a Special Section
• 60 days comment period
• BR reminders at 30 days
• BR calculates effect of proposed modification on
  pending modifications and vice versa
• No comment AGREEMENT
• Must request publication in Part B

27
Extracts from Frequently Asked Questions (FAQ)
RJ81 List B

• 1. What is list B?
• As indicated in Resolution 2 of the Agreement,
  the RJ81Plan consists of two separate lists
• List A which includes only the assignments
  whose caused and received interference are both
  accepted
• List B which includes all the assignments
  which are not included in List ABR calculates
  effect of proposed modification on pending
  modifications and vice versa

28
Extracts from Frequently Asked Questions (FAQ)
RJ81 List B

• 2. Why is there a need to resolve list B?
• Resolves 3 of Resolution 2 strongly urges
  administrations whose stations appear in List B
• to make every effort to resolve the
  incompatibilities relating to their stations as
  quickly as possible.

29
Extracts from Frequently Asked Questions (FAQ)
RJ81 List B

• 4. What are the benefits of resolving list B?
• Better electromagnetic compatibility in MF in
  Region 2 (less harmful interferences produced and
  received) and consequently easier introduction of
  new stations as well as modification of existing
  ones.
• Simplified Plan modification procedures could
  facilitate the possible introduction of digitally
  modulated emissions in the MF band in Region 2.

30
Extracts from Frequently Asked Questions (FAQ)
RJ81 List B

• 6. How many were there in List B at the end of
  the conference? How many have been resolved?
• 6.1 At the end of the conference there were a
  total of 1203 daytime entries and night-time
  entries in List B.
• 6.2 Today there are still 177 daytime entries
  and 735 night-time entries in List B

31
Extracts from Frequently Asked Questions (FAQ)
RJ81 List B

• 8. What is the regulatory mechanism for removing
  an assignment from List B?
• The procedure for moving assignments from List B
  to list A appears in ANNEX 2 to Resolution 2 of
  the RJ81 Final Acts. It involves actions by
• the Bureau (BR)
• the administration notifying a proposed move to
  List A (N. Adm)
• the administrations adversely affected (Aff.Adm).
  The procedure can be summarized in the table
  below

32
List B FAQ
33
List B FAQ
34
Digital MF sound broadcasting in R2!
RJ81

• Special study by the BR. The results were
  published in Circular Letter CCRR/20 on 6
  September 2002 ?
• Conclusions
• The current regulatory provisions of the RJ81
  Agreement are rather inflexible and do not permit
  the introduction of digital modulation
• May be necessary to convene a short RRC for
  Region 2 countries, mandated to update the
  necessary administrative and technical parts of
  the Agreement.

35
Closing remarks
RJ81

• There is a way to facilitate possible
  introduction of digital MF sound broadcasting in
  R2.
• Participate in the resolution of List B!

36
RJ88 Plan
RJ88 Plan
Region 2
37
RJ88 Agreement and Plan
RJ88 Plan

• t Only 10 channels
• s 1605 - 1705 kHz
• s Normalized station characteristics (1kW,
  ?/4, omni., 310 mV/m at 1km)
• t RJ88 is an Allotment Plan
• s Plan principes
• s Plan modification procedure

38
Channel No. and assigned frequency
RJ88 Plan
39
RJ88 Plan
Allotments of Haïti and Dominican Republic
(Extract from Map 8, Part B of Annex 4)
40
RJ88 Plan
Allotments of Haïti and Dominican Republic
(Extract from Part A of Annex 4)
41
Example of Agreement procedure
RJ88 Plan
42
RJ88 Plan modification procedure
RJ88 Plan

• Section 1 normal modifications to the Plan
• Coordination based on set of distances (Annex 2)
• Agreement between administrations
• BR publishes Special Section
• Notification returned if not all agreements
  obtained
• Section 2 coordination when adjacent channel
  criteria is not met
• Agreement between administrations copy to BR
• 90 days for comments/agreement
• Notifier may request assistance of BR
• Additional 60 days for comments, then
• No comment Agreement

43
3. Time-limits for comments on proposed
modifications

• To permit all other possibly affected
  administrations to verify impact of the new
  station on their operations.
• RJ81 and RJ88 time-limits.

44
Time-limits
45
Time-limits
46
