Title: A LowEnergy ChipSet for Wireless Intercom


1

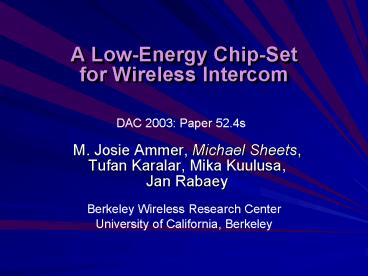

A Low-Energy Chip-Setfor Wireless Intercom
DAC 2003 Paper 52.4s
  • M. Josie Ammer, Michael Sheets,Tufan Karalar,
    Mika Kuulusa,Jan Rabaey

Berkeley Wireless Research CenterUniversity of
California, Berkeley
2
Overview
  • Background
  • Application scenario
  • System architecture
  • BaseBand Processor (BBP)
  • Wireless Protocol Processor (WPP)
  • Testing
  • Results

3
Background
  • Scenario
  • Ad-hoc voice communication
  • Users are physically close, but cannot converse
    normally
  • Soldiers in a tank
  • Firefighters in a burning building
  • Hazardous-material teams in protective suits
  • Intercom protocol
  • TDMA with up to 20 uplinks
  • 64Kbits/s/uplink
  • Base station for setup, teardown and framing only
  • Any node can be base station
  • Remotes communicate peer-to-peer

Intercom Protocol Stack based upon the OSI
Reference Model ISO/IEC 7498-11994
4
System Block Diagram
Clock generation
Wireless Protocol Processor (WPP)
BaseBand Processor (BBP)
Clock generation
SW debug
RS-232
Voltage regulation
2MB flash memory
Voltage regulation
Xilinx FPGA
Dual 8-bit ADC
User interface
RS-232
Off-the-shelf 2.4 GHz RF front-end
Speech codec
Headset
Dual 8-bit DAC
  • Intercom protocol stack
  • WPP ASIC implementing DLL and higher layers
    control dominated
  • BBP ASIC custom digital physical layer data
    path dominated
  • RF front-end off-the-shelf analog radio and
    associated circuitry
  • Two basic types of computation data path and
    control
  • Two design methodologies
  • Two custom chips

5
BBP Overview
BBP accommodates relaxed specs for
integrationwith custom low-power analog front-end
  • Air interface
  • Raw data rate 1.6Mbps
  • DSSS length 31 code _at_ 25 Mcps
  • QPSK modulation
  • Typical indoor frequency-selective wireless
    channel
  • Receiver Specs
  • /- 100 KHz carrier frequency offset (50ppm from
    2GHz reference)
  • 5 dB minimum SNR at ADC
  • 50ppm ADC sample clock

6
BBP Design Methodology
Datapath-dominated elements implemented as
heavily-parallelized, direct-mapped ASIC for
energy efficiency
  • High-level design exploration in Matlab/Simulink
  • Enable early exploration of architectural
    tradeoffs for power, speed, and area
  • Parameterized modules in ModuleCompiler
    correspond to fixed-point dataflow blocks in
    Simulink
  • In-house design flow, SSHAFT, is direct path from
    Simulink and Module Compiler to ASIC R. Davis
    et al, JSSC March 2002

Module Compiler
VHDL
7
BBP Energy Efficient ASIC Flow
Automatic
Control block in Stateflow
VHDL
Enable block in Simulink
Gated clock tree
VHDL
EN
clk2!
EN
clk1!
clk!
  • Control used to manage gated clock domains
  • Unused blocks are shut off to save energy

8
WPP Overview
WPP implements upper protocol layers using custom
and commercial components in a system-on-chip
architecture
  • Architectural components
  • Tensilica Xtensa processor
  • 64KB program SRAM
  • 64KB data SRAM
  • 1KB cache
  • Custom protocol processing engine
  • Flash memory controller
  • I/O interfaces
  • Sonics SiliconBackplane
  • Interfaces
  • Two RS-232 serial ports
  • Audio port
  • External flash memory
  • General purpose I/O
  • 6-wire interface to BBP

9
WPP HW/SW Co-Design
  • Control functionality is mapped onto
    architectural models
  • Performance simulations determine requirements
    for the mapping
  • Avoid wasted power in over-design
  • Find delay requirement gt logic voltage and clock
    frequency

10
WPP Low Power Techniques
  • System level
  • MAC only listens during TDMA slots of interest
  • Physical layer is put in low-power standby mode
    when idle
  • Low-power, on-chip SRAM caches entire software
  • Clock frequency minimized through performance
    simulation
  • Technology level
  • Extensive clock gating
  • Low core voltage (1.0 V)
  • Core and I/O logic have separate supply rails
  • Voltage level shifters interface domains allowing
    I/O up to 1.8 V
  • Synthesis
  • Library characterization incorporated
    low-voltage slow-down factor into synthesis
    constraints
  • Preferred gates large gates reduce switching
    capacitance

11
Testing
  • Testability features for each chip
  • WPP scan chain, BIST, on-chip debug hardware for
    processor
  • BBP scan chain, custom test modes
  • Testability features on prototype circuit board
  • Separation of chips
  • Xilinx FPGA used as pattern generator

12
Results
BaseBand Processor (BBP)
Wireless Protocol Processor (WPP)
13
Acknowledgments
  • Funding
  • DARPA PACC program
  • SIA GSRC
  • BWRC sponsor companies
  • National Technology Agency of Finland
  • IP
  • Sonics
  • Tensilica
  • Fabrication
  • ST Microelectronics
