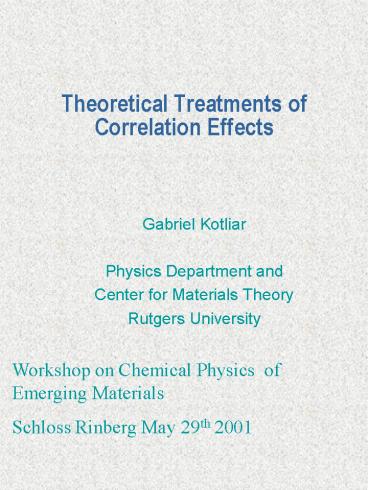

Theoretical Treatments of Correlation Effects

1
Theoretical Treatments of Correlation Effects

• Gabriel Kotliar
• Physics Department and
• Center for Materials Theory
• Rutgers University

Workshop on Chemical Physics of Emerging
Materials Schloss Rinberg May 29th 2001
2
What can theory contribute to materials research
?
Summary

• Some universal aspects can be gleaned from
  simple models. Example, recent DMFT study of
  the Mott transition endpoint.
• Non universal physics requires detailed
  modeling. Case study Recent LDADMFT study of d
  Pu.

3
Why study the Mott phenomena?

• Evolution of the electronic structure between
  the atomic limit and the band limit. Basic solid
  state problem. Solved by band theory when the
  atoms have a closed shell. Motts problem Open
  shell situation.
• The in between regime is ubiquitous central
  them in strongly correlated systems.

4
Mott transition in layered organic conductors
S Lefebvre et al. cond-mat/0004455
5
A time-honored example Mott transition in V2O3
under pressure or chemical substitution on V-site
6
Kuwamoto Honig and AppellPRB (1980)
7
Phase Diag Ni Se2-x SxG. Czek et. al. J. Mag.
Mag. Mat. 3, 58 (1976)
8
Theoretical Approach

• Mean field approach to quantum many body systems,
  constructing equivalent impurity models embedded
  in a bath to be determined self consistently.
  Use exact numerical techniques as well as
  semianalytical approaches to study this problem.
  (DMFT).
• Exact in infinite dimensions (Metzner and
  Vollhardt ) , can be improved systematically
  using cluster methods (DCA, CDMFT).
• Study simple model Hamiltonians (such as the one
  band model on simple lattices)
• Understand the results physically in terms of a
  Landau theory certain high temperature aspects
  are independent of the details of the model and
  the approximations used. Other results are
  approximate, and very sensitive on solid state
  aspects.

9
Reviews of DMFT

• Prushke T. Jarrell M. and Freericks J. Adv.
  Phys. 44,187 (1995)
• A. Georges, G. Kotliar, W. Krauth and M.
  Rozenberg Rev. Mod. Phys. 68,13 (1996)

10
Schematic DMFT phase diagram one band Hubbard
model (half filling, semicircular DOS, partial
frustration) Rozenberg et.al PRL (1995)
11
Insights from DMFT

• The Mott transition is driven by transfer of
  spectral weight from low to high energy as we
  approach the localized phase
• Control parameters doping, temperature,pressure

12
Evolution of the Spectral Function with
Temperature
Anomalous transfer of spectral weight connected
to the proximity to an Ising Mott endpoint
(Kotliar Lange and Rozenberg PRL 84, 5180 (2000))
13
Insights from DMFT think in term of spectral
functions (branch cuts) instead of well defined
QP (poles )
Resistivity near the metal insulator endpoint (
Rozenberg et. Al 1995) exceeds the Mott limit
14
Anomalous Resistivity and Mott transition Ni
Se2-x Sx
Miyasaka and Tagaki (2000)
15
ARPES measurements on NiS2-xSexMatsuura et. Al
Phys. Rev B 58 (1998) 3690
.
16
Ising character of Mott endpoint

• Singular part of the Weiss field is proportional
  to h a Max (p-pc) (T- Tc)1/d d3 in mean field
  and 5 in 3d
• h couples to all physical quantities which then
  exhibit a kink at the Mott endpoint. Resistivity,
  double occupancy,photoemission intensity,
  integrated optical spectral weight, etc.
• Divergence of the specific heat.

17
Mott transition endpoint

• Rapid variation has been observed in optical
  measurements in vanadium oxide and nises mixtures
• Experimental questions width of the critical
  region. Ising exponents or classical exponents,
  validity of mean field theory
• Building of coherence in other strongly
  correlated electron systems.
• Unify concepts from different theoretical
  approaches, condensation of d and onset of
  coherence .

18
Insights from DMFT

• Low temperatures several competing phases .
  Their relative stability depends on chemistry
  and crystal structure
• High temperature behavior around Mott endpoint,
  more universal regime, captured by simple models
  treated within DMFT

19

Delocalization Localization across the actinide
series
20
Small amounts of Ga stabilize the d phase
21
Problems with LDA

• DFT in the LDA or GGA is a well established tool
  for the calculation of ground state properties.
• Many studies (Freeman, Koelling 1972)APW methods
• ASA and FP-LMTO Soderlind et. Al 1990, Kollar
  et.al 1997, Boettger et.al 1998, Wills et.al.
  1999) give
• an equilibrium volume of the d phase Is 35
  lower than experiment
• This is the largest discrepancy ever known in DFT
  based calculations.

22
Problems with LDA

• LSDA predicts magnetic long range order which is
  not observed experimentally (Solovyev et.al.)
• If one treats the f electrons as part of the core
  LDA overestimates the volume by 30
• LDA predicts correctly the volume of the a phase
  of Pu, when full potential LMTO (Soderlind and
  Wills). This is usually taken as an indication
  that a Pu is a weakly correlated system

23
LDADMFT

• The light, SP (or SPD) electrons are extended,
  well described by LDA
• The heavy, D (or F) electrons are localized,treat
  by DMFT.
• LDA already contains an average interaction of
  the heavy electrons, substract this out by
  shifting the heavy level (double counting term)
• The U matrix can be estimated from first
  principles of viewed as parameters

24
effective action construction (Fukuda, Valiev
and Fernando , Chitra and GK).

• Select a set of local orbitals.
• Define a frequency dependent, local Greens
  function by projecting onto the local orbitals.
• The exact free energy can be expressed as a
  functional of the local Greens function and of
  the density
• A useful approximation to the exact functional
  road to total energy calculations.

25
LDADMFT

• V. Anisimov, A. Poteryaev, M. Korotin, A. Anokhin
  and G. Kotliar, J. Phys. Cond. Mat. 35,
  7359-7367 (1997).
• A Lichtenstein and M. Katsenelson Phys. Rev. B
  57, 6884 (1988).
• S. Savrasov G. Kotliar and E. Abrahams full
  self consistent implementation ( Nature, 2001)

26
LDADMFT Self-Consistency loop
DMFT
27
Pu DMFT total energy vs Volume (S. Savrasov )
28
Lda vs Exp Spectra
29
Pu Spectra DMFT(Savrasov et. al ) EXP (Arko et.
al)
30
Outlook

• Some universal aspects can be gleaned from
  simple models. Recent DMFT study of the Mott
  transition endpoint.
• Many more simple qualitative pictures of little
  corners in the space of all materials, are still
  to be found.
• Non universal physics requires detailed
  modeling. Recent LDADMFT study of d Pu.
• New developments in many body and electronic
  structure methods, predictions of new compounds?
  More interactions with chemical physics and
  material science.

31
Mean-Field Classical vs Quantum
Quantum case
Classical case
32
Landau Functional
G. Kotliar EPJB (1999)
33
Double counting correction
Simplest case F0 only. Generalization
Lichtenstein et.al in The context of LDAU
