Title: COST 285 Short term scientific mission


1

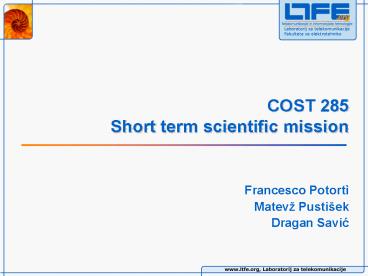

COST 285 Short term scientific mission
  • Francesco Potortì
  • Matev Pustiek
  • Dragan Savic

2
Objective
  • To design and implement software that can
  • import simulation or measurement results in
    form of trace files into a common data
    structure
  • starting with ns2 and tcpdump
  • launch post-processing (i.e. filtering and
    calculations) applications on the imported data,
    then
  • complement the raw data with the results of
    post-processing,
  • store the results of post-processing separately,
  • feed them to other applications (e.g. for
    presentation).
  • export data into various output formats (ascii,
    xml, )

3
Design issues
  • Modular approach required
  • Only a part of possible functionality implemented
    at the beginning
  • HDF5 is selected as base for the common data
    format
  • powerful, complete, efficient, well supported,
    widely used
  • libraries available in C, C, Fortran, Python
  • we plan to use the Python libraries (PyTables)
  • A Python application for the core
  • calls the different modules
  • flexible structure does not need to know about
    the modules in advance, but examines and loads
    them dynamically
  • the interface between the modules and the
    application is done through XML descriptions
  • command line interface available
  • the interface between the interface and the GUI
    renderer is done through HTML or XML

4
Design issues (2)
  • Start by support importing from ns2 and tcpdump
    traces
  • both are brought to a common format, which allows
  • using common post processing tools
  • combining simulation and measurement data
  • supporting network emulation done by ns2 and
    nsclick
  • Post-processing can be done with (any) HDF5
    compliant application
  • Matlab and Octave functions
  • Python based functions
  • User interface
  • command line
  • web browser-based interface (both graphical and
    text-based, both local and remote)
  • standalone renderer for XML
  • PHP-GTK
  • Flash or SVG player
  • ad hoc Java application

5
Software architecture
  • Building blocks
  • Functional modules (.py, .m)
  • import
  • export
  • process
  • CoreGlue (.py)
  • Reads module descriptions
  • Executes modules, passes parameters, reads module
    execution results
  • Handles HDF5
  • Provides a CLI
  • Provides a HTML interface
  • Generates XML for additional UI
  • UI
  • GUI based (standalone)
  • Tkinter, wxPython
  • GTKPHP
  • SVG, Flash
  • Java
  • HTML based thin HTTP server

php-gtk svg, flash
GUI1
GUI2
xml
html
CLI
CoreGlue
xml
6
Module description
  • Module (self)description
  • Check for possible standards or examples
  • Create DTD for module description
  • Structure (option)
  • name
  • description
  • author
  • group
  • execution environment
  • Python, Octave
  • parameters
  • name
  • type
  • default value
  • data range
  • optional parameters
  • name
  • type
  • default value

7
HDF5 related issues
  • Possible arrangements
  • separate tables populating a tree structure
  • multidimensional structure
  • there is a problem for HDF5 to store efficiently
    sparse matrices
  • check efficiency of adding a new dimension
  • Does HDF5 support symbolic indexes
  • If not need to map index to symbol (e.g. VOQ -
    1), maybe using attributes
  • What to do with post-processed data
  • store them together with raw data
  • store them in separate HDF5 tables
  • pass them to an external application
  • Does HDF5 have a standard time format
  • Conversion of time formats in various traces
    (ns2, tcpdump)

8
Tasks - Core
  • Defining software architecture
  • Core logic
  • Database structure
  • UI (GUI, command line)
  • Design details of the CoreGlue
  • overview of available XML libraries and features
  • conversion from XML to Python data structures
  • conversion from XML to HTML for rendering
  • labeling of data in HDF5
  • Writing the XML DTD for the module description
  • using an already available DTD for command
    options
  • starting from the gengetopt structure
  • Consider architecture changes for supporting
    independent replications
  • need to repeat simulation runs till some criteria
    is met
  • the raw data is not precious, as you can
    regenerate it again

9
Tasks - modules
  • Creating IP packet identifiers from tcpdump
    traces
  • Algorithm definition and testing
  • Creating ns2 import module
  • format auto-detect
  • Creating tcpdump import module
  • Create IP packet identifiers
  • Manage time-stamp formats auto-detect
  • Packet delay and jitter calculation module
  • .m scripts (Matlab and Octave)
  • Python and shell
  • Packet loss calculation module
  • .m scripts
  • Python and shell

10
Resources (1)
  • HDF5 Home Page
    http//hdf.ncsa.uiuc.edu/HDF5/
  • The nsclick simulation environment
    http//systems.cs.colorado.edu/Networking/nsclick
    /
  • NS2 network emulation
    http//www.isi.edu/nsnam/ns/ns-emulation.html
  • RFC 791 - IP protocol
    http//www.ietf.org/rfc/rfc0791.txt
  • Flash and SVG http//www.eprg.org/projects/SVG/f
    lash2svg/
  • Free software and research
    http//fly.isti.cnr.it/sl/
  • Gengetopt - program for parsing input parameters
    http//www.gnu.org/software/gengetopt/gengetopt.h
    tml
  • Creating GUI applications
    http//gtk.php.net/

11
Resources (2)
  • Convert Flash to SVG http//www.eprg.org/project
    s/SVG/flash2svg/
  • Convert SVG to Flash http//www.eskimo.c
    om/robla/svg2swf/
  • wxPython
    http//www.wxpython.org/
  • Introduction to Tkinter http//www.pythonware.co
    m/library/tkinter/introduction/
  • Extensible Markup Language (XML)
    http//www.w3.org/XML/

12
Recent achievements
  • Detailed software architecture was specified
  • A prototype of Python application
  • Components
  • CoreGlue
  • Functional modules
  • User interface
  • Simulation dataresults
  • Raw ns2 and tcpdump traces
  • Statistical results derived from raw data
  • e.g. packet-loss probability, delay, jitter,
  • Workshop paper proposal CoreGlue

13
Detailed software architecture
14
Open questions further steps
  • HDF5 database structure
  • data arrangement tables, sparse matrices,
  • keep raw data
  • what meta-data is needed
  • Development and building Python modules for
  • accessing, filtering and processing of the raw
    simulation data
  • e.g. common time formats, identification of IP
    traffic flows,
  • for export of data from HDF5 files to other
    formats
  • preprocessing of ns2 and tcptrace traces to a
    common format.
  • Design of an HTML graphical user interface.
