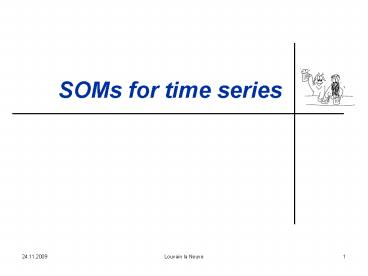

SOMs for time series

1
SOMs for time series
2
Time series ...
3
try to learn French
design the next research project
be very polite
organize everything
enjoy the excellent food
enjoy the nice company
enjoy yourself
go asleep
drink something
4
Time series

• time series of red wine, white wine, sake,
  coke, green tea, water
• spoken language time series of frequencies
• written language time series of symbols
• sensor streams
• music
• motor functions
• heart beat and other biological time series
• metabolic reactions
• DNA sequences

Vive la France!
5
SOM for time series...
6
SOM for time series

• Self-organizing map (SOM) Kohonen
• very popular unsupervised self-organizing neural
  method for data mining and visualization

network given by prototypes wj ? Rn in a lattice
mapping Rn?x ? position j in the lattice for
which x-wj minimal
Hebbian learning based on examples xi and
neighborhood cooperation
i.e. choose xi and adapt all wj wj wj
?nhd(j,j0)(xi-wj)
7
SOM for time series

• time window technique Martinetz et al., Simon et
  al.,
• specific metrics for sequences Günter/Bunke,
  Kohonen, Somervuo, Yin,
• statistical models Bishop et al., Tino et al.,
  Swarup et al.,
• temporal aspects by spatial representation
  Euliano/Principe, James/Miikkulainen, Kohonen,
  Schulz/Reggia, Wiemer,
• recurrent processing of time series

8
SOM for time series

• Temporal Kohonen Map Chappell/Taylor,93

x1,x2,x3,x4,,xt,
d(xt,wi) xt-wi ad(xt-1,wi)
training wi ? xt
Recurrent SOM Koskela/Varsta/Heikkonen,98
d(xt,wi) yt where yt (xt-wi) ayt-1
training wi ? yt
9
SOM for time series

• TKM/RSOM compute a leaky average of time series
• It is not clear how they can differentiate
  various contexts
• no explicit context!

is the same as
10
Merge SOM ...
11
Merge SOM

• Idea explicit notion of context

(wj,cj) in Rnxn
wj represents the current entry xt cj
represents the context the content of the
winner of the last step
d(xt,wj) axt-wj (1-a)Ct-cj where Ct
?wI(t-1) (1-?)cI(t-1), I(t-1) winner in step
t-1
merge
12
Merge SOM

• Example 42 ? 33? 33? 34

C1 (42 50)/2 46
C2 (3345)/2 39
C3 (3338)/2 35.5
13
Merge SOM

• Training
• MSOM wj wj ?nhd(j,j0)(xt-wj)
• cj cj
  ?nhd(j,j0)(Ct-cj)
• euclidean or alternative (e.g. hyperbolic)
  lattices
• MNG wj wj ?rk(j,xt,w)(xt-wj)
• cj wj
  ?rk(j,xt,w)(Ct-cj)

14
Merge SOM

• Training choice of merge parameters
• Ct ?wI(t-1) (1-?)cI(t-1)
• determines the influence of the history on the
  interior context representation
• ? 0.5 is often a good choice (balanced history)

• d(xt,wj) axt-wj (1-a)Ct-cj
• determines the influence of the history on the
  winner
• an annealing strategy starting from a 1 driven
  by the map entropy provides a good strategy
• Note
• ? determines the representation
• a determines the network dynamic/stability
• they can be controlled separately!

15
Merge SOM

• Experiment
• speaker identification, Japanese vowel ae
• 9 speakers, 30 articulations per speaker in
  training set
• separate test set
• http//kdd.ics.uci.edu/databases/JapaneseVowels/Ja
  paneseVowels.html

time
12-dim. cepstrum
16
Merge SOM

• MNG with posterior labeling
• ? 0.5, a 0.99?0.63, ? 0.3
• 150 neurons
• 0 training error
• 2.7 test error
• 1000 neurons
• 0 training error
• 1.6 test error
• rule based 5.9, HMM 3.8 Kudo et al.

17
Merge SOM

• Experiment
• Reber grammar
• 3106 input vectors for training
• 106 vectors for testing
• MNG
• 617 neurons, ? 0.5, a 1?0.57
• evaluation by the test data
• attach the longest unique sequence to each winner
• 428 distinct words
• average length 8.902
• reconstruction from the map
• backtracking of the best matching predecessor
• triplets only valid Reber words
• unlimited average 13.78
• TVPXTTVVEBTSXXTVPSEBPVPXTVVEBPVVEB

BTXXVPXVPXVPSE
BTXXVPXVPSE
(W,C)
18
Merge SOM

• Experiment
• classification of donor sites for C.elegans
• 5 settings with 10000 training data, 10000 test
  data, 50 nucleotides TCGA embedded in 3 dim, 38
  donor Sonnenburg, Rätsch et al.
• MNG with posterior labeling
• 512 neurons, ?0.25, ?0.075, a 0.999 ?
  0.4,0.7
• 14.060.66 training error, 14.260.39 test
  error
• sparse representation 512 6 dim

19
Merge SOM

• Theory (training)
• Assume
• a SOM with merge context is given (no
  neighborhood)
• a sequence x0, x1, x2, x3, is given
• enough neurons are available
• Then
• the optimum weight/context pair for xt is
• w xt, c ?i0..t-1
  ?(1-?)t-i-1xi
• Hebbian training converges to this setting as a
  stable fixed point

20
Merge SOM

• MSOM
• w xt, c ?i0..t-1 ?(1-?)t-i-1xi
• stable fixed point of Hebbian training
• dynamics driven by entropy-controlled parameter a
• Compare to TKM/RSOM
• optimum weights are w ?i0..t (1-a)ixt-i /
  ?i0..t (1-a)i
• but no fixed point for TKM
• fixed point for RSOM, but no separate control of
  the dynamic is possible

21
Merge SOM

• Theory (capacity)
• MSOM can simulate finite automata
• TKM/RSOM cannot
• ? MSOM is strictly more powerful than TKM/RSOM!

state
input
state
d
state
input (1,0,0,0)
22
General recursive SOM ...
23
General recursive SOM
xt,xt-1,xt-2,,x0
xt-1,xt-2,,x0
xt
(w,c)
xt w2
Ct - c2
The methods differ in the choice of context!
Ct
Hebbian learning w ? xt c ? Ct
24
General recursive SOM
xt,xt-1,xt-2,,x0
(w,c)
xt w2
Ct - c2
xt
MSOM Ct merged content of the winner in the
previous time step TKM/RSOM Ct activation of
the current neuron (implicit c)
Ct
xt-1,xt-2,,x0
25
General recursive SOM

• MSOM
• Ct merged content of the winner in the
  previous time step
• TKM/RSOM
• Ct activation of the current neuron
  (implicit c)
• Recursive SOM (RecSOM) Voegtlin
• Ct exponential transformation of the
  activation of all neurons
• (exp(-d(xt-1,w1)),,exp(-d(xt-1,wN)))
• Feedback SOM (FSOM) Horio/Yamakawa
• Ct leaky integrated activation of all
  neurons
• (d(xt-1,w1),, d(xt-1,wN)) ?Ct-1
• SOM for structured data (SOMSD)
  Hagenbuchner/Sperduti/Tsoi
• Ct index of the winner in the previous
  step
• Supervised recurrent networks
• Ct sgd(activation), metric as dot product

26
General recursive SOM
for normalized or WTA semilinear context
27
General recursive SOM

• Experiment
• Mackey-Glass time series
• 100 neurons
• different lattices
• different contexts
• evaluation by the temporal quantization error

average(mean activity k steps into the past -
observed activity k steps into the past)2
28
General recursive SOM
SOM
quantization error
RSOM
NG
RecSOM
SOMSD
HSOMSD
MNG
now
past
29
General recursive SOM

• MNG weight/context development

30
General recursive SOM

• SOMSD average receptive fields and variation

31
General recursive SOM
The principle can be generalized to tree
structures!
a(t,t)
t
t
a
(w,c,c)
w a2
C(t) - c2
C(t) c2
C(t)
C(t)
32
General recursive SOM
Supervised well established recursive neural
networks for learning on tree-structured inputs.
33
