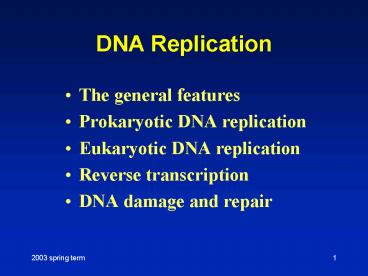

DNA Replication

1
DNA Replication

• The general features
• Prokaryotic DNA replication
• Eukaryotic DNA replication
• Reverse transcription
• DNA damage and repair

2
It has not escaped our notice that the specific
pairing we have postulated immediately suggests a
possible copying mechanism for the genetic
material. Watson Crick 1953
3

• Genetic information is stored in DNA
• The base-pairing principle is the basis of
  correctly transferring the information
• DNA (RNA) can be templates for replication.

4
The Watson Crick Structure

• Two polynucleotide strands, right-handed twist to
  form a 20-Å-diameter double helix
• The helix has 10 base pairs per turn (34Å).

5
The problems involved in the double helix model

• Double helix unwind?
• Semi-conservative?
• Replication starting point?
• Direction of replication?

6
DNA Replication

• The general features
• Prokaryotic DNA replication
• Eukaryotic DNA replication
• Reverse transcription
• DNA damage and repair

7
The General Features(?) Double helix unwind
supercoil relaxing

• Topoisomerases
• Helicases
• Single strand DNA binding proteins (SSB)

8

• Topoisomerase
• Induce negative super-coil at ori
• Relax positive super-coil
• Separate parental and daughter DNA strands.

9
Type I topoisomerase creating transient single
strand breaks in DNA.
10
Type II topoisomerase (gyrase) making transient
double strand breaks in DNA.
11

• Helicases (Dna B protein)
• Helicases II III bind to lagging
  strand
• Rep protein binds to leading strand.

12
(No Transcript)
13

• Single strand DNA binding protein (SSB)
• or DNA binding protein(DBP)
• Prevent hairpin structure formation
• Protect synthesed DNA from DNase digestion
• Stimulate DNA polymerases activity.

14
The General Features(?) Semi-conservative
replication

• Proposed replication modelssemi-conservative
  replicationconservative replication
• The experiment by Meselson and Stahl (1957)

15
(No Transcript)
16
The General Features(?) Origin of replication
Origin (ori) specific location(s) to control
replication start. Common features 1. origin
is a specific fragment 2. it contains repeat
sequences that can be recognised by some
proteins 3. AT rich.
17
Replication folk (growing point) the point at
which replication is occurring.
18
The General Features(?) Direction of replication

• Two origins, uni-directional replication
• One origin, uni-directional replication
• One origin, bi-directional replication

19
The General Features(?) Semi-discontinuous
replication
The synthesis always proceeds in the 5' to 3'
direction.
How can both strands be synthesized
simultaneously?
20
(No Transcript)
21
The General FeaturesSummary

• Double helix unwind supercoil relaxing
• Semi-conservative replication
• Origin of replication
• Direction of replication
• Semi-discontinuous replication

22
DNA Replication

• The general features
• Prokaryotic DNA replication
• Eukaryotic DNA replication
• Reverse transcription
• DNA damage and repair

23
Prokaryotic DNA Replication

• Priming or initiation
• Elongation
• Termination

24
Prokaryotic DNA Replication(?) Priming or
initiation
Double helix unwind supercoil relaxing

• Topoisomerases
• Helicases
• SSB

25
Priming

• Primase (DnaG protein) catalyses formation of
  RNA primers for DNA synthesis.
• Preprimosome including several proteins (PriA,
  PriB, PriC, DnaB, DnaC and DnaT)

26

• Primosome (primase preprimosome)
• binding to naked single strand DNA template
• moving along with replication forks on lagging
  strand
• being removed from the template and been reused
• DnaA protein E. Coli DNA replication

27
Prokaryotic DNA Replication(?) Elongation

• A rapid reaction (500nt/sec in E. Coli).
• The reaction system template (DNA)
• substrates (dNTP) RNA primers and Mg
• enzymes (polymerases ligase)

28
DNA polymerase I (pol I) isolated from E. Coli
by Kornberg in 1956

• Catalyses DNA synthesis (5' to 3') to fill the
  gaps (10nt/sec)
• 3' to 5' exonuclease excise mispaired nucleotide
  from the 3' end of the growing chain
• 5' to 3' exonuclease remove RNA primer, and edit
  mistakes by excising up to 10 nucleotides from 5'
  of a single strand.

29
DNA polymerase II (pol II) discovered by
analysing a mutant E. Coli that has very little
pol I activity

• Catalyses DNA synthesis (5' to 3')
• 3' to 5' exonuclease to repair DNA damage.
• Lack 5' to 3' exonuclease activity

30
DNA polymerase III (pol III) an important E.
Coli DNA replicase

• Polymerase activity (5' to 3' )
• 3' to 5' exonuclease activity but no nick.
• Lack 5' to 3' exonuclease activity
• Highly efficient gt150nt/sec
• Highly accurate error rate 1/106
• Highly continuous incorporate more than 5000 nt
  continuously.

31
(d d' c y)2
A model for polymerase III
32
The looping of the template for the lagging strand
33
DNA ligase catalyses the formation of a
phosphodiester bond by attack of the 3-OH on the
a-phosphryl group, seal the nick and release AMP.
ATP ligase
ligase-AMP-P-5'-DNA
DNA-3'-O-P-O-5'-DNA AMP
34
Prokaryotic DNA Replication(?) Termination

• The core sequence in termination region (ter)
  GTGTGGTGT
• Terminator utilization substance (Tus)
  contra-helicase function

35
DNA Replication

• The general features
• Prokaryotic DNA replication
• Eukaryotic DNA replication
• Reverse transcription
• DNA damage and repair

36
Eukaryotic DNA Replication

• General features
• Replication and cell cycle
• Telomere and telomerase

37
Eukaryotic DNA Replication(?) General features

• Genome size 108 - 109 base pair
• DNA protein complex
• Short primers and Okazaki fragments
• Multi-replication origin
• Bi-directional replication

38
General features (continued)

• DNA polymerase activity low (incorporation
  rate 50nt/sec)
• More DNA polymerase molecules
• DNA polymerases ?, ?, ?, ?, and ?
• Polymerase activity (5' to 3' )
• 3' to 5' exonuclease activity

39
General features (continued)

• Pol ? initiates replication with primase
• Pol ? and proliferating cell nuclear antigen
  (PCNA) complex is the major replicase
• Pol ? replicates the mitochondrial DNA
• Pol ? resembles pol ? and repairs damaged DNA
• Pol ? unknown its function.

40
General features (continued)
Other factors involved in eukaryotic DNA
replication Replication factor A (RFA) or
replication protein A (RPA) acts as SSB to bind
a single strand DNA Replication factor C (RFC)
41
Eukaryotic DNA Replication

• General features
• Replication and cell cycle
• Telomere and telomerase

42
Eukaryotic DNA Replication(?) Replication and
cell cycle
DNA replication is critical to cell
proliferation DNA replication occurs at S phase
in eukaryotic organism cell cycle Phase
transition is controlled by some proteins and
factors.
43
(No Transcript)
44
Cyclin
CDKs (cyclin dependent protein kinases)
protein phosphorylation (Rb protein)
Release transcript factor E2F
45
Once per cell cycle
Cyclin B CDK1
46
Eukaryotic DNA Replication(?) Telomere and
telomerase

• Telomere
• Specialized ends on eukaryotic chromosomes
• Consist of repetitive oligomeric sequences
• Gy(T/A)x y gt1, x 1-4
• Human telomere GGGTTA

47
(No Transcript)
48
Telomerase A modified reverse transcriptase at
telomere A ribonucleoprotein complex Elongate
the lagging strand template from its 3?-hydroxyl
end and complete replication of chromosomal
telomere.
49
(No Transcript)
50
(No Transcript)
51

• Biological significance of telomere and
  telomerase
• Completion of replication for chromosomal
  telomere
• Protection for the end of DNA strands
• Stabilizing chromosomes to prevent aging.

52
DNA Replication

• The general features
• Prokaryotic DNA replication
• Eukaryotic DNA replication
• Reverse transcription
• DNA damage and repair

53
Reverse Transcription

• The observation of reverse transcription
• The discovery of reverse transcriptase

54

• The discovery of RSV (Rous Sarcoma
  Virus)(Published on J. Exp. Med. in 1911) RSV
  is RNA virus
• Temins observation the blockage of RSV
  propagation by DNA synthesis inhibitors
• Proposed provirus (1963).

55
Peyton Rous 1966 Nobel prize winner for his
discovery of tumour inducing viruses
56
The isolation of reverse transcriptase, 1970 (by
Temin and Baltimore, independently)

• RNA template RNA-DNA hybrid
• DNA template
• DNA-DNA hybrid

57

• 5' 3' DNA synthesis
• Primer tRNA
• Present of Zn
• Lack of 3' 5' exonuclease activity

58
DNA Replication

• The general features
• Prokaryotic DNA replication
• Eukaryotic DNA replication
• Reverse transcription
• DNA damage and repair

59
DNA Damage and Repair

• Proofreading by DNA polymerase
• Environmental base damage and repair
• Mechanism of damage repair
• Damage repair for eukaryotic DNA.

60
Proofreading by DNA Polymerases

• Errors occur during DNA replication
• The replication stops
• DNA pol I and pol III (pol d) excise mismatched
  bases (3' 5' exonuclease activity).

61
Environmental Base Damage Repair
62
(No Transcript)
63
Mechanism of Damage Repair

• Excision repair AP endonuclease UvrABC UvrA
  and UvrB binding to damaged DNA UvrC excise
  damaged bases Helicase unwind the double strand
• DNA synthesis (pol I) and DNA ligation

64
(No Transcript)
65

• Recombination repair
• SOS repair

66
Damage repair for Eukaryotic DNA

• Xeroderma pigmentosum (XP)
• First described by Hebra and Kaposi
• Autosomal recessive inherited disease
• Defect in the excinuclease that hydrolyzes the
  DNA backbone near a pyrimidine dimer
• Highly sensitive to UV induced damage.

67
Damage repair for Eukaryotic DNA

• DNA repair genesradiation sensitive (RAD) gene
• Rad 3 encode helicase.
• Rad 10 encode proteins similar to UvrA and UvrC.
