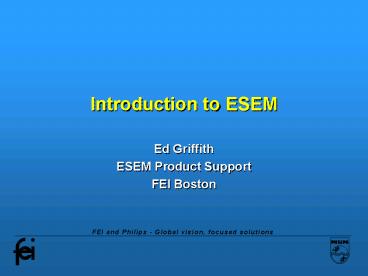

Introduction to ESEM

1
Introduction to ESEM

• Ed Griffith
• ESEM Product Support
• FEI Boston

2
Introduction to ESEM

• Why ESEM?
• Firstly, because its an SEM
• What can it do?

3
Regular samples polished metalBse
Sec
lowkV
4
Look at biological samples
5
Shoot resolution
at 6 torr?HiVac - yes!
6
Introduction to ESEM

• Why have a poor vacuum?

7
Flexibility with uncoated samples
8
Samples that are not prepared for
vacuum
9
Look at outgasing samples
10
Introduction to ESEM

• Thats why ESEM
• Brief ESEM history
• What is ESEM?
• Overview of Applications and Accessories

11
Introduction to ESEM

• ESEM launched in 1989
• Progression of ESEM in the market
• new concept in SEM market
• in-situ sample inspection segment
• Philips and FEI

12
Introduction to ESEM

• What is ESEM?

13
ESEM Vacuum System - XL30 ESEM FEG
14
ESEM Dual PLA Pumping System
15
ESEM Beam Gas Path Length BGPL
16
ESEM Gas Ionization Detectors
17
Gaseous Secondary Electron Detector
18
ESEM Large Field of View Detector
19
Introduction to ESEM Applications

• Regular SEM samples prepared the regular way
• imaging
• EDS
• Uncoated and Unprepared samples
• Dynamic experiments with samples
• the environment in the specimen chamber
• accessories for dynamic experiments in ESEM

20
Survey a sample
BSe of rustlow mag
21
Imaging and EDS
22
Low kV in HiVac
23
Introduction to ESEM Applications

• Regular SEM samples prepared the regular way
• imaging
• EDS
• Uncoated and Unprepared samples
• Dynamic experiments with samples
• the environment in the specimen chamber
• accessories for dynamic experiments in ESEM

24
Uncoated Bse vs. Sec little difference
25
Uncoated Bse vs. Sec difference
26
Same material can look different
27
Preparation alters the results
28
Coating covers details
29
HiVac or Cryo is not an option
30
Introduction to ESEM Applications

• Regular SEM samples prepared the regular way
• imaging
• EDS
• Uncoated and Unprepared samples
• Dynamic experiments with samples
• the environment in the specimen chamber
• accessories for dynamic experiments in ESEM

31
Wetting of fibers
32
Wet algae mat
33
Wet biological samples
34
In-situ hydration/dehydration
35
Watching paint dry
36
Water films
37
Wet Samples
38
Peltier Cooling Stage
39
Heat samples to lower temperatures
40
Heat samples and collect EDS data
41
Heat to higher temperatures
42
1000oC Hot Stage
43
Microinjector-Micromanipulator
44
Heating and mechanical testing
45
Mechanical Testing Stage
46
Residual Gas Analysis
47
Cryo microscopy in ESEM

• Conventional HiVac cryo
• preservation of sample surface
• bulk analysis - sample fracturing
• low kV
• Cryo in ESEM mode
• no coating
• imaging and EDS
• faster rates of sublimation
• stabilizes very beam sensitive samples
• specific gas environments, including water vapor
• studying time resolved rapid reactions
• polymerization

48
Cryo sample Ice cream

• Components of material
• ice crystals
• air pockets
• frozen sugar/cream
• Texture depends upon distribution of the phases
• Storage temperature of -20C
• Study what happens with change in handling
  conditions

49
Ice cream Conventional Cryo microscopy

• Advantages
• Ice can be maintained in the structure
• Disadvantage
• Matrix phase is glassy below glass transition
  temp
• Temperature is too low
• Metal coating needed

50
Ice cream Conventional ESEM

• Disadvantages
• Cant use pure water vapor to image
• frosting on the surface
• Ice sublimes at desired use temperature
• Cant distinguish air pockets from former ice
  cavities
• Without ice crystals, air pockets coalesce
  because the matrix will move

51
Ice cream Distorted structure
52
Ice cream nonConventional Cryo ESEM

• Specimen temperature
• held at -20C
• Image with gas mixture
• of 0.5 torr of water vapor
• and 1.7 torr of N2O

53
Ice cream

• Etching ice

54
At the edges with ESEM - defining new contrast
mechanisms - defining what new information can
be collected

• Charge Contrast Imaging
• internal structure information
• Contrast mechanisms in liquids and low Z
  materials
• Sec- emission and escape depth
• energy loss and band gaps
• Spectroscopy

55
Charge Contrast Imaging - CCI
Aluminum Hydroxide
56
Charge Contrast Imaging - CCI

• hydroxides
• carbonates
• sulfides
• spinals
• Zircon
• diamond
• biominerals
• dopants
• surface contamination

57
Polymers
p
p
p
6.0 eV
7.1 eV
8.3 eV
4.6 eV
p
p
p
58
Polymers

• Sec- image
  Intensity Histogram

59
Polymers

• Sec- image - false color Intensity
  Histogram

60
Contrast in liquids

• oil in water
  water in oil

61
