Medical DVD Recorder BDX201M

1

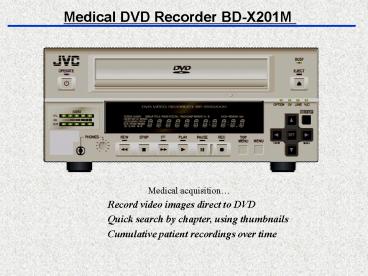

Medical DVD Recorder BD-X201M
Medical acquisition Record video images
direct to DVD Quick search by chapter, using
thumbnails Cumulative patient recordings over
time
2
Target Markets
Ultrasound
Endoscopy
3
JVC Concept
Key features for Medical DVD recorder
1 Self-contained system ( All-in-one, no PC
required ) 2 Real time, direct-to-disc
recording. Automatic thumbnails chapters 3
Simple, automated and rapid operation to produce
DVD disc 4 Menu system allows department and
patient number info to be recorded 5 Discs can be
customised with hospital name, logo and
background picture 6 Session recording for
cumulative patient recordings to same disc over
time 7 Condition Code recording. 8 Foot
pedal control for recording stop/start 8 SVO9500
protocol. 9 EN 60601-1 medical
standards compliancy
4
What is Medical DVD disc?
JVC considers that medical DVD discs should have.

• Customised menu design for each hospital.
• Layered menu with thumbnails. (Title menu
  Chapter menu)
• High quality Video and Audio
• Session recording capability

5
Main menu example for medical use
Patient ID used as Chapter name
Examination Date
Companys or hospitals logo mark and name.
ABC0123456789
ABC0123456789
ABC0123456789
ABC0123456789
ABC0123456789
ABC0123456789
Menu background and hospital division name are
easily created with JVCs Easy Menu software
6
DVD workflow comparison ( Example of DVD
production with 60 mins video content )
Authoring
Encoding
Burning
Finalize
PC with Software
Total 260min
15
15
50min
60 180min (1x 3x)
Encoding And Capturing
Finalize
Authoring
Burning
Consumer DVD recorder with HDD
Total 120min
60min
30
15
15
Menu Design
Finalize
Authoring
JVC BD-X201M
Encoding
Burning
Total 75min!
60min
15
Design main menu for each individual hospital
(once only)
7
Key Features

• RS-232C control via SVO9500 Protocol
• Foot pedal control
• - Record start-pause-stop for immediate
  creation of Chapters and Titles
• 3. Customised menu design
• - Customise layout menu on a PC and save it to
  the recorder.
• Hospitals logo and picture can appear on
  every Title menu and Chapter menu.
• 4. Automatic Chapter Maker
• - Automatic creation of chapters at regular time
  intervals, is an option.
• 5. Menu with Thumbnail
• - Two layer menu with thumbnails (first layer
  for Titles, second layer for Chapters)
• up to 99 titles thumbnails, each with up to 99
  chapters thumbnails.
• 6. Session recording
• - Patients recordings can be accumulated on
  same DVD disc over time, with playback facility
  available meantime via the BD-X201M recorder.

8
Menu layout design software (Bundled with
BD-X201M)

• Easymenu

9
Quick delivery of completed DVD disk after
surgery
BD-X201M workflow
JVC BD-X201M gives you fast DVD delivery!
BD-X201M
Delivery to Doctor
DVD-R
Finalize
Acquisition
Authoring
Encoding
Burning
Saving Time ! 15 minutes is the maximum time you
will need from the time you stop recording.
10
What the JVC Solution cannot do

• Cannot play
• Regular DVDs, purchased in the High Street
• DVDs with copy guard
• Multi-stream, eg with multi-language
  soundtracks or sub-titles
• 2. Cannot copy
• DVDs with copy guard.
• Cannot record off air
• The recorder does not have a TV tuner

11
What the JVC Solution cannot do

• Cannot make DVDs with
• Copy guard, Regional code, Multi-angle
  function,
• Closed caption and Dolby 5.1ch.
• Cannot output to
• DLT tape, for the authoring of media.
• Cannot make a menu with
• Motion picture thumbnail,
• Motion picture background.

12
Specification (1)
13
Specification (2)
14
BD-X201M back panel interfaces
Mini Jack for Foot switch
Audio input level Select 8dB(JVC) or 4dB(Sony)
Composite
Y/C in
Y/C out
Audio
IEEE1394
Ethernet
DC Power
RS-232C
USB (for Keyboard / Mouse)
