Chris Brealey

1

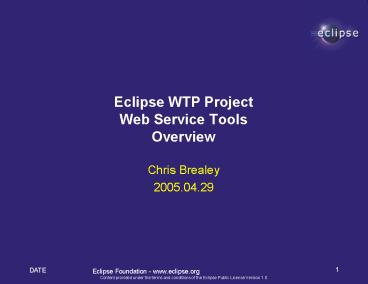

Eclipse WTP ProjectWeb Service ToolsOverview

• Chris Brealey
• 2005.04.29

2
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

3
Whos Who - Membership

• Membership
• Gilbert Andrews - gilberta_at_ca.ibm.com
• Chris Brealey (committer) - cbrealey_at_ca.ibm.com
• Kathy Chan (committer) - kathy_at_ca.ibm.com
• Naci Dai (committer) - naci.dai_at_eteration.com
• Sinan Konya (committer) - sinan_at_eteration.com
• Rupam Kuehner - rsinha_at_ca.ibm.com
• Peter Moogk - pmoogk_at_ca.ibm.com
• Seng Phung-Lu - sengpl_at_ca.ibm.com
• And others!
• Chris Brealey is the Java Web Services
  component lead.
• Naci Dai is the J2EE sub-project lead.

4
Whos Who - Partnerships

• Depends upon
• Server Tools
• J2EE Tools
• XML Web Service Tools
• Interdependent with
• J2EE Tools - Project navigator
• XML Web Service Tools - WS-I profiles

5
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

6
Overview - Components

• WST Internet Proxy Preferences
• WST Environment / Command Frameworks
• WST Web Services
• Web Services Explorer
• Web Services Scenario Framework
• JST Web Services
• Extensible Web Services Wizardry
• Bottom-up, Top-down and Client scenarios
• End-to-end orchestration, driving J2EE and Server
  tools
• Extensions for Apache Axis

7
WST Internet Proxy

• org.eclipse.wst.internet.proxy
• Firewall preferences
• To be migrated to Eclipse 3.2 base

8
WST Internet Proxy Preferences
9
WST Environment

• org.eclipse.wst.command
• Environment Framework
• Provides a degree of design separation from
  Eclipse
• For writing code that can run in, or without,
  Eclipse
• Environments
• Eclipse GUI - Dynamic Wizard Framework
• Eclipse Headless
• Java application
• Ant task
• Batch
• Web application
• Web service

10
WST Command

• org.eclipse.wst.command
• Command Framework
• Yet another executable, undoable, redoable thingy
• Depends on Environment
• Clearly separated from the GUI
• To be merged with...
• J2EE operation / wizard framework
• Eclipse IUndoableOperation framework

11
WST Web Services

• org.eclipse.wst.ws
• Web Services
• Preferences
• Web Services Explorer
• Integrated Web application
• Publication, discovery and WSDL / XSD native
  testing
• Extension points and provisional API for
• Discover
• Develop / Assemble / Deploy / Install / Run
• Test
• Publish
• Announce

12
Web Services Explorer
13
JST Web Services

• org.eclipse.jst.ws
• Web Services for Java (or other languages)
• Preferences
• Web service client wizardry
• Web service creation wizardry
• Extensions for Apache Axis on various servers
• JSR-109 handler configuration wizardry
• Java Web service finders (coming in WTP 1.0)
• JSR-109 validators (coming in WTP 1.1?)

14
Wizardry
15
Wizardry
16
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

17
Plugins

• Environment/Command Framework
• org.eclipse.wst.command.env
• org.eclipse.wst.command.env.core
• org.eclipse.wst.command.env.ui
• XML Web Services
• org.eclipse.wst.ws
• org.eclipse.wst.ws.explorer
• org.eclipse.wst.ws.parser
• org.eclipse.wst.ws.ui
• Java Web Services
• org.eclipse.jst.ws
• org.eclipse.jst.ws.consumption
• org.eclipse.jst.ws.consumption.ui
• org.eclipse.jst.ws.creation.ejb.ui
• org.eclipse.jst.ws.creation.ui
• org.eclipse.jst.ws.uddiregistry
• org.eclipse.jst.ws.ui
• Axis Web Services
• org.eclipse.jst.ws.axis.consumption.core

• org.eclipse.wst.command
• Eclipse Headless Environment
• Core framework
• SWT Environment / Dynamic wizards.
• org.eclipse.wst.ws
• Framework
• Web Services Explorer
• WSDL / WSIL / UDDI / Disco utilities
• SWT (e.g. preference pages)
• Java Web Services
• Java specific preferences and utilities
• org.eclipse.jst.ws.consumption
• org.eclipse.jst.ws.consumption.ui
• org.eclipse.jst.ws.creation.ejb.ui
• org.eclipse.jst.ws.creation.ui
• org.eclipse.jst.ws.uddiregistry
• SWT (e.g. preferences, actions)
• Axis Web Services
• Core Apache Axis support.

18
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

19
Extension Points

• org.eclipse.wst.command.env
• dynamicWizard
• actionDialogPreferenceType
• org.eclipse.wst.command.env.ui
• widgetRegistry
• org.eclipse.wst.ws
• webServiceFinder
• wsdlConsumer
• org.eclipse.jst.ws.consumption.ui
• discovery
• webServiceRuntime
• wsImpl
• wsClientImpl
• serviceType
• clientType
• tester
• publisher
• announcement

• Environment
• Dynamic wizard
• Dont show me this dialog again
• SWT Environment
• Binds wizard pages to commands
• Web Services Basics
• For plugging in Web service finders
• For plugging in WSDL consumers
• Web Services Scenarios
• Implementation discovery controls.
• Web service runtimes.
• Web service implementations.
• Web service client implementations.
• Service impl/scenario/module combos.
• Client impl/scenario/module combos.
• Web service test facilities.
• Web service publication facilities.
• Congratulations youve done it support.

20
Web Service Runtime
21
Web Service
22
Discovery
23
Test Facility
24
Publication
25
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

26
Apache Axis

• Representative extension to the Web services
  platform.
• As of M3 / M4 Axis 1.1
• Planned for M5 Axis 1.0, 1.1, 1.2
• Scenarios
• Java class -gt Web service (bottom-up)
• WSDL -gt Java Web service (top-down)
• WSDL -gt Java client
• Coming soon?
• Local Apache Axis installation JUnit gen EJB
  bottom-up
• Coming later?
• JWS deployment WSDD editors

27
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

28
The Future

• Tools for New and Emerging Standards
• WS-I Basic Security Profile
• WS-Policy
• WS-Security Policy
• WS-Policy Attachments
• WS-Addressing
• WS-Reliable Messaging
• WS-Resource Framework
• WS-Lots n lots more!
• SOAP 1.2
• WSDL 2.0
• MTOM
• JSR 181 - Web Service Metadata
• JSR 224 - JAX-RPC 2.0
• JSR 235 - SDO

29
Contents

• Whos who
• Overview
• Plugins
• Extension Points
• About Axis
• The Future
• Help!

30
Help!

• Apache Axis
• JUnit testcase development
• Identify and resolve performance issues
• Identify and resolve memory issues
• Identify and resolve thread safety issues
• Clean up warnings (e.g. use of deprecated
  symbols)
• Support for new and emerging standards
