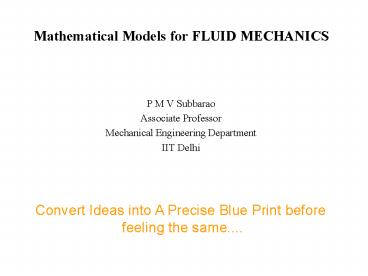

Mathematical Models for FLUID MECHANICS

1
Mathematical Models for FLUID MECHANICS

• P M V Subbarao
• Associate Professor
• Mechanical Engineering Department
• IIT Delhi

Convert Ideas into A Precise Blue Print before
feeling the same....
2
(No Transcript)
3
(No Transcript)
4
A path line is the trace of the path followed by
a selected fluid particle
5
Few things to know about streamlines

• At all points the direction of the streamline is
  the direction of the fluid velocity this is how
  they are defined.
• Close to the wall the velocity is parallel to the
  wall so the streamline is also parallel to the
  wall.
• It is also important to recognize that the
  position of streamlines can change with time -
  this is the case in unsteady flow.
• In steady flow, the position of streamlines does
  not change
• Because the fluid is moving in the same direction
  as the streamlines, fluid can not cross a
  streamline.
• Streamlines can not cross each other.
• If they were to cross this would indicate two
  different velocities at the same point.
• This is not physically possible.
• The above point implies that any particles of
  fluid starting on one streamline will stay on
  that same streamline throughout the fluid.

6
A useful technique in fluid flow analysis is to
consider only a part of the total fluid in
isolation from the rest. This can be done by
imagining a tubular surface formed by streamlines
along which the fluid flows. This tubular surface
is known as a streamtube.
A Streamtube
A two dimensional version of the streamtube
The "walls" of a streamtube are made of
streamlines. As we have seen above, fluid cannot
flow across a streamline, so fluid cannot cross a
streamtube wall. The streamtube can often be
viewed as a solid walled pipe. A streamtube is
not a pipe - it differs in unsteady flow as the
walls will move with time. And it differs because
the "wall" is moving with the fluid
7
Fluid Kinematics

• The acceleration of a fluid particle is the rate
  of change of its velocity.
• In the Lagrangian approach the velocity of a
  fluid particle is a function of time only since
  we have described its motion in terms of its
  position vector.

8
In the Eulerian approach the velocity is a
function of both space and time consequently,
x,y,z are f(t) since we must follow the total
derivative approach in evaluating du/dt.
9
(No Transcript)
10
Similarly for ay az,
In vector notation this can be written concisely
11
(No Transcript)
12
(No Transcript)
13
x
Conservation laws can be applied to an
infinitesimal element or cube, or may be
integrated over a large control volume.
14
Basic Control-Volume Approach
15
Control Volume

• In fluid mechanics we are usually interested in a
  region of space, i.e, control volume and not
  particular systems.
• Therefore, we need to transform GDEs from a
  system to a control volume.
• This is accomplished through the use of Reynolds
  Transport Theorem.
• Actually derived in thermodynamics for CV forms
  of continuity and 1st and 2nd laws.

16
Flowing Fluid Through A CV

• A typical control volume for flow in an
  funnel-shaped pipe is bounded by the pipe wall
  and the broken lines.
• At time t0, all the fluid (control mass) is
  inside the control volume.

17

• The fluid that was in the control volume at time
  t0 will be seen at time t0 dt as           .

18
The control volume at time t0 dt        .


The control mass at time t0 dt        .
The differences between the fluid (control mass)
and the control volume at time t0 dt        .
19

• Consider a system and a control volume (C.V.) as
  follows
• the system occupies region I and C.V. (region II)
  at time t0.
• Fluid particles of region I are trying to enter
  C.V. (II) at time t0.

III
II

• the same system occupies regions (IIIII) at t0
  dt
• Fluid particles of I will enter CV-II in a time
  dt.
• Few more fluid particles which belong to CV II
  at t0 will occupy III at time t0 dt.

20
The control volume may move as time passes.
III has left CV at time t0dt
I is trying to enter CV at time t0
21
Reynolds' Transport Theorem

• Consider a fluid scalar property b which is the
  amount of this property per unit mass of fluid.
• For example, b might be a thermodynamic property,
  such as the internal energy unit mass, or the
  electric charge per unit mass of fluid.
• The laws of physics are expressed as applying to
  a fixed mass of material.
• But most of the real devices are control volumes.
• The total amount of the property b inside the
  material volume M , designated by B, may be found
  by integrating the property per unit volume, M
  ,over the material volume

22
Conservation of B

• total rate of change of any extensive property B
  of a system(C.M.) occupying a control volume C.V.
  at time t is equal to the sum of
• a) the temporal rate of change of B within the
  C.V.
• b) the net flux of B through the control surface
  C.S. that surrounds the C.V.
• The change of property B of system (C.M.) during
  Dt is

add and subtract
23
The above mentioned change has occurred over a
time dt, therefore Time averaged change in BCM is
24
For and infinitesimal time duration

• The rate of change of property B of the system.

25
Conservation of Mass

• Let b1, the B mass of the system, m.

The rate of change of mass in a control mass
should be zero.
26
Conservation of Momentum

• Let bV, the B momentum of the system, mV.

The rate of change of momentum for a control mass
should be equal to resultant external force.
27
Conservation of Energy

• Let be, the B Energy of the system, mV.

The rate of change of energy of a control mass
should be equal to difference of work and heat
transfers.
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Applications of Momentum Analysis
This is a vector equation and will have three
components in x, y and z Directions.
X component of momentum equation
36
X component of momentum equation
Y component of momentum equation
Z component of momentum equation
For a fluid, which is static or moving with
uniform velocity, the Resultant forces in all
directions should be individually equal to zero.
37
X component of momentum equation
Y component of momentum equation
Z component of momentum equation
For a fluid, which is static or moving with
uniform velocity, the Resultant forces in all
directions should be individually equal to zero.
38
X component of momentum equation
Y component of momentum equation
Z component of momentum equation
For a fluid, which is static or moving with
uniform velocity, the Resultant forces in all
directions should be individually equal to zero.
39
Vector equation for momentum
Vector momentum equation per unit volume
Body force per unit volume
Gravitational force
40
Electrostatic Precipitators
Electric body force Lorentz force density
The total electrical force acting on a group of
free charges (charged ash particles) . Supporting
an applied volumetric charge density.
Where
Volumetric charge density
Local electric field
Local Magnetic flux density field
Current density
41
Electric Body Force

• This is also called electrical force density.
• This represents the body force density on a
  ponderable medium.
• The Coulomb force on the ions becomes an
  electrical body force on gaseous medium.
• This ion-drag effect on the fluid is called as
  electrohydrodynamic body force.

42
0
Ideal Fluids.
43
Pressure Variation in Flowing Fluids

• For fluids in motion, the pressure variation is
  no longer hydrostatic and is determined from and
  is determined from application of Newtons 2nd
  Law to a fluid element.

44
Various Forces in A Flow field

• For fluids in motion, various forces are
  important
• Inertia Force per unit volume

• Body Force

• Hydrostatic Surface Force

• Viscous Surface Force

• Relative magnitudes of Inertial Forces and
  Viscous Surface Force are very important in
  design of basic fluid devices.

45
Comparison of Magnitudes of Inertia Force and
Viscous Force

• Internal vs. External Flows
• Internal flows completely wall bounded
• Both viscous and Inertial Forces are important.

• External flows unbounded i.e., at some
  distance from body or wall flow is uniform.
• External Flow exhibits flow-field regions such
  that both inviscid and viscous analysis can be
  used depending on the body shape.

46
Ideal or Inviscid Flows
Eulers Momentum Equation
X Momentum Equation
47
(No Transcript)
48
Eulers Equation for One Dimensional Flow
Define an exclusive direction along the axis of
the pipe and corresponding unit direction vector
Along a path of zero acceleration the pressure
variation is hydrostatic
49
Pressure Variation Due to Acceleration
For steady flow along l direction (stream line)
Integration of above equation yields
50
Momentum Transfer in A Pump

• Shaft power Disc Power Fluid Power.
• Flow Machines Non Flow Machines.
• Compressible fluids Incompressible Fluids.
• Rotary Machines Reciprocating Machines.

51
Pump

• Rotate a cylinder containing fluid at constant
  speed.
• Supply continuously fluid from bottom.
• See What happens?

• Any More Ideas?

52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
Momentum Principle

• P M V Subbarao
• Associate Professor
• Mechanical Engineering Department
• IIT Delhi

A primary basis for the design of flow devices ..
56
Momentum Equation
57
Applications of of the Momentum Equation

• Initial Setup and Signs
• 1. Jet deflected by a plate or a vane
• 2. Flow through a nozzle
• 3. Forces on bends
• 4. Problems involving non-uniform velocity
  distribution
• 5. Motion of a rocket
• 6. Force on rectangular sluice gate
• 7. Water hammer

58
Navier-Stokes EquationsDifferential form of
momentum equation
X-component
Y-component
59
z-component
60
Applications of Momentum Equation
61
Generation of Motive Power Through Newtons
Second Law
62
Jet Deflected by a Plate or Blade
Consider a jet of gas/steam/water turned through
an angle
CV and CS are for jet so that Fx and Fy are blade
reactions forces on fluid.
63
Steady 2 Dimensional Flow
X-component
Y-component
Continuity equation
64
Steady 2 Dimensional Invisicid Flow
X-component
Y-component
Continuity equation
Inlet conditions u U v 0
65
Pure Impulse Blade
Pressure remains constant along the entire jet.
X-component
Y-component
Continuity equation
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
