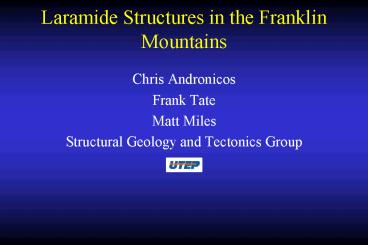

Laramide Structures in the Franklin Mountains

• Chris Andronicos
• Frank Tate
• Matt Miles
• Structural Geology and Tectonics Group

2
Talk Outline

• Regional Geology
• Structure of the Northwest Franklins
• Fault analysis
• Conclusions

3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Thrust faults
13
Thrust faults
P-axis black squares T-axis red squares
14
Fold axis andaxial surfaces
Folds trend northwest-southeast with steeply
dipping axial surface
15
(No Transcript)
16
Strike slip faults
17
Strike Slip Faults
P-axis black squares T-axis red squares
18
All faults
19
Tensile fractures
Tensile fracture are consistent with
southeast northwest extension
20
All faults
P-axis black squares T-axis red squares
21
(No Transcript)
22

23
Conclusions

• Structures in the Northwestern Franklin Mountains
  formed during Laramide Deformation
• Structures record Southwest-Northeast shortening
  and sub-horizontal extension
• Co-existing strike-slip and thrust faults are
  consistent with transpression

24
