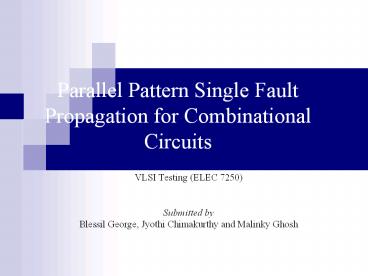

Parallel Pattern Single Fault Propagation for
Combinational Circuits

• VLSI Testing (ELEC 7250)
• Submitted by
• Blessil George, Jyothi Chimakurthy and Malinky
  Ghosh

2
Algorithm and Analysis

• A two value good machine simulation is performed
  in parallel for 32 patterns. The output at each
  logic gate is calculated, ordered such that a
  gate is calculated only after all its inputs are
  calculated. The number 32 is the chosen as a
  compromise between the improved performance and
  parallelism factor constraint (determined by the
  ALU size, usually 32 bits).
• For each stuck at fault the fault values of all
  32 patterns are propagated until faulty circuit
  values are same as the good circuit values. When
  fault becomes detectable at an observable point,
  its eliminated from further simulation.
• Steps i. and ii. Are repeated until all faults
  are eliminated.

3
Storage Format of Input Circuit

• Two Dimensional array of structures for storing
  circuit net data
• Each column (j) stores the information of each
  gate
• First row stores the gate type in the form of
  gate code, e.g. NAND corresponds to 4, AND
  corresponds to 1
• The subsequent rows store the data (name and
  value) of the input and output nets
• The output net data is stored in the last row of
  the particular column
• The input nets on each gates can be variable

Fig. Sample matrix generated for circuit shown.
4
Result Discussion

• Demonstration is for 7 bits
• Stuck at 1 fault type is shown
• 127 denotes the stuck at one fault of the net
  (i.e. bit 1 is inserted on all the 7
  vectors/patterns)
• The two dimensional array shown does not display
  the gate type.
• Each horizontal row is a gate last column is the
  output net of that gate

5
Result Discussion (contd.)

• Result corresponds to the XOR of good circuit and
  faulty circuit values
• When Result not equal to 0 vector is considered
  to detect fault
• When result is 0 good circuit and faulty
  circuit values are same

Fault Simulation Concept
6
Features

• Reads the input circuit in the standard format
  No further formatting required.
• Identify the first test vector t that detects
  fault on observable output as the test vector,
  i.e. we do not calculate all the primary outputs
  once the fault is detected on one of the primary
  outputs.
• Input Circuit needs to be levelised
• Does not include test compaction (e.g. Reverse
  Fault Simulation)

7
PROOFS Simulator Output

• 1 PASSES REQUIRED
• STATE_LIST_SIZE 256
• read vector 1
• det faults 6 coverage 0.272727
• read vector 2
• det faults 13 coverage 0.590909
• read vector 3
• det faults 17 coverage 0.772727
• read vector 4
• det faults 19 coverage 0.863636
• read vector 5
• det faults 19 coverage 0.863636
• read vector 6
• det faults 20 coverage 0.909091
• read vector 7
• det faults 21 coverage 0.954545
• read vector 8
• det faults 22 coverage 1.000000
• read vector 9
