Image Categorization by Learning and Reasoning with Regions

1

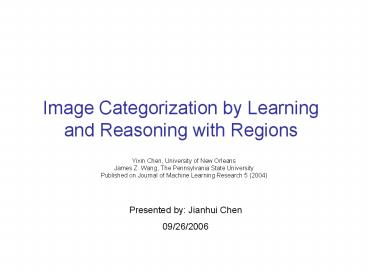

Image Categorization by Learning and Reasoning
with Regions

• Yixin Chen, University of New Orleans
• James Z. Wang, The Pennsylvania State University
• Published on Journal of Machine Learning Research
  5 (2004)

Presented by Jianhui Chen 09/26/2006
2
Contents

• Introduction
• Image segmentation and representation
• An extension of Multiple Instance Learning
• - Diverse Density SVM (DD-SVM)
• Comparison between DD-SVM MI-SVM
• Experimental results

3
Introduction

• Image categorization

• Images (a) and (b) are mountains and glaciers
  images.
• Images (c), (d) and (e) are skiing images.
• Images (f) and (g) are beach images.

4
Introduction

• A new learning technique for region-based image
  categorization.
• An extension from Multiple-Instance Learning
  (MIL) DD-SVM.

5
Image Segmentation and Representation

• Basic steps
• Step 1 -
• Divide the images into subblocks and extract
  LUV features.
• Step 2 -
• Do clustering using k-means and form regions.
• Step 3 -
• Form features vectors for regions (Classes).

6
Image Segmentation and Representation

• Step 1
• (1) Partition the image into non-overlapping

• blocks of size 4 x 4 pixels.
• (2) Extract LUV features from each of the
• blocks, denoted as L, U, V.

7
Image Segmentation and Representation

• Step 1
• (3) Apply Daubechies-4 wavelet transform and
  compute features from
• LH, HL, HH bands as fhl, flh and fhh .
• Suppose the coefficients are ckl,
  ck,l1, ck1,l, cK1,l1, the feature is
• computed as

(4) Form feature vector for each of the
subblocks as
L U V fhl flh fhh
8
Image Segmentation and Representation

• Step 2
• (1) Apply k-means and do clustering.
• (2) Each resulting class corresponds to one
  region.

9
Image Segmentation and Representation

• Step 3
• (1) Compute the mean of the feature vectors
  for each region.
• (2) Compute the normalized inertia of order
  1,2,3 for each region.

Normalized inertia
Shape feature of region Rj
Feature vector on Region Rj
10
An Extension of Multiple Instance Learning

• Basic idea of DD-SVM
• (1) An images is referred as a bag which
• consists of instances.
• (2) Each bag is mapped to a point in a new
• feature space.
• (3) Standard SVMs are trained in the bag
• feature space.

11
An Extension of Multiple Instance Learning

• Diverse-Density SVM (DD-SVM)
• (1) Maximum Margin Formulation of MIL.
• (2) Construct bag feature space based Diverse
• Density.
• (3) Compute region features vectors from
• instance features vectors.
• (4) A label is attached to a bag, instead of
• instances.

12
An Extension of Multiple Instance Learning

• Objective function for DD-SVM

, define bag feature space.
, a kernel function.
C controls the trade-off between accuracy and
regularization.
13
An Extension of Multiple Instance Learning

• The bag classifier is defined by as

Assume the bag feature space is given.
14
An Extension of Multiple Instance Learning

• Constructing a Bag Feature Space
• (1) Diverse Density
• (2) Learning Instance Prototypes
• (3) Computing Bag Features

15
Constructing a Bag Feature Space

• Diverse Density

x is a point in the instance feature space W is
a weight vector Ni is the number in the i-th bag
16
Constructing a Bag Feature Space

• Learning Instance Prototypes
• (1) A large value of DD at a point indicates
  it may fit better with the instances from
  positive bags than with those from negative bags.
• (2) Choose local maximizers as instance
  prototypes.
• (2) An instance prototype represents a class
  of instances that is more likely to appear in
  positive bags than in negative bags.

17
Constructing a Bag Feature Space

• Learning Instance Prototype

18
Constructing a Bag Feature Space
19
Computing Bag features
(1) Each bag feature is defined by one instance
prototype and one instance from the bag. (2) A
bag feature gives the smallest distance between
any instance and the corresponding instance
prototype. (3) A bag feature can be viewed as a
measure of the degree that an instance prototype
shows up in the bag.
20
Comparison between DD-SVM MI-SVM

• Learning process of DD-SVM

(1) Input is a collection of bags with binary
labels. (2) Output is SVM classifier.
21
Comparison between DD-SVM MI-SVM

• Learning process of MI-SVM

22
Comparison between DD-SVM MI-SVM

• Learning process of MI-SVM
• Input A collection of labeled bags.
• Output a SVM classifier.

23
Comparison between DD-SVM MI-SVM

• DD-SVM
• (1) Negative bag all instances are negative
• (2) Positive bag at least one instance is
  positive
• MI-SVM
• (1) One instance is selected to represent the
  whole positive bag.
• (2) Train SVM using all of the negative
  instances and selected positive instances.

24
Experimental Results

• Experimental Setup and Data set
• (1) The data set consists of 2000 images from
  20 image categories.
• (2) All images are in JPEG format with the
  size of 384 x 256 or 256 x 384.
• (3) Manually set parameters, ie. C
• (4) Comparison among DD-SVM, MI-SVM
  Hist-SVM

25
Experimental Results

• Categorization Result in terms of accuracy

26
Experimental Results

• Classification result in terms of confusion matrix

27
Experimental Results
All Beach images contain mountains or
mountain-like regions All Mountain and glaciers
images contain regions corresponding to river,
lake or oceans.
28
Experimental Results

• Sensitivity to image segmentation

29
Experimental Results

• Sensitivity to the number of Categories in the
  Data Set

30
Experimental Results

• Sensitivity to the size and diversity of training
  images

31
