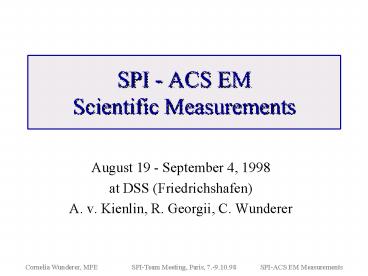

SPI - ACS EM Scientific Measurements

• August 19 - September 4, 1998
• at DSS (Friedrichshafen)
• A. v. Kienlin, R. Georgii, C. Wunderer

2
Overview

• ACS EM configuration for scientific measurements
• Results
• Linearity and Calibration of Energy and Event
  Thresholds
• Single Photoelectron Spectrum
• Gamma-ray Line Spectra
• Processing Times and Jitter
• Overrange Signals, overall ACS rate monitor
  (burst mode)
• Problems encountered
• SPI Documents SPI-MPE-PL-12-22
  (Plan) SPI-MPE-RP-12-26 (Report, in
  preparation)

3
ACS EM
4
ACS EM Configuration for scientific measurements
(I)

• 1 BGO detector module
• 2 PMTs
• 1 BGO crystal, consisting of 2 crystal blocks
  glued together, total dimensions 1.6 ? 5 ? 8 cm3
• 1 LED dummy
• 2 PMTs
• 3 LEDs for generation of single photoelectrons
  (SPE), lower energy and overrange events
• 1 RC circuit (charge box) for precise charge
  injection to CSA input of FEE

C
R
5
LED-Dummy
6
BGO Crystal Detector Module
7
ACS EM Configuration for scientific measurements
(II)

• 1 FEE with CSA output connector (reference
  FEE)(not officially part of ACS EM)
• FEE Unit Tester (FEE-UT)
• 2 FEEs
• EMC representative ACS EM with VCU
• VCU Unit Tester (VCU-UT)
• all 3 FEEs design status MARCH 1998

8
FEE-Unit Tester with FEE and LED-Dummy
9
VCU - Unit Tester
10
Linearity of Event-Trigger Thresholds
11
Linearity of Energy Thresholds
12
Generation of Differential Spectra

• Measure number of counts per 5 sec for each
  energy or event-trigger threshold setting
• This Stepping Method yields integral energy
  spectra (counts above threshold)
• Differentiate to obtain energy spectra (counts
  per channel)

13
Single Photoelectron (SPE) Spectrumusing LED
Dummy
PMT HV nominal (1129 V)
HV low (1088 V)
HV high (1170 V)
14
Single Photoelectron Measurements

• Using
• FEE event-trigger threshold calibration
  (knowledge of charge at CSA input corresponding
  to an event-trigger level)
• knowledge of PMT gains at different HVs
• observed peaks correspond to 1.7 x 10-19 (? 0.3 x
  10-19) Cb generated at photocathode
• SPE spectrum from LED with a different FEE
  corresponds to 2.0x10-19 (? 0.3 x10-19) Cb
• results consistent with expected values (single
  photoelectrons!)!! So far SPEs measured only
  using LED Dummy !!

15
Ab hier Reservefolien
16
Detail ACS EMLED-Dummy and Crystal Dummy
17
LED - SPE Spectrum measured automatically using
VCU-UT program
