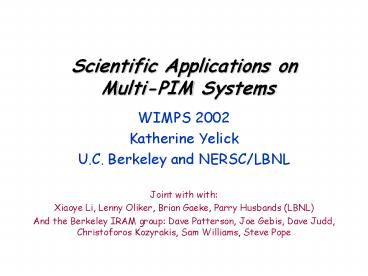

Scientific Applications on Multi-PIM Systems

1
Scientific Applications on Multi-PIM Systems

• WIMPS 2002
• Katherine Yelick
• U.C. Berkeley and NERSC/LBNL

Joint with with Xiaoye Li, Lenny Oliker, Brian
Gaeke, Parry Husbands (LBNL) And the Berkeley
IRAM group Dave Patterson, Joe Gebis, Dave Judd,
Christoforos Kozyrakis, Sam Williams, Steve Pope
2
Algorithm Space
Search
Two-sided dense linear algebra
FFTs
Grobner Basis (Symbolic LU)
Sorting
Reuse
Sparse iterative solvers
Asynchronous discrete even simulation
One-sided dense linear algebra
Sparse direct solvers
Regularity
3
Why build Multiprocessor PIM?

• Scaling to Petaflops
• Low power/footprint/etc.
• Performance
• And performance predictability
• Programmability
• Lets not forget this
• Would like to increase user base
• Start with single chip problem by looking at
  VIRAM

4
VIRAM Overview

• MIPS core (200 MHz)
• Single-issue, 8 Kbyte ID caches
• Vector unit (200 MHz)
• 32 64b elements per register
• 256b datapaths, (16b, 32b, 64b ops)
• 4 address generation units
• Main memory system
• 13 MB of on-chip DRAM in 8 banks
• 12.8 GBytes/s peak bandwidth
• Typical power consumption 2.0 W
• Peak vector performance
• 1.6/3.2/6.4 Gops wo. multiply-add
• 1.6 Gflops (single-precision)
• Fabrication by IBM
• Tape-out in O(1 month)

5
Benchmarks for Scientific Problems

• Dense Matrix-vector multiplication
• Compare to hand-tuned codes on conventional
  machines
• Transitive-closure (small large data set)
• On a dense graph representation
• NSA Giga-Updates Per Second (GUPS, 16-bit
  64-bit)
• Fetch-and-increment a stream of random
  addresses
• Sparse matrix-vector product
• Order 10000, nonzeros 177820
• Computing a histogram
• Used for image processing of a 16-bit greyscale
  image 1536 x 1536
• 2 algorithms 64-elements sorting kernel
  privatization
• Also used in sorting
• 2D unstructured mesh adaptation
• initial grid 4802 triangles, final grid 24010

6
Power and Performance on BLAS-2

• 100x100 matrix vector multiplication (column
  layout)
• VIRAM result compiled, others hand-coded or Atlas
  optimized
• VIRAM performance improves with larger matrices
• VIRAM power includes on-chip main memory
• 8-lane version of VIRAM nearly doubles MFLOPS

7
Performance Comparison

• IRAM designed for media processing
• Low power was a higher priority than high
  performance
• IRAM (at 200MHz) is better for apps with
  sufficient parallelism

8
Power Efficiency

• Huge power/performance advantage in VIRAM from
  both
• PIM technology
• Data parallel execution model (compiler-controlled
  )

9
Power Efficiency

• Same data on a log plot
• Includes both low power processors (Mobile PIII)
• The same picture for operations/cycle

10
Which Problems are Limited by Bandwidth?

• What is the bottleneck in each case?
• Transitive and GUPS are limited by bandwidth
  (near 6.4GB/s peak)
• SPMV and Mesh limited by address generation and
  bank conflicts
• For Histogram there is insufficient parallelism

11
Summary of 1-PIM Results

• Programmability advantage
• All vectorized by the VIRAM compiler (Cray
  vectorizer)
• With restructuring and hints from programmers
• Performance advantage
• Large on applications limited only by bandwidth
• More address generators/sub-banks would help
  irregular performance
• Performance/Power advantage
• Over both low power and high performance
  processors
• Both PIM and data parallelism are key

12
Analysis of a Multi-PIM System

• Machine Parameters
• Floating point performance
• PIM-node dependent
• Application dependent, not theoretical peak
• Amount of memory per processor
• Use 1/10th Algorithm data
• Communication Overhead
• Time processor is busy sending a message
• Cannot be overlapped
• Communication Latency
• Time across the network (can be overlapped)
• Communication Bandwidth
• Single node and bisection
• Back-of-the envelope calculations !

13
Real Data from an Old Machine (T3E)

• UPC uses a global address space
• Non-blocking remote put/get model
• Does not cache remote data

14
Running Sparse MVM on a Pflop PIM

• 1 GHz 8 pipes 8 ALUs/Pipe 64 GFLOPS/node
  peak
• 8 Address generators limit performance to 16
  Gflops
• 500ns latency, 1 cycle put/get overhead, 100
  cycle MP overhead
• Programmability differences too packing vs.
  global address space

15
Effect of Memory Size

• For small memory nodes or smaller problem sizes
• Low overhead is more important
• For large memory nodes and large problems packing
  is better

16
Conclusions

• Performance advantage for PIMS depends on
  application
• Need fine-grained parallelism to utilize on-chip
  bandwidth
• Data parallelism is one model with the usual
  trade-offs
• Hardware and programming simplicity
• Limited expressibility
• Largest advantages for PIMS are power and
  packaging
• Enables Peta-scale machine
• Multiprocessor PIMs should be easier to program
• At least at scale of current machines (Tflops)
• Can we bget rid of the current programming model
  hierarchy?

17
The End
18
Benchmarks

• Kernels
• Designed to stress memory systems
• Some taken from the Data Intensive Systems
  Stressmarks
• Unit and constant stride memory
• Dense matrix-vector multiplication
• Transitive-closure
• Constant stride
• FFT
• Indirect addressing
• NSA Giga-Updates Per Second (GUPS)
• Sparse Matrix Vector multiplication
• Histogram calculation (sorting)
• Frequent branching a well and irregular memory
  acess
• Unstructured mesh adaptation

19
Conclusions and VIRAM Future Directions

• VIRAM outperforms Pentium III on Scientific
  problems
• With lower power and clock rate than the Mobile
  Pentium
• Vectorization techniques developed for the Cray
  PVPs applicable.
• PIM technology provides low power, low cost
  memory system.
• Similar combination used in Sony Playstation.
• Small ISA changes can have large impact
• Limited in-register permutations sped up 1K FFT
  by 5x.
• Memory system can still be a bottleneck
• Indexed/variable stride costly, due to address
  generation.
• Future work
• Ongoing investigations into impact of lanes,
  subbanks
• Technical paper in preparation expect
  completion 09/01
• Run benchmark on real VIRAM chips
• Examine multiprocessor VIRAM configurations

20
Management Plan

• Roles of different groups and PIs
• Senior researchers working on particular class of
  benchmarks
• Parry sorting and histograms
• Sherry sparse matrices
• Lenny unstructured mesh adaptation
• Brian simulation
• Jin and Hyun specific benchmarks
• Plan to hire additional postdoc for next year
  (focus on Imagine)
• Undergrad model used for targeted benchmark
  efforts
• Plan for using computational resources at NERSC
• Few resourced used, except for comparisons

21
Future Funding Prospects

• FY2003 and beyond
• DARPA initiated DIS program
• Related projects are continuing under Polymorphic
  Computing
• New BAA coming in High Productivity Systems
• Interest from other DOE labs (LANL) in general
  problem
• General model
• Most architectural research projects need
  benchmarking
• Work has higher quality if done by people who
  understand apps.
• Expertise for hardware projects is different
  system level design, circuit design, etc.
• Interest from both IRAM and Imagine groups show
  level of interest

22
Long Term Impact

• Potential impact on Computer Science
• Promote research of new architectures and
  micro-architectures
• Understand future architectures
• Preparation for procurements
• Provide visibility of NERSC in core CS research
  areas
• Correlate applications DOE vs. large market
  problems
• Influence future machines through research
  collaborations

23
Benchmark Performance on IRAM Simulator

• IRAM (200 MHz, 2 W) versus Mobile Pentium III
  (500 MHz, 4 W)

24
Project Goals for FY02 and Beyond

• Use established data-intensive scientific
  benchmarks with other emerging architectures
• IMAGINE (Stanford Univ.)
• Designed for graphics and image/signal processing
• Peak 20 GLOPS (32-bit FP)
• Key features vector processing, VLIW, a
  streaming memory system. (Not a PIM-based
  design.)
• Preliminary discussions with Bill Dally.
• DIVA (DARPA-sponsored USC/ISI)
• Based on PIM smart memory design, but for
  multiprocessors
• Move computation to data
• Designed for irregular data structures and
  dynamic databases.
• Discussions with Mary Hall about benchmark
  comparisons

25
Media Benchmarks

• FFT uses in-register permutations, generalized
  reduction
• All others written in C with Cray vectorizing
  compiler

26
Integer Benchmarks

• Strided access important, e.g., RGB
• narrow types limited by address generation
• Outer loop vectorization and unrolling used
• helps avoid short vectors
• spilling can be a problem

27
Status of benchmarking software release
Optimized vector histogram code
Optimized
Optimized GUPS inner loop
GUPS Docs
Pointer Jumping w/Update
Vector histogram code generator
GUPS C codes
Conjugate Gradient (Matrix)
Neighborhood
Pointer Jumping
Transitive
Field
Standard random number generator
Test cases (small and large working sets)
Build and test scripts (Makefiles, timing,
analysis, ...)
Unoptimized

• Future work
• Write more documentation, add better test cases
  as we find them
• Incorporate media benchmarks, AMR code, library
  of frequently-used compiler flags pragmas

28
Status of benchmarking work

• Two performance models
• simulator (vsim-p), and trace analyzer (vsimII)
• Recent work on vsim-p
• Refining the performance model for
  double-precision FP performance.
• Recent work on vsimII
• Making the backend modular
• Goal Model different architectures w/ same ISA.
• Fixing bugs in the memory model of the VIRAM-1
  backend.
• Better comments in code for better
  maintainability.
• Completing a new backend for a new decoupled
  cluster architecture.

29
Comparison with Mobile Pentium

• GUPS VIRAM gets 6x more GUPS

Data element width 16 bit 32 bit 64 bit
Mobile Pentium GUPS .045 .046 .036
VIRAM GUPS .295 .295 .244
Transitive
Pointer
Update
VIRAM30-50 faster than P-III
Ex. time for VIRAM rises much more slowly w/ data
size than for P-III
30
Sparse CG

• Solve Ax b Sparse matrix-vector
  multiplication dominates.
• Traditional CRS format requires
• Indexed load/store for X/Y vectors
• Variable vector length, usually short
• Other formats for better vectorization
• CRS with narrow band (e.g., RCM ordering)
• Smaller strides for X vector
• Segmented-Sum (Modified the old code developed
  for Cray PVP)
• Long vector length, of same size
• Unit stride
• ELL format make all rows the same length by
  padding zeros
• Long vector length, of same size
• Extra flops

31
SMVM Performance

• DIS matrix N 10000, M 177820 ( 17 nonzeros
  per row)
• IRAM results (MFLOPS)
• Mobile PIII (500 MHz)
• CRS 35 MFLOPS

SubBanks 1 2 4 8
CRS 91 106 109 110
CRS banded 110 110 110 110
SEG-SUM 135 154 163 165
ELL (4.6 X more flops) 511 (111) 570 (124) 612 (133) 632 (137)
32
2D Unstructured Mesh Adaptation

• Powerful tool for efficiently solving
  computational problems with evolving physical
  features (shocks, vortices, shear layers, crack
  propagation)
• Complicated logic and data structures
• Difficult to achieve high efficiently
• Irregular data access patterns (pointer chasing)
• Many conditionals / integer intensive
• Adaptation is tool for making numerical solution
  cost effective
• Three types of element subdivision

33
Vectorization Strategy and Performance Results

• Color elements based on vertices (not edges)
• Guarantees no conflicts during vector operations
• Vectorize across each subdivision (12, 13, 14)
  one color at a time
• Difficult many conditionals, low flops,
  irregular data access, dependencies
• Initial grid 4802 triangles, Final grid 24010
  triangles
• Preliminary results demonstrate VIRAM 4.5x faster
  than Mobile Pentium III 500
• Higher code complexity (requires graph coloring
  reordering)

Pentium III 500 1 Lane 2 Lanes 4 Lanes
61 18 14 13
Time (ms)
