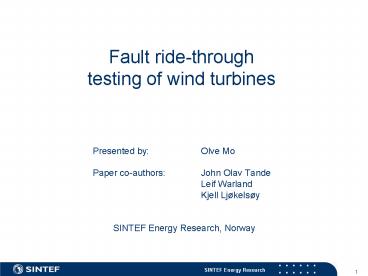

Fault ride-through testing of wind turbines

• Presented by Olve Mo
• Paper co-authors John Olav Tande
• Leif Warland
• Kjell Ljøkelsøy
• SINTEF Energy Research, Norway

2
Background

• Grid codes now require wind farms to ride-through
  temporarily grid voltage dips (faults).
• Full scale tests against different grid codes is
  not practical
• IEC 61400-21 ed2 (CD 2006) presents a
  standardized test for characterizing the wind
  turbine response to a voltage dip
• The result of the standardized tests can be used
  to validate a numerical simulation model of the
  wind turbine.
• The validated simulation model can then to be
  used to check compliance to different grid codes

3
Scope

• Can numerical simulations models be used to
  accurately predict ride-through capabilities of a
  fixed speed, direct connected induction
  generators?
• Will the results of the new standardized test
  provide useful results for validation of such
  models?

4
IEC 61400-21 ed2 (CD 2006)
5
Laboratory test setup
6
Short circuit emulator only (IG discon.)
Small dip setup
Large dip setup
Instantaneous voltage
Fundamental positive sequence voltage
90
55
7
Numerical simulation model

• Model of laboratory set-up
• PSCAD/EMTDC Simulation tool (Instantaneous value,
  time domain simulation tool)
• Standard PSCAD induction machine model used (7th
  order model)

8
Comparison (small dip, ride through succeeded)
--- Measured --- Simulated
Active power
Voltage
Fundamental positive sequence
Reactive power
Current
9
Comparison (large dip, ride through failed)
Active power
Voltage
--- Measured --- Simulated
Fundamental positive sequence
Reactive power
Current
10
Determination of ride-through limit

• Reapplied large voltage dip with successively
  reduced torque setting until the generator was
  able to ride-through the voltage dip
• Very promising result for the use of simulations
  to assess fault ride through capabilities !

11
Large dip, 86 torque (ride through succeeded)
Large dip, 87.5 torque (ride through failed)
--- Measured --- Simulated
Voltage
Voltage
Fundamental positive sequence
Current
Current
12
Conclusions

• Simulations and laboratory measurements shows
  excellent agreement
• Validated simulation models can accurately
  predict fault ride-through capability of direct
  grid connected induction generators
• Test results from a standard test will be useful
  for model validation provided detailed data of
  both wind turbine and test equivalent are found
  in the test report.
• More advanced wind turbines may be more
  challenging (doubly fed induction generator,
  power electronic converter control, fast pitch
  systems, fast acting digital protection systems)
• Is it possible to get desired accuracy using
  simpler phasor type models ?? (e.g. PSSE)

13
Small voltage dip measurements
Current
Voltage
Instantaneous
Fundamental positive sequence
14
Large voltage dip measurements
Current
Voltage
Instantaneous
Fundamental positive sequence
15
Work experiences

• Voltage and current dynamics is very sensitive to
  grid / short circuit impedance parameters (R and
  X) and not only the generator model parameters
• Saturation effects in the generator causes
  deviations between measurements and simulations
  (due to high current)
• AC current transformers saturated. Had to be
  replaced by DC current sensors
