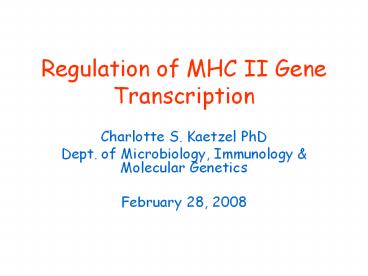

Regulation of MHC II Gene Transcription

• Charlotte S. Kaetzel PhD
• Dept. of Microbiology, Immunology Molecular
  Genetics
• February 28, 2008

2
MHC II Function

• Expressed by antigen-presenting cells (APCs)
• Heterodimer of a and b chains
• Binds small peptides
• Presents peptides to T cells

MHC II
TCR
3
Expression of MHC II Molecules

• Constitutive
• Professional APCs
• B cells
• Dendritic cells

• Inducible by IFN-g or LPS
• Many cell types
• Macrophages
• Epithelial cells
• Fibroblasts
• Others

Down-regulated in B cell ? plasma cell
differentiation
4
Organization of MHC II genes
Short arm of human chromosome 6
5
MHC II Gene Expression

• Heterodimers of a and b subunits
• Coordinate expression of multiple loci DR, DQ,
  DO, DM, DP
• Co-dominant expression of maternal and paternal
  alleles

6
The MHC II Promoter
Nekrep et al., Immunity 18453, 2003
7
Factors Recruited to MHC II Promoters

• Transcription factors that bind to conserved DNA
  elements
• RFX (trimer of RFXANK, RFX5 and RFXAP)
• CREB (cAMP response element binding protein)
• NF-Y (trimer of A, B and C subunits)
• OCAB (octamer binding protein)
• CIITA MHCII Transactivator acts as
  transcriptional integrator
• BRG1 Brahma-related gene 1 ATPase involved in
  remodeling nucleosome structure vertebrate
  homolog of yeast SWI/SNF
• CARM1 Histone methylase
• HAT histone acetyltransferase promotes open
  chromatin structure by acetylating core histones
  in nucleosomes
• Factors in pre-initiation complex (PIC) p-TEFb,
  TAFs, TBP, etc.
• RNAP II RNA polymerase II binds to Initiator
  element in MHC II promoter and catalyzes
  transcription elongation
• NOTE All of these proteins except CIITA are
  ubiquitously expressed

8
CIITA is a member of the CATERPILLAR family of
intracellular pattern recognition receptors
Nucleotide-binding domain
Leucine-rich repeats
Transactivation domain
Ting et al., Nat. Rev. Immunol. 6183, 2006
9
Model for regulation of subcellular distribution
of CIITA
NLS nuclear localization signal NES nuclear
export signal
Ravalet al., J. Immunol. 170922, 2003
10
Expression of CIITA Molecules

• Constitutive
• Professional APCs
• B cells
• Dendritic cells

• Inducible by IFN-g
• Many cell types
• Macrophages
• Epithelial cells
• Fibroblasts
• Others

11
Transcriptional Integration by CIITA
Wright Ting, Trends Immunol. 27405, 2006
12
Structure of the CIITA gene locus
p1
pIII
pIV
Wright Ting, Trends Immunol. 27405, 2006
13
Chromatin Remodeling
Zika and Ting, Curr. Opin. Immunol. 1758, 2005
14
Role of CIITA in Chromatin Remodeling
Zika and Ting, Curr. Opin. Immunol. 1758, 2005
15
Bare Lymphocyte Syndrome (BLS)

• Loss of constitutive and inducible expression of
  all MHC II genes
• Results in severe combined immunodeficiency
  because of loss of antigen recognition by T cells
• Mutations involve factors associated with MHC II
  transcription, NOT the MHC II genes themselves
• RFXANK
• RFX5
• RFXAP
• CIITA

16
METHODS
17
Electrophoretic Mobility Shift Assay (EMSA)

• In vitro assay of DNA-protein interactions
• Isolate protein extracts (nuclear or whole cell)
  from cultured cells or tissues following
  experimental treatment.
• Radiolabel short fragment of DNA or
  oligodeoxynucleotide containing a transcription
  factor binding site.
• Incubate labeled DNA with protein extract to
  allow protein-DNA binding.
• Separate protein-bound from unbound DNA by
  nondenaturating gel electrophoresis, and detect
  DNA by autoradiography. Protein-bound DNA will
  be shifted to a slower mobility than unbound
  DNA.
• Variation add an antibody against a specific
  transcription factor to the protein-DNA mix. The
  complex of antibody-protein-DNA will be shifted
  to a slower mobility than protein-DNA alone
  (supershift)

18
Chromatin Immunoprecipitation (ChIP)

• Used to measure binding of proteins to DNA in
  native chromatin
• Add formaldehyde to living cells to form
  DNA/protein and protein/protein crosslinks
• Lyse cells and sonicate chromatin to break it
  into fragments with an average length of 500-1000
  bp
• Immunoprecipitate chromatin fragments with
  antibody to protein of interest
• Heat precipitated chromatin to reverse
  protein-DNA crosslinks and digest with RNAse A
  and proteinase K to purify DNA
• Amplify immunoprecipitated DNA fragments by PCR
  using primers for promoter of interest
• Variation use real-time PCR (see next slide) for
  a more quantitative measure of immunoprecipitated
  DNA.

19
Reverse Transcriptase (RT)-PCR

• Used to measure steady-state levels of individual
  mRNAs
• Isolate total cellular RNA from cultured cells or
  tissues following experimental treatment
• Prepare complementary DNA (cDNA) by incubating
  RNA with random primers and reverse transcriptase
• Amplify transcript from gene of interest by PCR,
  using sequence-specific primers
• Real-time PCR uses fluorescent probes to
  analyze the level of amplified cDNA at each PCR
  cycle, and is more quantitative than end-point
  PCR, where the final amplified sample is analyzed
  by gel electrophoresis.
• For more information about real-time PCR, visit
  http//www.appliedbiosystems.com/support/tutorials
  /pdf/rtpcr_vs_tradpcr.pdf

20
Fluorescence-Activated Cell Sorting (FACS)

• Used to measure protein expression in intact
  cells
• For example, expression of the MHC II protein
  HLA-DR on the cell surface
• Intact cells are incubated with
  fluorescent-labeled antibodies
• Can measure multiple proteins on the same cell if
  you use different colors of fluorescent labels
• Cells are sorted by machine and analyzed
  individually
• Data are expressed as histograms with number of
  cells on the Y-axis and fluorescence
  intensity on the X-axis

Immunofluorescence Microscopy

• Used to analyze intracellular localization of
  proteins
• Similar to FACS, but cells are fixed and stained
  on aslide, then imaged with a standard or
  confocal fluorescence microscope

21
Immunoblot (Western Blot)

• Used to measure total protein expression in cells
  or tissues
• Cells or tissues are lysed in a denaturing
  buffer, and proteins are separated based on
  molecular weight by denaturing polyacrylamide gel
  electrophoresis (SDS-PAGE). Larger proteins will
  migrate more slowly in the gel.
• Separated proteins are transferred from the gel
  to a thin membrane of nylon or nitrocellulose
  (hence the term blot).
• Individual proteins bound to the membrane are
  visualized by specific antibodies labeled with an
  enzyme or fluorochrome. The intensity of the
  band is proportional to the level of the protein.
• Variation ectopically expressed proteins with an
  epitope tag (e.g., Flag or Myc) can be
  detected with an epitope-specific antibody.

22
Expression Vectors

• Can be introduced into cells as plasmid or virus
  vectors
• Can be transcribed/translated in vitro or
  introduced into living cells by transfection
• Can encode wild-type or mutant form of protein
• Proteins can be tagged with extra sequences,
  such as a Flag or Myc epitope

23
Transcription Reporter Plasmids

• Introduced into living cells by transfection
• Activity of reporter protein (e.g., luciferase,
  CAT) measured as an index of transcriptional
  activity
• Can be used to measure basal or inducible
  transcription
• Can encode wild-type or mutant form of promoter

24
CIITA Transactivation assay

• A fusion protein is constructed by inserting a
  GAL4-binding motif at the 5 end of the CIITA
  coding sequence.
• A GAL4-dependent luciferase reporter plasmid is
  constructed by inserting 5 GAL4 sites upstream of
  a weak promoter driving luciferase transcription.
• The GLA4CIITA expression plasmid and
  GAL4luciferase reporter plasmid are
  co-transfected into living cells.
• Inside the nucleus, the GAL4-binding motif of the
  fusion protein binds to the GAL4 sites on the
  reporter plasmid.
• The CIITA portion of the fusion protein
  transactivates the weak promoter.
• Luciferase activity is measured as an index of
  transcriptional activity
