Hot-and-Cold:

1

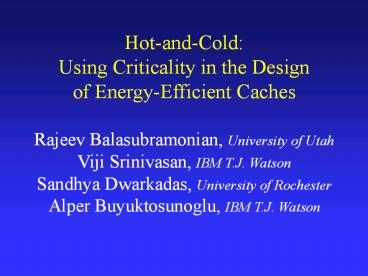

Hot-and-Cold Using Criticality in the Design of
Energy-Efficient Caches Rajeev Balasubramonian,
University of Utah Viji Srinivasan, IBM T.J.
Watson Sandhya Dwarkadas, University of
Rochester Alper Buyuktosunoglu, IBM T.J. Watson
2
All Instructions are not Created Equal

• Critical instructions lie on the program
  critical path
• Non-critical instructions can be slowed without
• increasing execution time
• Potential to improve cache performance (?)
• Srinivasan 01 Fisk 99
• Prioritization policies Fields 01 Tune 01
• Energy-efficient ALUs Seng 01

3
Energy-Delay Trade-Offs

• Example energy-delay trade-off techniques
• Voltage scaling, transistor sizing, way
• prediction, serial-access
• Gated-ground cells, high Vt

Transistor sizing
Variable threshold voltage
Vt Normalized Leakage Normalized Delay
Low 8.5 0.88
Nominal 1 1
High 0.23 1.34
4
Exploiting Criticality

• Design two static banks
• hot bank fast and high power
• cold bank slow and low power
• Instructions have to be classified as critical
  or not
• and
• Data has to be placed in one of two banks
• Energy-efficient ALUs are easier to handle as
  there is no
• associated storage

5
Criticality Metric

• Oldest-N The N oldest instructions in the queue
• are critical
• Younger instructions are likely to be on
• mispredicted paths or can tolerate latencies
• N can be varied based on program needs
• Minimal hardware overhead
• Behavior comparable to more complex metrics

6
Instruction Classification
7
Data Classification
Exclusively critical
Exclusively non-critical
8
Hot-and-Cold Microarchitecture
Dispatch
Bank Predictor
Issue Queue
Cold bank
Criticality Counters
Hot bank
Placement Predictor
L2
9
Performance Results
10
Energy Results
11
Results Summary

• Bank mispredict rate of 9.5
• Criticality mismatch rate of 26
• Performance loss 2.7 (data reorganization)
• (0.8 x
  slowdown)
• L1 cache energy savings of 37

12
Related Work

• Recent split-cache organization by Abella and
• Gonzalez ICCD03

Base
Slow
Fast

• Data allocation based on criticality of
  accessing
• instruction

13
Conclusions

• Data and instruction classification is
  reasonably
• accurate
• Overhead from contention is non-trivial
• Results are worthwhile in limited settings
• The use of criticality for data cache
  reorganization
• yields little benefit
