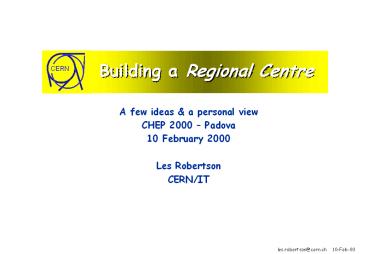

Building a Regional Centre

1
Building a Regional Centre

• A few ideas a personal view
• CHEP 2000 Padova
• 10 February 2000
• Les Robertson
• CERN/IT

2
Summary

• LHC regional computing centre topology
• Some capacity and performance parameters
• From components to computing fabrics
• Remarks about regional centres
• Policies sociology
• Conclusions

3
Why Regional Centres?

• Bring computing facilities closer to home
• final analysis on a compact cluster in the
  physics department
• Exploit established computing expertise
  infrastructure
• Reduce dependence on links to CERN
• full ESD available nearby - through a fat, fast,
  reliable network link
• Tap funding sources not otherwise available to
  HEP
• Devolve control over resource allocation
• national interests?
• regional interests?
• at the expense of physics interests?

4
The MONARC RC Topology
CERN Tier 0

• University physics department
• Final analysis
• Dedicated to local users
• Limited data capacity cached only via the
  network
• Zero administration costs (fully automated)

• Tier 0 CERN
• Data recording, reconstruction, 20 analysis
• Full data sets on permanent mass storage
  raw, ESD, simulated data
• Hefty WAN capability
• Range of export-import media
• 24 X 7 availability

• Tier 1 established data centre or new
  facility hosted by a lab
• Major subset of data all/most of the ESD,
  selected raw data
• Mass storage, managed data operation
• ESD analysis, AOD generation, major analysis
  capacity
• Fat pipe to CERN
• High availability
• User consultancy Library Collaboration
  Software support

• Tier 2 smaller labs, smaller countries,
  probably hosted by existing data centre
• Mainly AOD analysis
• Data cached from Tier 1, Tier 0 centres
• No mass storage management
• Minimal staffing costs

MONARC report http//home.cern.ch/barone/monarc/
RCArchitecture.html
5
The MONARC RC Topology
CERN Tier 0
IN2P3
RAL
FNAL
Tier 1
Uni n
Lab a
Tier2
Uni b
Lab c
?
?
Department
?
MONARC report http//home.cern.ch/barone/monarc/
RCArchitecture.html
6
More realistically - a Grid Topology
CERN Tier 0
IN2P3
DHL
RAL
FNAL
Tier 1
Uni n
Lab a
Tier2
Uni b
Lab c
?
?
Department
?
7
Capacity / Performance
Based on CMS/Monarc estimates (early 1999) Rounded, extended and adapted by LMR CERNCMS or ATLAS CERNCMS or ATLAS Tier 11 expt. Tier 12 expts.
Based on CMS/Monarc estimates (early 1999) Rounded, extended and adapted by LMR Capacity in 2006 Annual increase Capacity in 2006
CPU (K SPECint95) 600 200 120 240
Disk (TB) 550 200 110 220
Tape (PB) (including copies at CERN) 3.4 2 0.4 lt1
I/O rates disk (GB/sec) tape (MB/sec) 50400 1050 20100
WAN bandwidth Gbps 2.5 2.5
all CERN today 15K SI95 25 TB 100
MB/sec
20 CERN
1 SPECint95 10 CERNunits 40 MIPS
8
Capacity / Performance
Based on CMS/Monarc estimates (early 1999) Rounded, extended and adapted by LMR Tier 12 expts. Tier 12 expts.
Based on CMS/Monarc estimates (early 1999) Rounded, extended and adapted by LMR Capacity in 2006
CPU (K SPECint95) 240 1200 cpus600 boxes
Disk (TB) 220 At least 2400 disks? 100 GB/disk (only!)
Tape (PB) (including copies at CERN) lt1
I/O rates disk (GB/sec) tape (MB/sec) 20100 40 MB/sec/cpu20 MB/sec/disk
WAN bandwidth Gbps 2.5 300 MB/sec
Approx. Number of farm PCs at CERN today
May not find disks as small as that! But we need
a high disk count for access, performance,
RAID/mirroring, etc.
We probably have to buy more disks, larger
disks, use the disks that come with the PCs?
much more disk space
Effective throughput of LAN backbone
1.5 of LAN
9
Building a Regional Centre

• Commodity components are just fine for HEP
• Masses of experience with inexpensive farms
• LAN technology is going the right way
• Inexpensive high performance PC attachments
• Compatible with hefty backbone switches
• Good ideas for improving automated operation and
  management

10
Evolution of todays analysis farms

• Computing Storage Fabric
• built up from commodity components
• Simple PCs
• Inexpensive network-attached disk
• Standard network interface (whatever Ethernet
  happens to be in 2006)
• with a minimum of high(er)-end components
• LAN backbone
• WAN connection

11
Standard components

• Computing Storage Fabric
• built up from commodity components
• Simple PCs
• Inexpensive network-attached disk
• Standard network interface (whatever Ethernet
  happens to be in 2006)
• with a minimum of high(er)-end components
• LAN backbone
• WAN connection

12
HEPs not special, just more cost conscious

• Computing Storage Fabric
• built up from commodity components
• Simple PCs
• Inexpensive network-attached disk
• Standard network interface (whatever Ethernet
  happens to be in 2006)
• with a minimum of high(er)-end components
• LAN backbone
• WAN connection

13
Limit the role of high end equipment

• Computing Storage Fabric
• built up from commodity components
• Simple PCs
• Inexpensive network-attached disk
• Standard network interface (whatever Ethernet
  happens to be in 2006)
• with a minimum of high(er)-end components
• LAN backbone WAN
  connection

14
Components ? building blocks
36 dual 200 SI95 cpus 14K SI95s 100K
224 3.5 disks 25-100 TB 50K - 200K
2000 standard office equipment 36 dual cpus
900 SI95 120 72GB disks 9 TB
2005 standard, cost-optimised, Internet
warehouse equipment
For capacity cost estimates see the 1999 Pasta
Report http//nicewww.cern.ch/les/pasta/welcome.
html
15
The Physics Department System

• Two 19 racks 200K
• CPU 14K SI95 (10 of a Tier1 centre)
• Disk 50TB (50 of a Tier1 centre)
• Rather comfortable analysis machine
• ?
• Small Regional Centres are not going to be
  competitive
• Need to rethink the storage capacity at the Tier1
  centres

16
Tier 1, Tier 2 RCs, CERN

• A few general remarks
• A major motivation for the RCs is that we are
  hard pressed to finance the scale of computing
  needed for LHC
• We need to start now to work together towards
  minimising costs
• Standardisation among experiments, regional
  centres, CERN
• so that we can use the same tools and practices
  to
• Automate everything
• Operation monitoring
• Disk data management
• Work scheduling
• Data export/import (prefer the network to mail)
• in order to
• Minimise operation, staffing
• Trade off mass storage for disk network
  bandwidth
• Acquire contingency capacity rather than fighting
  bottlenecks
• Outsource what you can (at a sensible price)
• .

Keep it simple Work together
17
The middleware

• The issues are
• integration of this amorphous collection of
  Regional Centres
• Data
• Workload
• Network performance
• application monitoring
• quality of data analysis service
• Leverage the Grid developments
• Extending Meta-computing to Mass-computing
• Emphasis on data management caching
• and production reliability quality

Keep it simple Work together
18
A 2-experiment Tier 1 Centre
Requirement 240K SI95 220 TB
Basic equipment 3m
cpus/disks
Processors 20 standard racks 1,440 cpus ?
280K SI95 Disks 12 standard racks 2,688
disks ? 300TB (with low capacity disks)
19
The full costs?

• Space
• Power, cooling
• Software
• LAN
• Replacement/Expansion 30 per year
• Mass storage
• People

20
mass storage ?

• Do all Tier 1 centres really need a full mass
  storage operation?
• Tapes, robots, storage management software?
• Need support for export/import media
• But think hard before getting into mass storage
• Rather
• more disks, bigger disks, mirrored disks
• cache data across the network from another
  centre (that is willing to tolerate the stresses
  of mass storage management)
• Mass storage is person-power intensive ? long
  term costs

21
Consider outsourcing

• Massive growth in co-location centres, ISP
  warehouses, ASPs, storage renters, etc.
• Level 3, Intel, Hot Office, Network Storage Inc,
  PSI, .
• There will probably be one near you
• Check it out compare costs prices
• Maybe personnel savings can be made

22
Policies sociology

• Access policy?
• Collaboration-wide? or restricted access
  (regional, national, .)
• A rich source of unnecessary complexity
• Data distribution policies
• Analysis models
• Monarc work will help to plan the centres
• But the real analysis models will evolve when the
  data arrives
• Keep everything flexible
• simple architecture
• - simple policies
• - minimal politics

23
Concluding remarks I

• Lots of experience with farms of inexpensive
  components
• We need to scale them up lots of work but we
  think we understand it
• But we have to learn how to integrate distributed
  farms into a coherent analysis facility
• Leverage other developments
• But we need to learn through practice and
  experience
• Retain a healthy scepticism for scalability
  theories
• Check it all out on a realistically sized testbed

24
Concluding remarks II

• Dont get hung up on optimising component
  costsDo be very careful with head-count
• Personnel costs will probably dominate
• Define clear objectives for the centre
• Efficiency, capacity, quality
• Think hard if you really need mass storage
• Discourage empires egos
• Encourage collaboration out-sourcing
• In fact maybe we can just buy all this as an
  Internet service
