The Go-Go Gadget Gantry

1

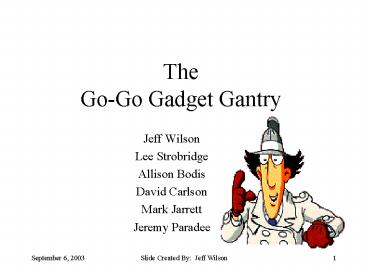

TheGo-Go Gadget Gantry

• Jeff Wilson
• Lee Strobridge
• Allison Bodis
• David Carlson
• Mark Jarrett
• Jeremy Paradee

2
Problem Statement

• To Develop an automated system that
  satisfactorily plots text on various sizes of
  poster board
• Input is ASCII file (.txt) 100 bytes max
• Must complete in 8 weeks

3
Our Solution

• X-Y Gantry mounted on movable carriage
• Carriage moves in X-Y directions on paper
• Writes with Sharpie or another replaceable
  permanent marker

4
System Overview
YARD SALE SIGN
5
Functionality Levels

• Single Stroke Block Letters
• 1 Size Letters
• Goal of 20-30 Seconds Per Letter

6
Management Strategy

• Separate Driving And Drawing Subsystems
• Assign Team Members to Research Topics In Week 3
• Feasibility Tests of Possible Sub-Systems In Week
  3-4
