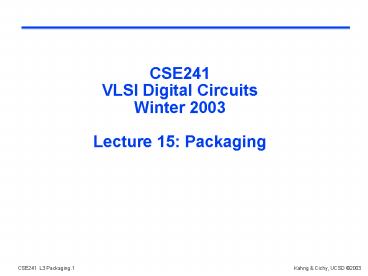

CSE241 VLSI Digital Circuits Winter 2003 Lecture 15: Packaging

1
CSE241VLSI Digital CircuitsWinter 2003Lecture
15 Packaging
2
Topics

• Packaging
• IO
• Pads
• Bumps
• Area vs. peripheral IO

3
Packaging Styles

• Popular
• Flip-chip
• BGA
• TSOP
• Package Materials
• Ceramic
• Plastic

4
Die Connections

• Pads
• Logic devices Around periphery of die
• 1 row 70µ pitch
• 2 rows 40-50µ staggered pitch
• Memory (DRAM) in a line at center of die
• 1 row 100-150µ pitch

5
Flip-chip

• Entire surface of die can be covered with bonding
  sites
• Placed on 250µ centers
• Small balls (bumps) added at wafer level
• Chip flipped over and connected to package
• Substrate is at top of package

Slide courtesy of Stanford
6
Package Styles

• Logic
• BGA
• Ball Grid Array
• QFP
• Quad Flat Pack
• Memory
• TSOP
• Thin Small Outline Package
• CSP
• Chip Scale Package

7
Other Packages Types
PFM Plastic Flange Mount Pkg PLCC Plastic Leaded
Chip Carrier PPGA Plastic Pin Grid Array QFP
Quad Flat Pkg. SDIP Shrink Dual-I-Line Pkg SIP
Single-In-Line Pkg. SOJ J-Leaded Small-Outline
Pkg SOP Small-Outline Pkg Triple Flat PackTO/SOT
Cylindrical Pkg TSOP Thin Small-Outline Pkg.
TSSOP Thin Shrink Small-Outline Pkg VFLGA Thin
Very-Fine Land Grid Array TVSOP Very Thin
Small-Outline Pkg VQFP Very Thin Quad Flat Pkg
VSOP Very Small Outline Pkg

• CDIP Ceramic Dual In-Line Pkg
• SB Side-Braze
• CPGA Ceramic Pin Grid Array
• CZIP Ceramic Zig-Zag Pkg
• DFP Dual Flat Pkg
• HLQFP Thermally Enhanced Low Profile
• LCC J-Leaded Ceramic or Metal Chip Carrier
• LCCC Leadless Ceramic Chip Carrier
• LGA Land Grid Array
• LPCC Leadless Plastic Chip Carrier
• LQFP Low Profile Quad Flat Pack
• MCM Multi-Chip Module
• MQFP Metal Quad Flat Pkg
• PDIP Plastic Dual-In-Line Pkg

8
Ball Grid Array
Pin Counts Clock Frequency 450 2116
2.5GHz 352 800 150MHz 352 700
800MHz 256 500 250MHz 256 420
150MHz 40 460 500MHz

• FC-BGA
• TAB-BGA
• EBGA
• FDH-BGA
• PBGA
• FBGA

Slide courtesy of Fujitsu
9
TSOP

• Thin Small Outline Package (TSOP)
• Most popular DRAM package
• Very cheap
• Wires bond to lead frame
• Bond pads sometimes at center of die
• Leaded surface mount

Photo courtesy of Stanford
10
BGA

• Ball Grid Array
• Most popular ASIC package
• Basically a small printed circuit board
• Multiple planes available in package
• Possible to route larger numbers of signals
• Better signal integrity

Photo courtesy of Stanford
11
QFP

• Wire Bond package
• Leads are coplanar fanning into die
• Higher coupling

Photo courtesy of Fujitsu
12
Packaging Trends

• Memory
• Stacked die
• Higher density (3-D scaling)
• Still uses same inexpensive die
• Logic

13
I/Os

• I/O Drivers
• I/O driver design is always challenging
• Backwards compatibility a key problem
• Core Supply voltages changing
• Older devices will have larger swings than new
  ones
• Old TTL level
• Modern 1.5v, 2.0v
• Bandwidth requirements increasing
• Need to have more pins or higher bandwidth per
  pin or both
• Memory interface widths
• Encryption keys

14
I/O Pads

• Traditional
• Pads at periphery
• Flip-chip
• Pads anywhere on die
• ESD
• Provide Esd protection to die
• Human model
• Models capacitive discharge from handling

15
Pads Types

• Generic
• Input/output
• Bi-directional
• Tri-state
• Analog
• Differential
• Memory
• Bi-directional
• High-speed
• gt1Ghz
• High-voltage
• gt5v

16
Bumps

• Flip-chip
• Power (Vdd/Vss)
• Signals
• Advantages
• Signals
• Are locally fed
• Reduces skew
• Reduces delay of pushing to chip boundary
• Power
• Local power
• Multiple Vdd sources
• Different Vdd
