CONFIDENTIALY USING CONVENTIONAL ENCRYPTION

1

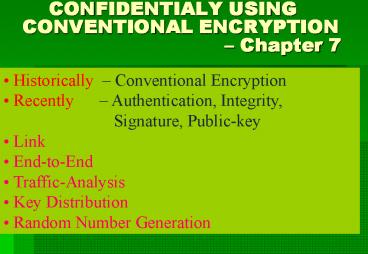

CONFIDENTIALY USING CONVENTIONAL
ENCRYPTION
Chapter 7

• Historically Conventional Encryption
• Recently Authentication, Integrity,
  Signature, Public-key
• Link
• End-to-End
• Traffic-Analysis
• Key Distribution
• Random Number Generation

2
Points of Vulnerability
3
Link / End-to-End
4
Confidentiality

• Link
• - both ends of link
• - many encryps / decryps - all links
  use it
• - decrypt at packet switch (read
  addr.)
• - unique key / node pair
• End- to-End
• - only at ends
• - data encrypted, not address
  (header)
• - one key pair
• - traffic pattern insecure
• - authentication from sender

5
Characteristics of Link and End-to-End
Table 7.1
6
Both Link and End-to-End

• - Data secure at nodes
• - Authentication
• LINK low level
  (physical/link)
• END-TO-END network (X.25)
• ? End0
• ? End1
  (ends separately
• ? End2
  protected)

7
Front-End Processor Function
8
E-mail Gateway
9
E-mail Gateway

• OSI ?? email gateway ?? TCP
• no end-to-end protocol below appl. layer
• networks terminate at mail gateway
• mail gateway sets up new transport/network
•
  connections
• need end-to-end encryp. at appl. Layer
• - disadvantage many keys

10
Various Encryption Strategies
11
Traffic Confidentiality

• Identities
• Message Frequency
• Message Pattern
• Event Correlation
• Covert Channel
• Link
• Headers encrypted
• Traffic padding (Fig 7.6)
• End-to-End
• Pad data
• Null messages

12
Traffic Padding
13
KEY DISTRIBUTION

• Physically deliver
• Third party physically select/deliver
• EKold(Knew) ?
• 4. End-to-End(KDC)
• A EKA(Knew) ? C
  ?EKB(Knew) B
• N hosts ? (N)choose(2) keys Fig 7.7
• KDC Key hierarchy Fig 7.8
• Session Key temporary end
  ? end
• Only N master keys physical delivery

14
End-to-End Keys
15
Key Hierarchy
16
KEY DISTRIBUTION SCENARIO
17
KEY DISTRIBUTION
User shares Master Key with KDC Steps 1-3
Key Distribution Steps 3,4,5 Authentication
18
Key Distribution Centre (KDC)
Hierarchy
LOCAL KDCs
KDCX KDCA KDCB
A
B Key selected by KDCA, KDCB, or KDCX
19
LIFETIME
Shorter Lifetime ? Highter Security ?
Reduced Capacity Connection-oriented
- change session key
periodically Connectionless
- new key every exchange
or transactions or after time
period
20
Key Distribution (connection-oriented)
End-to-End (X.25,TCP), FEP obtains session keys
21
Decentralised Key Control
Not practical for large networks - avoids
trusted third party
22
KEY USAGE
key types Data, PIN, File key tags
Session/Master/Encryp/Decryp Control
Vector associate session key with control
vector (Fig 7.12)
23
Control Vector Encryp. and Decryp.
24
PRNG From Counter
25
ANSI X9.17 PRNG
26
Random Number Generation

• Linear Congruential Generator
• Xn1 (aXn c) mod m
• Encryption DES (OFB) (Fig 7.14)
• Blum Blum Shub (BBS)
• X0 s2 mod n
• for i 1 to infinity
• Xi (Xi-1)2 mod n
• Bi Xi mod 2
