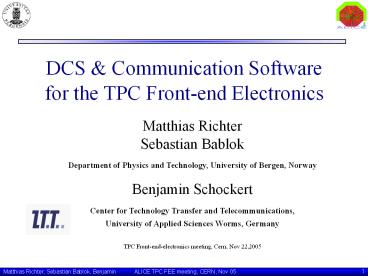

DCS Communication Softwarefor the TPC
Front-end Electronics
Matthias Richter Sebastian Bablok Department of
Physics and Technology, University of Bergen,
Norway Benjamin Schockert Center for Technology
Transfer and Telecommunications, University of
Applied Sciences Worms, Germany TPC
Front-end-electronics meeting, Cern, Nov 22,2005
2
Software architecture
Supervisory Layer
Load configuration data from file OR
database
Front-End Device Interface (FED)
Config. File
Control Layer
Config. DB
Front-End Electronics Interface (FEE)
Field Layer
Internal Bus Systems
3
Status of the components
Component Status Comments
FED API defined - prototyped final specifications of the FED API have been defined in Oct 05 - will be published soon implementation in FedServer module of InterComLayer in progress
    final specifications of the FED API have been defined in Oct 05 - will be published soon implementation in FedServer module of InterComLayer in progress
    final specifications of the FED API have been defined in Oct 05 - will be published soon implementation in FedServer module of InterComLayer in progress
    final specifications of the FED API have been defined in Oct 05 - will be published soon implementation in FedServer module of InterComLayer in progress
InterComLayer mostly functional communication with FeeServer fully implemented, Data base access module and FedServer module prototyped
    communication with FeeServer fully implemented, Data base access module and FedServer module prototyped
    communication with FeeServer fully implemented, Data base access module and FedServer module prototyped
Data base API prototype discussion about database- and content structure ongoing
    discussion about database- and content structure ongoing
FEE API fully functional implemented in FeeServer core and FeeClient module of InterComLayer
    implemented in FeeServer core and FeeClient module of InterComLayer
FeeServer core fully functional version 0.7.3 stable running

FeeServer-ControlEngine fully functional exports services for Temp, Voltages, and currents for each FEC commands defined and implemented
    exports services for Temp, Voltages, and currents for each FEC commands defined and implemented
    exports services for Temp, Voltages, and currents for each FEC commands defined and implemented
4
Configuration Data Encoding

• CE provides 2 alternative formats of
  Configuration Data
• Usage of CE Command Set to write to RCU memory
• Each single operation corresponds to one DIM
  command
• Low performance, but flexibility for development
• But multiple operations can also be stacked into
  one DIM transaction if desired
• Message Buffer Format (data exchange interface
  between DCS board and RCU previously presented,
  see talk TPC FEE meeting Jan 05)
• allows to encode multiple operations into one
  command block even on the level of data exchange
  between DCS board and RCU
• 2 alternative ways of data archiving
• As BLOBs
• Archiving of individual parameters and data
  preparation on-the-fly

5
Next steps

• Data base interface Specifications discussed
  with the DCS group implementation ongoing
• File access as fall back solution available
• performance tests of data base access
• FedAPI implementation in progress
• PVSS InterComLayer communication using the
  FedAPI
• Handling of States for RCU and FECs in the
  FeeServer ControlEngine
• Optimization

2005 2006
2007
I. II. III. V.
IV. VI.
6
Open issues

• Data base structure and structure of config data
  has to be defined
• Creation, Handling, Archiving
• communication ControlEngine Monitoring and
  Safety Module (MSM) data publishing fully
  functional but sophisticated error
  handling/notification scheme necessary
• mass tests and scaling of behaviour with 216 DCS
  board nodes connect to the InterComLayer

7
Documentation and Download

• http//www.ift.uib.no/kjeks/wiki
• General Overview
• Download (Source code packages, programs for the
  DCS board)
• CE command specification
• CE service specification
• Setup recipe
• FAQ
• Source code and documentation of FeeServer core
  and InterComLayer https//www.ztt.fh-worms.de/dow
  nload/alice
• anyway drop an email to us if there is something
  mysterious with the software or you couldn't find
  what you want
• Matthias.Richter_at_ift.uib.no, Sebastian.Bablok_at_ift.
  uib.no,Schockert_at_ztt.fh-worms.de

8
Components and APIs
PVSS FED Client
FEE ROOT Debug GUI (ROOT framework)
FEE ROOT Client
USB connector
FEE Client
FED Client
FED API(DIM)
U2F API
FED API(DIM)
FEE API(DIM)
Configuration Database
DB API
FEE API(DIM)
RCU (Motherboard)
CE-RCU API
FEE-CE API
DCS board
