Multiple Regression Analysis

1

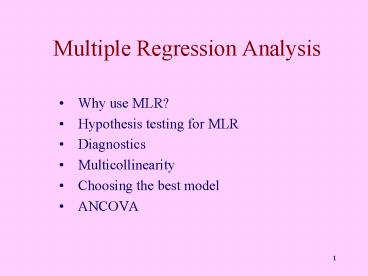

Multiple Regression Analysis

• Why use MLR?
• Hypothesis testing for MLR
• Diagnostics
• Multicollinearity
• Choosing the best model
• ANCOVA

2
Multiple Linear Regression

• Extension of simple linear regression to the case
  where there are several explanatory variables.
• The goal is to explain as much as possible the
  variation observed in the response (y) variable,
  leaving as little variation as possible to
  unexplained noise.
• As in simple linear regression, multiple linear
  regression equations can be obtained by OLS fit
  or by other methods such as LMS, GLS, etc,
  depending on the situation.
• As multiple OLS linear regression is the most
  common curve fitting technique, we will only
  concentrate on procedures for developing a good
  multiple OLS linear regression model, and on how
  to deal with common problems such as
  multicollinearity.

3

• As MLR is a complex subject, hand calculation is
  inadvisable when p is greater than 2 or 3 because
  of the amount of the work involved.
• The complexity involves
• determining how many and which variables to use,
  including the form of each variable (such as
  linear of nonlinear),
• interpreting the results, especially the
  regression coefficients, and
• determining whether an alternative to OLS should
  be used.

4
Why Use MLR?

• Scientific knowledge and experience usually tell
  us so.
• Residuals from SLR may indicate that additional
  explanatory variables are required. E.g.
  residuals show there is a temporal trend
  (suggesting time as an additional explanatory
  variable).

5
MLR Model

• The MLR model will be denoted
• This can be written in matrix notation as
• For n observations and 2 explanatory variables X1
  and X2

6
Specifically,
7
ij

• Where Xij denotes the ith observation on the jth
  explanatory variable. Thus,
• As with SLR, OLS stipulates that the sum of the
  squared residuals must be minimized. For the
  above model,

8

• And differentiation of the RHS of the equation
  with respect to ?0, ?1, and ?2 (separately)
  produces 3 equations in the 3 unknown parameters.
• The 3 equations are called normal equations and
  they can be written in matrix notation as
• the solution for which is
• The XX matrix is a (k1) x (k1) symmetric
  matrix whose diagonal elements are the sum of
  squares of the elements in columns of the X
  matrix, and whose off diagonal elements are sums
  of cross products of elements in the same columns.

9

• The nature of XX plays an important role in the
  properties of the estimators in ? and will often
  be a large factor in the success ( of failure) of
  OLS as an estimation procedure.

10
Hypothesis Tests for MLRNested F Tests

• F test is the single most important hypothesis
  test for comparing any two nested models. A
  complex model vs. a simpler model which is a
  subset of the complex model. The test statistic
  is

11

• Complex model has (m 1) parameters and df n -
  (m1)
• Simple model has (k 1) parameters and df n -
  (k1)
• If F gt F(tab) with (dfc - dfs) and dfc degrees of
  freedom for selected ?1, then H0 is rejected.
  Rejection indicates that the more complex model
  should be chosen in preference of the simpler
  model and vice versa.

12
Overall F test

• This is a special case of the nested F-test. It
  is of limited use. It test only whether the
  complex regression equation is better than no
  regression at all. Of much greater interest is
  which of several regression models is best.

13
Partial F test

• Second special case of the nested F tests. The
  partial F test evaluates whether the nth variable
  adds any new explanatory power to the equation,
  and ought to be in the regression model, given
  that all the other variables are already present.
• F value (Minitab use t) on a coefficient will
  change depending on what other variables are in
  the model.
• Cannot answer Does variable m belong in the
  model?
• Can only answer Whether m belongs in the model
  in the presence of the other variables.

14

• If every t gt 2 for each coefficient, then it is
  clear that every explanatory variable is
  accounting for a significant amount of variation,
  and all should be present.
• When one or more of the coefficients has a t lt
  2, some of the variables should be removed from
  the equation, but t values are not a certain
  guide as to which ones to remove.
• Partial t or F test are used to make automatic
  decisions for removal or inclusion in stepwise
  multiple regression.
• These automatic procedures do not guarantee that
  some best model is obtained. Better procedures
  are available for doing so.

15
Confidence Intervals

• CI can be computed for all ?s and for the mean
  response Y at a given value for all explanatory
  variables. PI can be similarly computed around
  an individual estimate of Y. Need to use matrix
  notations for these.

16
Variance-Covariance Matrix

• In MLR, the variance-covariance matrix is
  computed form
• Elements of the X prime X inverse matrix for 3
  explanatory variables are

17

• When multiplied by the error variance (estimated
  by the variance of the residuals, s2 ), the
  diagonal elements of the matrix C00 through C33
  become the variances of the regression
  coefficients, off-diagonals are covariances
  between coefficients.

18
Confidence Intervals For Slope Coefficients

• If the residuals are normally distributed with
  variance ?2, a 100(1-?) Cl on ?j is
• where Cjj is the diagonal element of the (XX)-1
  corresponding to the jth explanatory variable.
  Often printed is the SE of the regression
  coefficient

19
Note

• Cjj is a function of the other explanatory
  variables as well as the jth. Therefore CIs
  will change as explanatory variables are added to
  or deleted from the model.

20
Conficence Intervals for the Mean Response

• A 100(1-?) Cl for the mean response ?(Y0) for a
  given point in multidimensional space X0 is
  symmetric around the regression estimate Y0.
  These intervals also require the assumption of
  normality of residuals
• The variance of the mean is the term under the
  square root sign. It changes with X0, increasing
  as X0 moves away from the multidimensional center
  of the data. In fact the term X0 (XX)-1X0 is
  the leverage statistic hi, expressing the
  distance that X0 is from the center of the data.

21
Prediction Intervals for an individual Y

• A 100(1-?) PI for a single response Y0, given a
  point in multidimensional space X0 is symmetric
  around the regression estimate Y0. It also
  requires the assumption of normality of the
  residuals.
• Notice the addition of a 1 in the square
  brackets. This reflects the additional variance
  for an individual point.

22
MLR Diagnostics

• As with SLR, it is very important to use
  graphical tools to diagnose deficiences in MLR.
  The following residuals plots are very important
• normal probability plots of residuals
• residuals vs. predicted values (to identify
  curvature or heteroscedasticity)
• residuals vs. time sequence or location (to
  identify trends)
• residuals vs. any candidate or explanatory
  variables not in the model (to identify
  variables, or appropriate transformations of
  them, which may be used to improve the model fit)

23
Leverage and influence

• Regression diagnostics are much more important in
  MLR.
• Very difficult to recognize points of high
  leverage or high influence for any set of plots.
• One observation may not be exceptional in terms
  of each of its explanatory variables taken one at
  a time, but viewed in combination it can be very
  exceptional.
• Numerical diagnostics can accurately detect such
  anomalies.

24
Leverage Statistics

• The leverage statistic hi expresses the distance
  of a given point X0 from the center of the sample
  observations. It has 2 important uses in MLR
• identify points unusual in value of the X
  variables (possible errors, poor model,
  nonlinearity, etc.)
• making predictions. The leverage value for a
  prediction should not exceed the largest hj in
  the original data set.
• (Regression model may not fit well beyond the
  largest hj even though the X0s may not be beyond
  the bounds of any of its individual explanatory
  variables).
• Critical hj 3p/n

25
Influence statistic

• DFFITS is the measure of influence as defined
  earlier
• Example on the use of DFFITS and hi
• True model C 30 0.5D ?
• Data given DE (distance east), DN (distance
  north)
• D (well depth), C(conc).
• Any acceptable model should closely reproduce
  true model, and should find C to be independent
  of DE and DN.

26

• Critical hi 3p/n 0.6, Critical DFFITS
  0.9

27
(No Transcript)
28
(No Transcript)
29
Multicollinearity

• Very important for users of MLR to understand
  causes and consequences of multicollinearity.
• Multicollinearity is the condition where at least
  one explanatory variable is closely related to
  one or more other explanatory variables.
• Consequences
• Overall F test okay but slopes coefficients
  unrealistically large, and t-tests are
  insignificant.
• Coefficients unrealistic in sigh. Occurs when 2
  variables describing approximately the same thing
  are counter-balancing each other in the equation,
  having opposite signs.
• Slope coefficients are unstable. Small change in
  one or a few values could cause large change in
  the coefficients.
• Automatic procedures e.g. stepwise, forwards and
  backwards methods produce different models.

30
Diagnosing Multicollinearity

• An excellent and simple measure of
  multicollinearity is the variance inflation
  factor (VIF). For variable j the VIF is
• Where Rj2 is the R2 from a regression of the jth
  explanatory variable on all the other explanatory
  variables - the equation used for adjustment of
  Xj in partial plots.
• The ideal VIFj is 1, corresponding to Rj2 0.
  Serious problems are indicated when VIFj gt 10
  (Rj2 0.9).
• The VIF is a measure of how multicollinearity
  inflates the width of the CI for the jth
  regression coefficient by the amount
  compared to what it would be with a perfectly
  independent set of explanatory variables.
• The average VIF for the model can also be used.

31
Solutions for multicollinearity

• 1. Center the data. This will work in some
  cases. E.g. polynomial type regression. This
  will not work in the explanatory variables are
  not derived from one another.
• 2. Eliminate variables. Eliminate the one
  explanatory variable with the highest VIF first.
  Redo regression and recalculate VIFs.
• 3. Collect additional data. Collect data that
  will counteract the multicollinearity.
• 4. Perform ridge regression. This will give
  biased but more stable estimates of slopes-
  method in selecting the biasing factor is
  subjective. (Not available in most popular
  software).

32
Choosing the Best MLR Model

• Major issue in MLR. Tradeoff between explaining
  more variance and reducing degrees of freedom
  which leads to increasing CI.
• Remember - R2 will always increase no matter what
  Xs are added in the model ( including random
  numbers!!)
• Objective Find the model that explains the most
  variance with the fewest number of explanatory
  variables.

33
General Principles

• 1. Xj must have some effect on Y and makes
  physical sense.
• 2. Add variable only if it makes significant
  improvement in the model.
• 3. Model must fulfill assumptions of MLR.

34
Selecting VariablesStepwise procedures.

• Automatic model selection method. Done by the
  computer using preset criteria. 3 versions
  available forwards, backwards, and stepwise.
  These procedures use a sequence of partial F or
  t-tests to evaluate the significance of a
  variable. The 3 versions do not always agree on
  the best model. Only one variable is added or
  removed at a time.
• None of the 3 versions test for all possible
  regression. This is a major drawback. Also,
  each explanatory variable is assumed to be
  independent of the others. Thus, these
  procedures are hopeless for multicollinear data.
• Use of automatic procedures are no longer in
  vogue. There are better procedures now.

35
Overall Measures of Quality

• 3 newer statistics can be used to evaluate each
  of the 2k regression equations possible from k
  candidate explanatory variables.
• 1. Mallows Cp
• 2. PRESS statistics (jacknife type procedure).
• 3. Adjusted R2

36
Mallows Cp

• Designed to achieve a good compromise between
  explaining as much variance in Y as possible and
  to minimize SE by keeping the number of
  coefficients small.
• Where n no. of observations, p no. of
  parameters (k1), sp2 MSE of this p
  coefficient model, ?2 minimum MSE among 2k
  possible models.
• Best model is the one with the lowest Cp value.
  When several models have nearly equal Cp values,
  then compare in terms of reasonableness,
  multicollinearity, importance of high influence
  points, and cost in order to select the model
  with the best overall properties.

37
PRESS statistic

• PRESS prediction error, e(i), sum squares. By
  minimizing PRESS, the model with the least error
  in the prediction of future observations is
  selected.

38
Adjusted R2

• This is an R2 value adjusted for the number of
  explanatory variables (df) in the model. The
  model with the highest adj. R2 is identical to
  the one with the smallest MSE. Comparing R2 with
  adj. R2 ,
• Overall methods requires more computations but
  more flexibility in choosing between models.
  Stepwise method may miss the best models.
• E.g. 2 best models may be nearly identical in
  terms of Cp, adj. R2 and/or PRESS statistics, yet
  one involves variables that are much more less
  expensive to measure than the other.

39
Analysis of Covariance (ANCOVA)

• Regression analysis with grouped or qualitative
  variables e.g. site, day/night, male/female,
  before/after, summer/fall/winter/spring, etc.
• They can be incorporated in a MLR analysis using
  indicator or dummy variables.
• Very important class of regression models in
  environmental monitoring - point source pollution
  - gradient sampling design. Is there attenuation
  with distance from year to year?

ANCOVA Regression ANOVA
40
Use of One Binary Variable

• To the SLR model
• an additional factor e.g. season (winter vs.
  summer) may be an important influence on Y for
  any given value of X
• To incorporate the new factor to represent the
  season, define a new variable Z, where
• 0 if i is from winter season
• Zi
• 1 if i is from summer season
• to produce the model

1
2
41

• When ?2 is found to be significant, then there
  are two models
• Therefore, the regression lines differ for the
  two seasons. Both seasons have the same slope,
  but different intercepts, and will plot as two
  parallel lines.

For winter season (Z0)
For summer season (Z1)
42
Different slopes and intercepts

• If it is suspected that slopes may be different
  as well, the model becomes
• The intercept equals
• The slope equals

3
For winter season
For summer season
For winter season
For summer season
43
Hypothesis Testing

• To determine whether the SLR model with no Z can
  be improved upon by 3, the following hypotheses
  are tested
• A nested F statistic is computed
• where s refers to the simpler model (no Z terms)
  of 1 and c refers to the more complex model of
  3
• Reject H0 if FgtF?,2,n-4.

44

• If Ho is rejected, model 3 should also be
  compared to model 2 to determine whether there
  is a change in slope in addition to the change in
  intercept, or whether the rejection of model 1
  in favor of 3 was due only to a shift in
  intercept.
• The hypotheses in this case are
• using the test statistic
• Rejecting H0 if FgtF?,1,n-4.

45

• Assuming H0 and H0 are both rejected, the model
  can be expressed as the two separate equations

For winter season
For summer season
46

• The coefficients in these two equations will be
  exactly those computed if the two regressions
  were estimated by separating the data, and
  computing two separate regression equations.
• By using ANCOVA, however, the significance of the
  difference between those two equations has been
  established.

47
Multiple Dummy Variables

• For the cases where there are more than 2
  categories e.g. 4 seasons, 5 stations, 3 flow
  conditions (rising limb, falling limb, baseflow),
  etc.
• Example X discharge, Y concentration, and
  these are classified as either rising, falling,
  or baseflow. Two binary variables are required
  to express these three categories (there is
  always 1 less binary variable required than the
  number of categories).
• Model

4
48

• To test
• A nested F statistic is again computed
• where s refers to the simpler model (no R or D
  terms) of 1 and c refers to the more complex
  model of 4.
• Greater complexity can be added to include
  interaction terms such as
• The procedures for selecting models follow the
  pattern described above.

Reject H0 if FgtF?,2,n-4.
5
49
Summary of the Model Selection Criteria

• 1. Should Y be transformed? Use ei vs. Plot.
• i) constant variance across the range of Y?
• ii) residuals normal?
• iii) curvature?
• R2, SSE, Cp, and PRESS are not appropriate for
  comparison of models having different units of Y.
• 2. Should X (or several Xs) be transformed? Use
  partial plots. Same checks as above. Can use
  R2, SSE, or PRESS to help in decision.
• 3. Which model is best if no. of explanatory
  variables is the same? Use R2, SSE, or PRESS,
  but back up with residual plot.

50

• 4. Which of several models (nested of not
  nested), each with same Y, is preferable? Use
  minimum Cp or minimum PRESS.
• 5. For ANCOVA, always do a X-Y plot to check for
  linearity, whether regression lines are parallel,
  and outliers.
• All assumptions of regression must also be
  checked.
