Title: Rotating Machinery Analysis Outline


1

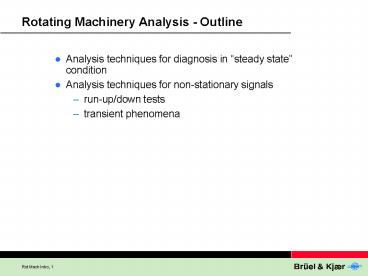

Rotating Machinery Analysis - Outline
  • Analysis techniques for diagnosis in steady
    state condition
  • Analysis techniques for non-stationary signals
  • run-up/down tests
  • transient phenomena

2
Rotating Machinery Analysis
  • Analysis tools for diagnosis in steady state
    condition
  • narrow-band FFT analysis
  • high resolution FFT using zoom or large
    transforms
  • order tracking for machines with varying speed
  • signal enhancement, also combined with order
    tracking
  • tachometers for one or more shafts
  • phase-assigned autospectrum for ODS, balancing
    etc.
  • data export to modal programs for ODS animation
    etc.
  • cepstrum of weighted spectrum for identification
    of harmonic- and sideband-families
  • orbit plot (time x versus time y)

3
Transmission of Vibration
System Response (Mobility)
Input Forces


Vibration

  • Forces caused by
  • Imbalance
  • Shock
  • Friction
  • Acoustic
  • Structural
  • Parameters
  • Mass
  • Stiffness
  • Damping
  • Vibration
  • Parameters
  • Acceleration
  • Velocity
  • Displacement

891875
4
High Resolution spectrum based on large Fourier
Transform
Identification of narrow spaced components over a
wide frequency span
  • 6400 line Fourier Spectrum
  • (? f 62.5mHz
  • span 400Hz)

Detailed view around the fundamental rotational
frequencies (Display of 240 lines out of the 6400
lines)
5
Analysis without and with Tracking
a) Original signal
Time
b) Fixed sampling frequency
Spectrum without tracking
fs 2,56 ? fmax
Samples analysed
fmax
Time
Frequency
c) Sampling according to frequency variation
Spectrum with tracking
Example fs 8 ? ffundamental
Samples analysed
4
3
2
1
Orders
Revolutions (periods)
810110/1
6
Signal Enhancement combined with Order Tracking
FFT without signal enhancement Time
Frequency Spectrum
  • Signal Enhancement and Order Tracking
  • Time Enhanced Time Enhanced Order
    Spectrum

7
Cepstrum for identification of harmonic- and
sideband- families
  • Frequency spectrum

Cepstrum
8
Rotating Machinery Analysis
  • Analysis tools for run-up/down tests
  • FFT with short time records (few no. of lines)
  • order tracking for
  • a) avoiding smearing
  • b) wide RPM, order ranges
  • time capture for fast run-ups/downs using Short
    Time Fourier Transform (STFT)
  • speed tags from one or more tacho signals
  • more independent multibuffers for f.ex run-up and
    run-down in the same measurement session
  • Vold-Kalman Order Tracking Filter

9
Storage in Multi-buffers(storage based upon
speed interval, time,..)
  • Four multi-buffers with individual setup
  • Separate analysis of run-up and run-down in a
    single test
  • Spectra
  • Slices (order, frequency band)
  • Speed values from Tachometer
  • Average speed values from Analyzer(s)
  • Time

FFT, Order, 1/3 oct. Spectra
Order, Freq.Band Overall Slices
Tags
10
Coast-down test - Before After Repair
  • Waterfall plots before and after repair
  • Notice changes in the 2nd and 4th orders due to
    misalignment

11
Short Time Fourier Transform of fast run-up of
spin drier
  • Short Time Fourier Transform (STFT) of fast spin
    drier run-up
  • span 800Hz
  • 200 lines, ? f 4Hz
  • Radial response
  • 1st and 22th order dominating

12
Tacho Processing
Tacho inputs
  • Speed
  • Use
  • Speedometer
  • Speed trigger
  • Speed interval trigger

Tacho- meter
  • Trigger
  • Use
  • Start of FFT record
  • Syncronous analysis
  • Tracking Reference
  • Use
  • Order Analyzer

Accuracy!!
Frequency Analysis Reference is sec
Order Tracking Reference is rev
