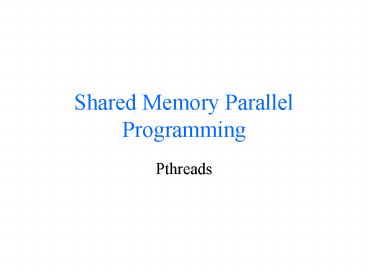

Shared Memory Parallel Programming

1
Shared Memory Parallel Programming

• Pthreads

2
Parallel Programming Models

• Recall we distinguished several kinds of parallel
  programming models
• Low-level parallel programming models
• pthreads for shared memory, MPI for distributed
  memory
• High-level parallel programming
• OpenMP for shared memory, HPF for distributed
  memory

3
Parallel Programming Models

• High-level parallel programming
• programmer describes parallelism implicitly
• details of data and computation to be performed
  on each processor determined by compiler
• different approaches for shared memory and
  distributed memory models

4
Parallel Programming Models

• Low-level parallel programming
• programmer must describe parallelism explicitly
• data and computation to be performed on each
  processor specified exactly by coder
• different approaches for shared memory and
  distributed memory models

5
Parallel Programming Models

• Options for shared memory parallel programming
• OpenMP
• Vendor-specific directives
• Mostly superseded by OpenMP
• Unix utilities
• Fork, shmget
• Explicit threading
• E.g. Pthreads, Solaris UI threads
• Distributed memory API on shared memory

6
Reminder Threads

• Process has its own address space
• A process may be executed by a team of threads
• A thread shares its address space with other
  threads in same team
• But thread stack provides space for data local
  (private) to thread
• Threads used for shared memory parallel
  programming and multitasking

7
Pthreads

• IEEE POSIX standard developed to replace
  different vendor specific multithreading
  libraries
• Implementation called Pthreads or Posix threads
• Available on almost all Unix systems
• Offers a low-level programming interface
• No specific compiler support

Library is libpthread on most systems
8
User-Level Multithreading

• Explicit shared memory parallel programming
• User fully specifies actions of each thread and
  synchronizes (coordinates) threads
• The good part control can be used to performance
  benefit, can explicitly consider e.g. data
  locality
• The bad part can be complex, user has to deal
  with it

9
Applicability of Pthreads

• POSIX standard shared-memory multithreading
  interface
• For general multithreaded programming
• With C, not Fortran
• Provides primitives for process management and
  synchronization
• But missing many conveniences

Note std. makes assumptions about memory
consistency
10
Rough Comparison with OpenMP

• Typically more work to create program
• Not incremental
• Can dynamically spawn (create) threads
• Better support for exception and signal handling
• Supports unstructured control flow
• Missing many conveniences such as atomic,
  barrier, flush primitives, reductions,

Suited to different kinds of applications
11
Uses of Pthreads

• Client-server applications
• GUI handlers
• Signal handlers
• Pipelined applications
• Can be used wherever OpenMP can be used, but
  possibly with much more effort
• (Much) higher maintenance costs
• Many more changes to code

12
Pthreads

• We only look briefly at a subset of Pthreads
• For complete information, many good references
  exist
• Multithreaded Programming With Pthreads, Bill
  Lewis, Daniel J. Berg
• Pthreads Programming, Bradford Nichols, Dick
  Buttlar, Jacqueline Proulx Farrell, Jackie
  Farrell
• www.mit.edu/people/proven/pthreads.html

13
What does the user have to do?

• Decide how to decompose the computation into
  parallel parts
• Create (and destroy) processes to implement that
  decomposition
• Add synchronization to make sure dependences are
  respected

14
General Thread Structure

• Typically, a thread is a concurrent execution of
  a function or a procedure
• A program needs to be restructured so that
  parallel parts form separate procedures or
  functions

15
Thread Creation

• int pthread_create
• (pthread_t new_id,
• const pthread_attr_t attr,
• void (func) (void ),
• void arg)
• new_id threads unique identifier
• attr ignore for now
• func function to be run in parallel
• arg arguments for function func

16
Example of Thread Creation

• void func(void arg)
• int Iarg
• ..
• void main()
• int X pthread_t id
• .
• pthread_create(id, NULL, func, X)

17
Example of Thread Creation (contd.)
main()
pthread_ create(func)
func()
18
Example Hello World
include ltpthread.hgt include ltstdio.hgt define
NUM_THREADS 4 void PrintHello(void threadid)
printf("\nd Hello World!\n", threadid)
pthread_exit(NULL) int main (int argc, char
argv) pthread_t threadsNUM_THREADS
int rc, t for(t0 tltNUM_THREADS t)
printf("Creating thread d\n", t)
rc pthread_create(threadst, NULL,
PrintHello, (void )t) if (rc)
printf("ERROR return code from
pthread_create() is d\n", rc)
exit(-1)
pthread_exit(NULL)
19
OpenMP Hello World Example
include omp.h int main(int argc, char argv)
pragma omp parallel
printf(d, Hello, world!\n,omp_get_thread_num())
return 0
20
Compiling Pthreads Applications

• gcc hello.c lpthread
• icc hello.c lpthread
• g hello.c -lpthread

21
Pthread Termination

• void pthread_exit(void status)
• Terminates the currently running thread
• Implicitly called when the function invoked in
  pthread_create returns

22
Cancelling a thread
A thread can terminate another thread during the
exceution int pthread_cancel (pthread_t thread)
int pthread_setcancelstate (int state, int
oldstate) int pthread_setcanceltype (int type,
int oldstype)
23
Example Cancelling a thread
int main() pthread_t e_th
pthread_t f_th int rc /
creates both threads / rc
pthread_create(e_th, NULL, Thread, (void
)e_str) if (rc) return
-1 rc pthread_create(f_th, NULL,
Thread, (void )f_str) if (rc)
return -1 / sleeps a while /
sleep(10) / requests
cancellation / pthread_cancel(e_th)
pthread_cancel(f_th) / sleeps a bit
more / sleep(10)
pthread_exit(NULL)
void Thread(void string) int i
int o_state / disables cancelability
/ pthread_setcancelstate(PTHREAD_CANCEL_DI
SABLE, o_state) / writes five
messages / for (i0 ilt5 i)
printf("s\n", (char )string) /
restores cancelability /
pthread_setcancelstate(o_state, o_state)
/ writes further / while (1)
printf("s\n", (char )string)
pthread_exit(NULL)
24
Thread Joining

• int pthread_join(
• pthread_t new_id,
• void status)
• Waits for the thread with identifier new_id to
  terminate, either by returning or by calling
  pthread_exit()
• Status receives the return value or the value
  given as argument to pthread_exit()

25
Thread Joining Example

• void func(void ) ..
• pthread_t id int X
• pthread_create(id, NULL, func, X)
• ..
• pthread_join(id, NULL)
• ..

26
Example of Thread Creation (contd.)
main()
pthread_ create(func)
func()
pthread_ join(id)
pthread_ exit()
27
Attributes

• pthread_attr_init(pthread_attr_t attr)
• pthread_attr_destroy(pthread_attr_t attr)
• pthread_attr_setXXX()
• pthread_attr_setdetachstate(pthread_attr_t attr,
  int detachstate)
• pthread_attr_setstacksize (attr, stacksize)

28
Matrix Multiply

• for( i0 iltn i )
• for( j0 jltn j )
• cij 0.0
• for( k0 kltn k )
• cij aikbkj

29
Parallel Matrix Multiply

• All i- or j-iterations can be run in parallel
• If we have p processors (or cores), assign n/p
  rows to each processor
• Corresponds to partitioning i-loop
• Create a thread for each part
• Threads all execute same function, but on
  different data sets

30
Matrix Multiply Parallel Part

• void mmult(void s)
• int slice (int) s
• int from (slicen)/p
• int to ((slice1)n)/p
• for(ifrom iltto i)
• for(j0 jltn j)
• cij 0.0
• for(k0 kltn k)
• cij aikbkj

31
Matrix Multiply Main

• int main()
• pthread_t thrdp
• for( i0 iltp i )
• pthread_create(thrdi, NULL, mmult,(void)
  i)
• for( i0 iltp i )
• pthread_join(thrdi, NULL)

32
Sequential Jacobi Code

• for some number of timesteps/iterations
• for (i0 iltn i )
• for( j1, jltn, j )
• tempij 0.25
• ( gridi-1j gridi1j
• gridij-1 gridij1 )
• for( i0 iltn i )
• for( j1 jltn j )
• gridij tempij

33
Recall Parallel Jacobi

• First (i,j) loop nest can be parallelized
• Second (i,j) loop nest can be parallelized
• Barrier after each loop nest
• Give n/p rows to each processor
• Again, each thread executes same function on its
  own data (data parallel)

34
Pthreads Jacobi Parallel parts (1)

• void jac_1(void s)
• int slice (int) s
• int from (slicen)/p
• int to ((slice1)n)/p
• for( ifrom iltto i)
• for( j0 jltn j )
• tempij 0.25(gridi-1j gridi1j
• gridij-1 gridij1)

35
Pthreads Jacobi Parallel parts (2)

• void jac_2(void s)
• int slice (int) s
• int from (slicen)/p
• int to ((slice1)n)/p
• for( ifrom iltto i)
• for( j0 jltn j )
• gridij tempij

36
Pthreads Jacobi main

• for some number of timesteps
• for( i0 iltp i )
• pthread_create(thrdi, NULL, jac_1, (void
  )i)
• for( i0 iltp i )
• pthread_join(thrdi, NULL)
• for( i0 iltp i )
• pthread_create(thrdi, NULL, jac_2, (void
  )i)
• for( i0 iltp i )
• pthread_join(thrdi, NULL)

37
Synchronizations

• mutexes - Mutual exclusion lock Block access to
  variables by other threads. This enforces
  exclusive access by a thread to a variable or set
  of variables.
• joins - Make a thread wait till others are
  complete (terminated).
• condition variables - data type pthread_cond_t

38
Mutex Example
/ Note scope of variable and mutex are the same
/ pthread_mutex_t mutex1 PTHREAD_MUTEX_INITIALI
ZER int counter0 / Function C / void
functionC() pthread_mutex_lock( mutex1 )
counter pthread_mutex_unlock( mutex1 )
39
Conditional Variables

• A condition variable is a variable of type
  pthread_cond_t and is used with the appropriate
  functions for waiting and later, process
  continuation.
• The condition variable mechanism allows threads
  to suspend execution and relinquish the processor
  until some condition is true.

40
Conditional Variable Functions

• Creating/Destroying
• pthread_cond_init
• pthread_cond_t cond PTHREAD_COND_INITIALIZER
• pthread_cond_destroy
• Waiting on condition
• pthread_cond_wait
• pthread_cond_timedwait - place limit on how long
  it will block.
• Waking thread based on condition
• pthread_cond_signal
• pthread_cond_broadcast - wake up all threads
  blocked by the specified condition variable.

41
Thread Pitfalls

• Race Conditions
• Thread safe code
• Deadlocks
