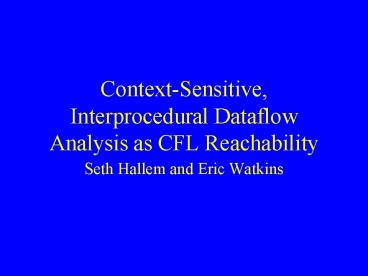

Context-Sensitive, Interprocedural Dataflow
Analysis as CFL Reachability

• Seth Hallem and Eric Watkins

2
Exhaustive Analysis Papers

• Precise Interprocedural Dataflow Analysis via
  Graph Reachability
• Reps, Horowitz, Sagiv -- POPL 1995
• applies CFL reachability to context-sensitive,
  interprocedural dataflow analysis
• Program Analysis via Graph Reachability
• Reps -- ILP 1997
• describes two additional applications
  interprocedural program slicing and shape analysis

3
The Reduction to CFL Reachability

• Question 1 What problems can we solve?
• Question 2 How do we set up the problem?
• Question 3 How do we solve the problem?
• Question 4 What is the complexity of this
  approach?
• Running example possibly uninitialized variables

4
What problems can we solve?

• IFDS problems
• Finite set of dataflow facts (D)
• Mapping from functions 2D?2D to edges in the
  CFG
• Each is distributive wrt the meet operator
• (a b) (a) (b)
• Possibly uninitialized vars
• Each program variable corresponds to a dataflow
  fact. When that fact holds, the variable may be
  uninitialized.
• Transfer functions a variable is uninitialized
  if it was just declared or if it is assigned an
  expression containing uninitialized variables.

5
Simple Example
int z int main (void) int x ,y 0 / x,
z / y y x / x, y, z / z 0
/ x, y /

• D x, y, z, domain/range of transfer
  functions is the power set of D (2D)

6
How do we setup and solve IFDS problems?

• Inputs to the algorithm
• Exploded supergraph (next couple of slides)
• Outputs from the algorithm
• meet-over-all-realizable-paths solution
• MRPn pfq( )

q?Rpaths (startmain, n)
7
The Supergraph
8
Representation Relations

• Each dataflow function, , is converted to a
  representation relation, which is represented as
  a graph consisting of 2D 2 nodes
• D input nodes, one for each dataflow fact, plus
  the node ? (or 0), which corresponds to the empty
  set.
• D output nodes plus the node ?
• There is an edge from input node d1 to output
  node d2 if d2 ?(S) if d1?S and d2 ?(?)

9
More Representation Relations

• (a) and (b) show representation relations for two
  functions (nodes smain and n1)
• (c) and (d) show two ways to compose these
  relations
• (d) illustrates the need for the ? in each
  relation

10
Exploding the Supergraph
11
CFL Reachability

• Want to solve the dataflow problem with a
  reachability query on the exploded supergraph.
• Not all paths in G are valid, though. Must
  match calls w/returns.
• Insight context-sensitivity matching parens
  language of matching parens is a CFL

12
Context-Sensitivity CFL

• Assign a unique index to each callsite, define a
  CFL of matching calls and returns.
• Suppose we have two call-sites to function P(),
  which we label i and k
• (i (k )k )i is a valid path
• (i (k )k is a valid path
• (i (k )i is not

13
Reachability Algorithm

• Dynamic programming is the key
• Start at the entry point to the program. Follow
  the edges in G, recording what dataflow facts we
  can reach.
• At a procedure call, follow the call. To avoid
  re-doing any work, though, maintain a cache of
  edges of that summarize pieces of the
  computation.
• Summary edges record the results of an entire
  procedure, start at a callsite, end at the
  corresponding return-site.
• Path edges record the suffix of a valid path.

14
Dynamic Programming Details
15
Complexity

• Worst case for general CFL reachability is cubic
  in the number of nodes in the graph
• Can do better for dataflow analysis O(ED3) for
  any distributive problem, O(Call D3 hED2) for
  h-sparse problems
• possibly uninitialized variables is 2-sparse when
  aliasing is ignored a variables status as
  initialized or uninitialized can only affect
  itself and one other variable (if it is assigned
  to that variable)

16
Other Applications

• Interprocedural slicing
• identify all pieces of a program relevant to a
  particular statement
• Shape Analysis
• For any DAG data structure, determines a superset
  of the possible shapes for that data structure.
• Each dataflow fact corresponds to a single
  possible shape.
• Problem infinite number of shapes. Solution is
  to define shape at program point q in terms of
  shape at previous program points.
• ILP paper has an example of shape analysis of a
  linked list.

17
The other papers

• Demand Interprocedural Dataflow Analysis
• Horowitz, Reps, Sagiv -- FSE 1995
• Demand-driven Computation of Interprocedural
  Data Flow
• Duesterwald, Gupta, Soffa -- POPL 1995
• Provide two possible frameworks for transforming
  any IFDS analysis into a demand-driven analysis

18
Steps to Demand-driven analysis

• Define problem in the IFDS framework
• Reverse the flow functions, or reverse the flow
  edges
• Start with initial query lt d, n gt
• Propagate the query backwards until solved

19
Reversing dataflow

• In Duesterwald et al., the dataflow problem is
  specified with flow functions
• Reverse the functions
• For CFL problems, the problem is represented as a
  set of edges
• Just reverse the edges

20
Example CCP

• Notation
• x set of dataflow facts
• xw dataflow fact for variable w
• fn(x)w transfer fn for variable w at node n
• w c set of dataflow facts, where the fact
  for variable w equals c

21
Query Algorithm

• Worklist holds the set of outstanding queries
• While not empty, remove a query
• Propagate backwards one node in the flowgraph
• For a function call, create a backwards summary
  for that function and apply that

22
Query Propagation

• More notation
• rp entry node for procedure p
• m, n normal nodes
• fm reverse dataflow fn for node m
• Ncall all nodes that are callsites
• call(m) the procedure called at node m
• f(rp, ep) summary fn for procedure p

23
Backwards edge propagation
24
Query Algorithm Efficiency

• Optimizations function summaries, early
  termination, query result cache
• In the worst case, its the same as exhaustive
  analysis
• Some problems work better than others for
  demand-driven analysis.
• Depends how much information you need to answer
  queries, or how many queries need to be made.

25
Conclusions

• Demand-driven analysis is a powerful idea
• Saves time and space, but in the worst case its
  no better than exhaustive analysis
• Only works for distributive problems
• Two approaches for demand-driven analysis are
  equivalent

26
Discussion

• Are these algorithms generally applicable?
• Are they fast?
• No evidence the papers, but the answer is yes
  (see ESP in a couple of weeks)
• Why are they efficient (beyond the complexity
  guarantee)?
• Is it always cheap to compute the exploded
  supergraph?
• How can an imprecise alias analysis influence
  this step and the overall performance of the
  algorithm?
