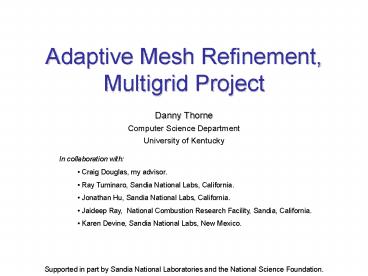

Adaptive Mesh Refinement, Multigrid Project

1
Adaptive Mesh Refinement, Multigrid Project
Danny Thorne Computer Science Department Universit
y of Kentucky

• In collaboration with
• Craig Douglas, my advisor.
• Ray Tuminaro, Sandia National Labs, California.
• Jonathan Hu, Sandia National Labs, California.
• Jaideep Ray, National Combustion Research
  Facility, Sandia, California.
• Karen Devine, Sandia National Labs, New Mexico.

Supported in part by Sandia National Laboratories
and the National Science Foundation.
2
Adaptive Mesh Refinement, Multigrid Project
Danny Thorne University of Kentucky
Supported in part by Sandia National Laboratories
and the National Science Foundation.
3
Definition of the Problem
Solve elliptic boundary value problems
(BVPs). using adaptive mesh refinement
(AMR) and multigrid (MG).
4
Motivation

• Problems with variations in scale, e.g.
  combustion.

CRF Example
5
Outline

• Background and definitions.
• Multigrid on adaptively refined meshes, the
  basic algorithm.
• Cache aware smoothers.
• Cache aware AMRMG.
• Numerical Results.
• Future work.

6
Background and Definitions
7
Cell Centered Multigrid
Illustration in 1D with four grid levels
Smooth A4u4f4.
Smooth A4u4f4.
Smooth A3u3f3.
Smooth A3u3f3.
Smooth A2u2f2.
Smooth A2u2f2.
Solve A1u1f1 directly.
8
Definition of a Grid Hierarchy
9
(No Transcript)
10
Transfer Operators
11
Nesting
We require strict nesting of the grids
This requirement can be written in terms of the
domains as
and
12
(No Transcript)
13
Internal Patch Boundaries
Three important concepts for MG on AMR

• Ghost points Define ghost points near the
  internal patch boundaries so that a regular
  stencil can be used on the fine grid side of the
  boundary. (This is illustrated in later slides.)
• C1 continuity Also, these ghost points are
  used to preserve C1 continuity across internal
  patch boundaries.
• Flux matching The process of preserving C1
  continuity across internal patch boundaries (also
  referred to as coarse/fine interfaces) is called
  flux matching and is discussed more in later
  slides.

Illustrations of ghost points and flux matching
in later slides.
Note We use cell-centered grids so that coarse
and fine grids wont share grid points at the
interfaces.
14
Internal Patch Boundaries
a.k.a. Coarse/Fine Interfaces
C1 continuity guarantees consistency which is
important because consistency stability
convergence.
Note We use cell-centered grids so that coarse
and fine grids wont share grid points at the
interfaces.
15
Example
16
Poisson on a Unit Cube
Example
17
2D Stencils
For grid points away from refinement patches.
18
3D Stencils
Boundary values.
19
Ghost Points

• Ghost points are needed at the interface between
  coarse patches and fine patches.
• On the finer level, they provide information
  needed by the discrete composite operator to use
  a regular stencil at the boundaries of patches.
• On the coarser level, they provide information
  needed by the composite operator for flux
  matching across coarse/fine interfaces.
• The following few slides will illustrate the
  process of acquiring ghost points and applying
  the flux matching technique.

20
Ghost Points
Normal

• First, interpolate values at the blue xs using
  coarse grid values.
• Then interpolate the red points using fine grid
  values along with the values at the blue xs.
• The red points are the ghost points that will be
  used by the discrete operator.

21
Flux Matching
1
2
The same approximation for the derivative across
the coarse/fine interface is used for the grid
points on both sides of the interface, so C1
continuity is preserved across the interface.
Notice that these fluxes match the fluxes used in
the stencils for the boundary points on the fine
grid side. Hence, flux matching.
22
Flux Matching in 3D
Image created with Povray (http//www.povray.org)
23
Ghost Points
Hard to illustrate in 3D
Interpolate the green points using coarse grid
values and then interpolate the blue points using
the green points.
Interpolate the red points using fine grid values
and the blue points. The red points are the
ghost points.
A piece of a coarse grid thats adjacent to a
fine grid
24
Flux Matching
Hard to illustrate in 3D
At the interface, average the fluxes across the
four fine grid cell walls using the interpolated
values denoted by the red points.
25
Multigrid on AMR Hierarchies
An Illustration in 1D
26
Preparation For Illustration

• Assume the hierarchy is already constructed
  (e.g. from AMR codes at Sandia).
• The following sequence of slides illustrates our
  AMR MG algorithm on the smallest possible example
  (in 1D) that captures all the aspects of the
  algorithm
• Three levels,
• One refinement patch per level,
• Four grid points per level.
• Problem
• Residual
• Correction

Fasten your seatbelts, grasp the safety bar,
place head firmly against head rest
27
Stuff (Hidden Slide)
Checkerboard denotes values that were updated in
previous steps.
28
Color Test
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
29
Illustration in 1D
The dashed lines and dots represent the
completion of the composite grid on each level.
The algorithm is patch-based. The solid lines
represent the domains of the patches, and the
dark dots represent the grid points in the
patches.
30
Illustration in 1D
Start with an initial guess for the solution on
the composite grid.
Represent the grid points with a 2-by-2 array of
spaces to keep track of the status of the
different variables during the algorithm. See
the key to the left.
Solution
Correction
Residual
Temporary
31
Illustration in 1D
Interpolate ghost point(s) so that regular
stencils can be applied at patch boundary points.
Checkerboard pattern denotes values that were
updated in previous steps.
Solution
Correction
Residual
Temp
Temporary
32
Illustration in 1D
Compute the residual on the finest grid level
(using the ghost point(s) to complete the
stencil(s) on the patch boundary points).
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
33
Illustration in 1D
Smooth to get a correction.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
34
Illustration in 1D
Store temporarily corrected solution, needed for
acquisition of ghost points for the residual
computation on the next level. (The permanently
corrected solution for this level of this V cycle
will be computed on the other side of the V
cycle.)
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
35
Illustration in 1D
Project the residual onto the part of the coarser
grid that is covered by the finer grid.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
36
Illustration in 1D
Interpolate ghost point(s) for the temporarily
corrected solution. This is needed for residual
computation on the uncovered part of the next
level.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
37
Illustration in 1D
Interpolate ghost point(s) so that regular
stencils can be applied at patch boundary points.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
38
Illustration in 1D
Compute the residual on the uncovered nodes. Use
fine grid data (including ghost points) to do
flux matching at the interface nodes. Use the
newly interpolated ghost points to apply a
regular stencil at the boundary points.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
39
Illustration in 1D
Smooth to get a correction.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
40
Illustration in 1D
Store temporarily corrected solution, needed for
acquisition of ghost points for the residual
computation on the next level. (The permanently
corrected solution for this level of this V cycle
will be computed on the other side of the V
cycle.)
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
41
Illustration in 1D
Project the residual onto the part of the coarser
grid that is covered by the finer grid.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
42
Illustration in 1D
Compute ghost point(s) for the temporarily
corrected solution.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
43
Illustration in 1D
Compute the residual on the uncovered nodes. Use
fine grid data (including ghost points) to do
flux matching at the interface nodes.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
44
Illustration in 1D
Solve for the correction on the coarsest level.
(We use geometric multigrid here.)
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
45
Illustration in 1D
Correct the solution on the uncovered part of the
coarsest level.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
46
Illustration in 1D
Update the correction on the next finer level
with interpolated values from the coarse level.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
47
Illustration in 1D
Update the residual.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
48
Illustration in 1D
Smooth to get a correction for the correction.
We avoid smoothing the current correction because
that would require interpolating ghost points at
the patch boundaries.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
49
Illustration in 1D
Update the original correction with the newly
computed correction.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
50
Illustration in 1D
Now update the solution on the uncovered nodes
with the latest correction.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
51
Illustration in 1D
Update the correction on the next finer level
with interpolated values from the coarser level.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
52
Illustration in 1D
Update the residual.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
53
Illustration in 1D
Smooth to get a correction for the correction.
We avoid smoothing the current correction because
that would require interpolating ghost points at
the patch boundaries.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
54
Illustration in 1D
Update the original correction with the newly
computed correction.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
55
Illustration in 1D
Now update the solution on this level with the
latest correction.
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
Temporary
56
Illustration in 1D
Final solution on the composite grid after one V
cycle.
Can do more V cycles by starting the procedure
again from the beginning with the new solution as
the initial guess.
57
Illustration in 1D
Checkerboard denotes values that were updated in
previous steps.
Solution
Correction
Residual
Temp
58
Composite Grid Operators
Level 1 operator
Level 2 operator
Level 3 operator
Level 1 operator
Level 2 operator
Level 3 operator
59
Smoothing

• Typically a damped Gauss-Seidel iteration.

• Using natural, red-black, or a multi-color
  ordering.

• Compute pointwise on level without
  regard for any other level

• With damping factors

60
Residual Computation

• On other levels ,

• Where Average() is a standard weighted
  restriction from the finer level to the coarser
  level.

61
Multigrid Algorithm (Old)
// Split residual computation.
// Intermediate correction.
62
Multigrid Algorithm (Hidden)
Smooth a correction.
Temporarily corrected solution.
Project part of the residual.
Compute the other part of the residual.
Interpolate and correct.
Update the residual.
Smooth an intermediate correction.
Update the final correction.
Apply the final correction to the solution on
this level.
63
AMR MG Algorithm
Solve on the coarsest grid.
Compute residual on finest grid.
Smooth a correction.
Store temporarily corrected solution.
Project part of the residual.
Compute the other part of the residual.
Recursively apply to coarser levels.
Interpolate and correct.
Update the residual.
Smooth an intermediate correction.
Update the final correction.
Apply the final correction to the solution on
this level.
64
Cache Aware Smoothers
65
Cache Aware Smoothers
Preparation for Illustration

• Want data to pass through cache only once per
  application of the smoother.
• Application of the smoother means multiple
  (e.g. two to four) Gauss-Seidel updates per
  point.
• Whereas normally one sweeps the entire grid over
  and over to apply successive updates, we want to
  stagger the updates in such a way that we need to
  sweep the grid only once.
• Want the answer to be exactly the same as the
  normal application of the smoother. (Bit-wise
  equivalence.)
• The following illustration is of a 2D grid with
  12-by-4 grid points and for three updates per
  point. Updates occur from left to right and
  bottom to top.

66
Cache Aware Smoothers
67
Cache Aware Smoothers
Note that updating the third row again would
require updated data in the fourth row, so we
have to wait since the fourth row hasnt been
updated yet. Similarly for the second row which
depends on a second update of row three.
Before updating new points, apply more updates to
the current points in cache where possible.
Update points in the first partition.
68
Cache Aware Smoothers
Update points in the next partition.
Now we can continue updating the rows in the
previous partition.
69
Cache Aware Smoothers
70
Cache Aware Smoothers
71
Only Post-smoothing

• Apparently, the cache aware smoothing technique
  will give better performance with greater numbers
  of updates (within a limit imposed by the cache
  size, anyway).
• When doing both pre- and post- smoothing, it is
  common to do two pre-smoothing updates and two
  post-smoothing updates.
• Q What if we instead do four post-smoothing
  updates and no pre-smoothing?
• A Better cache effects.
• In addition, doing only post-smoothing
  simplifies our AMR MG algorithm, as illustrated
  on the next slide, and is more conducive to
  making multigrid cache aware.

72
Only Post-Smoothing

• No pre-smoothing.
• No need for a temporarily corrected solution.
• Just project/compute the residual.
• Only need to compute ghost points once.

• No residual update.
• Can avoid intermediate correction by
  interpolating ghost points (good for
  implementation of cache aware multigrid).
• Number of smoothing updates here should equal
  the number of pre-smoothing updates plus the
  number of post-smoothing updates used in the
  original implementation.

73
Cache Aware Multigrid
74
Numerical Results

• The following slides contain graphs of numerical
  results.
• The results are for the 2D case.
• Three types of grid hierarchies were tested.
• Full domain refinements (normal, non-AMR MG).
• One refinement per patch
• Two refinements per patch

75
Numerical Results

• We solve a Laplaces equation with solution
• Dirichlet boundary conditions.
• We iterate until the residual is less than
  times the norm of the composite right hand
  side.
• We use three versions of the smoother
• Standard Implementation Uses one pair of loops
  with lots of conditionals to determine which
  stencil to apply (recall that different stencils
  are used on the interior and boundaries in the
  cell centered code).
• Optimized Implementation Uses several loops to
  apply the updates intelligently (with knowledge
  of what order the points are updated) without
  using conditionals.
• Cache Aware Implementation As illustrated in
  previous slides.

76
Numerical Results

• We solve a Laplaces equation with solution
• Dirichlet boundary conditions.
• We iterate until the residual is less than
  times the norm of the composite right hand
  side.
• We use three versions of the smoother
• Standard Implementation A standard
  implementation that one would write in general
  practice.
• Optimized Implementation Optimized loop
  structure requiring more complicated and tedious
  coding.
• Cache Aware Implementation As illustrated in
  the previous slides. This uses the optimized
  implementation as a basis.

77
Pentium Results
78
Itanium Results
79
Speedups
80
Pre-/Post- versus Post-
With the cache aware smoother
81
Pre-/Post- versus Post-
With the cache aware smoother
82
Future Work
83
Future Work

• Cache aware methods
• Need to try a variety of techniques.
• In larger problems, especially in 3D, the row
  based blocking is insufficient.
• Try windshield wiper style approach.

• 3D
• I already have a basic 3D code.
• Need to extend the cache aware implementation to
  3D. (How to apply cache aware techniques in 3D is
  an active are of research.)
• Need to generalize functionality -- more
  complicated configurations of refinement patches
  are possible than in 2D.

• Parallel Support
• Partitioning mechanisms.
• Load balancing algorithms (Zoltan).

84
Future Work

• Variable Coefficients
• Currently the code only supports constant
  coefficients.
• I am already in the middle of building support
  for variable coefficients.

• Support for more general boundary conditions.
• Currently only support Dirichlet boundaries.

• Clustering Algorithms
• This is related to the process of dynamically
  determining useful refinement patterns based on
  the behavior of the solver.
• Given a set of points that are not sufficiently
  accurate, cluster them into subsets that are
  convenient to cover with rectangular patches.
• Will probably use existing tools for this, at
  least in the short term.

85
Future Work

• Papers
• C. C. Douglas, J. Hu, J. Ray, D. T. Thorne, and
  R. S. Tuminaro, Fast, Adaptively Refined
  Computational Elements in 3D, in Proceedings of
  the International Conference on Computational
  Science, Amsterdam, 2002, Springer-Verlag,
  Berlin, 2002, 10 pages. (Refereed)
• C. C. Douglas and D. T. Thorne, A Note on Cache
  Memory Methods for Multigrid in Three Dimensions,
  11 pages, to appear, American Mathematics
  Society, 2002-2003.
• C. C. Douglas, J. Hu, J. Ray, D. T. Thorne, and
  R. S. Tuminaro, Cache Aware Multigrid on Two
  Dimensional Adaptively Refined Structured Meshes,
  nearly ready for submission.
• Paper to do 3D results
• Paper to do Parallel algorithms and results.
• Paper to do Fully cache aware multigrid
  results.
• Paper to do Tutorial about the code.

86
Implementation
87
Grids and Grid Functions

• These are the two main types of objects.
• A grid level is made from grids.
• The grid hierarchy is made from grid levels.
• A grid function level is made from grid
  functions.
• The composite grid function is made from grid
  level functions.
• An AMR MG Poisson object is made from a grid
  hierarchy and a composite grid function.
• The AMR MG Poisson object is what the user will
  interface with.
• These things will be illustrated on the next
  several slides.

The next slide has most of this content in the
form of a diagram.
88
AMR MG Poisson
Grid Hierarchy
Grid Function Composite
NumLevels
NumLevels
Grid Levels
Grid Function Levels
NumGrids
NumGrids
Grids
Grid Function Arrays
NumFunctionss
Grid Functions
n
A contains n instances of B.
A
B
A is derived from B.
A
B
Array
A contains a pointer to B.
A
B
89
Grids
Real coordinates of the beginning and ending
corners of a rectangular region of the domain.
Integer coordinates of the beginning and ending
grid points of the rectangular region of the
domain.
Identity of the processor this grid belongs to.
Pointer to the grid level that this grid belongs
to.
Pointers to the parent and children of this grid.
Illustration on next slide.
90
Grid Illustration
dx1
(ex1,ex2)
dx2
(ei1,ei2)
(si1,si2)
ni2 2
(sx1,sx2)
ni1 3

• The grid is characterized by the coordinates sx,
  ex, dx, si, ei, and ni.
• The grid does not store values for the grid
  points.
• The values associated with the grid points are
  stored in grid functions (next slide).

91
Grid Functions
A single value for each grid point.
Pointer to the corresponding grid.
Pointer to the base grid.
Identity of the processor that this grid function
belongs to.
92
Grid Function Arrays
Array of NumGridFunctions pointers to grid
functions.
NumGridFunctions
Ghost points.
Pointer to the corresponding grid.
Pointer to the base grid.
Pointer to the containing grid function level.
Identity of the processor that this grid function
array belongs to.
Pointers to parent and children.

• This is where most of the work is done.
• Most of the multigrid related methods are here,
  for example.

93
Grid Levels
NumLevels, LevelIndex, NumGrids,
Array of NumGrids pointers to grids.
Pointer to the grid hierarchy that contains this
grid level.
94
Grid Function Levels
NumGridFunctions, NumFunctionArrays
Array of NumFunctionArrays pointers to grid
function arrays.
Pointer to the parent grid function level.
Pointer to the base grid.
95
Grid Hierarchy
NumLevels
Array of NumLevels pointers to grid levels.
Grid Function Composite
NumLevels, NumGridFunctions
Array of NumLevels grid function levels.
96
AMR MG Poisson
Pointer to a grid hierarchy.
Pointer to a composite grid function.
Array of pointers to grids.
NumGrids, NumGridFunctions.
RefinementFactor, MinPatchSize.
The grids are allocated here, and the rest of the
grid hierarchy is initialized with pointers to
them.
97
Additional Comments

• Not shown in the preceding diagrams
• Every object contains a pointer to an MPI
  wrapper.
• Every object has the usual constructors,
  destructor, operators, accessors,
• Some of the objects have methods related to the
  mesh refinement process and/or multigrid process.
  Those will be discussed in the following few
  slides.

98
Refinement
99
Composite Operator
AMRMGPoissonClassLsuball()
GridFunctionCompositeClassLsuball()
GridFunctionLevelClassLsuball()
GridFunctionLevelClassLsuball()

• Interpolate ghost points around this grid on
  level l using values from the parent grid on
  level l-1.
• Apply the operator to this grid on level l.
• Perform flux matching at the interfaces between
  this grid on level l and all child grids on level
  l1.
• Note that the ghost points for the flux matching
  were acquired when Lsuball() was called for level
  l1 previously.
• Note also that an argument can be passed to this
  function indicating which level to treat as the
  finest level. If that argument indicates that
  this level, level l, is the finest level, then
  flux matching will not be performed and Lsuball()
  will correspond to Lnf,l in that case.

100
Multigrid
AMRMGPoissonClassVCycle()
GridFunctionCompositeVcycle()
GridFunctionLevel( lmax )ComputeResidual()
GridFunctionLevel( l-1 )Vcycle_Project_Stage00()
GridFunctionLevel( l )Vcycle_Project_Stage01()
For l from finest to coarsest1.
GridFunctionLevel( l )Lsuball( l )
GridFunctionLevel( l-1 )Lsuball()
GridFunctionLevel( l-1 )Vcycle_Project_Stage02()
GridFunctionLevel( 0 )Vcycle_CoarseGridSolve()
GridFunctionLevel( l-1 )Vcycle_Correct_Stage01()
GridFunctionLevel( l )Vcycle_Correct_Stage02()
For l from coarsest to finest-1.
101
Closing Remarks

• As mentioned before, the user will interface
  with an AMRMGPoisson object. In the simplest
  case, just specify the problem on a base grid and
  then call the solve method.
• AMRMGPoisson.InitBaseGrid( /Specify pointers to
  functions and/or filenames of input
  files/)
• AMRMGPoisson.Solve()
• Experiment with caching techniques.
• Parallelization.
• Clustering (GrACE)
• Load balancing (Zoltan)
