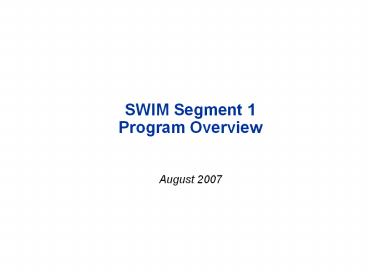

SWIM Segment 1 Program Overview

1
SWIM Segment 1 Program Overview

• August 2007

2
Agenda

• SWIM Segment 1 Overview
• COI Overviews
• AIM
• Flight and Flow Management
• Weather
• Core Services Architecture Overview
• Backup

3
SWIM Program Approach
Plans Rqmnts
Segment 1
Prototyping/Lab Setup
AIM Dev Deploy
ERAM TFM Capability Dev. Deployment
Terminal Capability Dev. Deploy
Weather (CIWS, WMSCR, ITWS)
Segment 2 Implementation
JRC S2
Research, Demonstrations, and Trials
4
Program Management Paradigm
Core Services comprise services that must be
common across two or more COIs to manage the
publication, subscription, security, and other
aspects of the data efficiently. Implementation
timeline driven by needs of COIs
SWIM Core
Dem/Val, SE, Design
Infrastructure Development
As Needed Infrastructure Implementation
Flow Flight Management COI
System Implementation
SE, Data Requirements
System Allocation/Design
Wx Systems COI
Aeronautical Information Management COI
Surveillance Systems COI
NAS Management COI
Cost, schedule, and risk to be worked with
programs represented by Communities of Interest .
Schedule driven by balancing system need against
technical and acquisition reality. Balance
between cost, schedule and risk is key.
5
SWIM Segment 1 COI Capabilities
6
SWIM Segment 1 Overview
NWS
ATCSCC
AOCs
AOCs
SAMS
ARTCC 1
ERAM
WJHTC
NNCC
SWIM FTI IP Network
TFMS TPC CIWS SWIM Support Test Labs ERAM TDDS
WMSCR
TRACON 1
TDDS
VNTSC
TFMS DRC ITWS
ATCT 1
TDDS
7
AIM SWIM Segment 1
FAA HQ
Current SUA Status and SUA updates
SUA updates
ATCSCC
FTI
SAMS
SUA updates
8
FFM ERAM and Terminal SWIM Segment 1
VNTSC
WJHTC
ATCSCC
TFMS
SAMS
NORAD
SUA Data
Flight Information
ICE
Gateway (FTI)
FTI
ERAM
Flight Information
Flight Information
ARTCC
9
FFM TFMS and Terminal SWIM Segment 1
ARTCC
VOLPE
ERAM
TFMS DRC
Flight Information
(Backup Data)
Flow Information
Surface Data from Terminal Clusters
FTI
Flow Information
AOCs
AOCs
10
Weather COI Segment 1
WJHTC
VOLPE
ARTCC
ITWS
CIWS
TFMS
DRC
ITWS products
ERAM
ITWS products
CIWS Products
NWS
PIREPs
FTI
ITWS, CIWS, WMSCR products
ITWS, CIWS, WMSCR products
PIREPs Altimeter data
NNCC
AOCs
WMSCR
11
SWIM Architecture with Core Services
Other LAN and WAN connectivity for these systems
CS
CS
ERAM
SA
SAMS CP
SA
CS
WMSCR
SA
SWIM FTI IP Network
ATCSCC
ARTCCs/NNCC
EFSTS
SA
CS
ASDE-X
SA
SA
FDIO
TFMS
SA
TDLS
SA
SWIM Registry Server
NAS Boundary Protection
SA
RVR
TFM TPC/DRC at WJHTC/VNTSC
SWIM Test Facility and Lab
Terminal Facilities (Selected TRACONs ATCTs)
WJHTC
To Non-NAS systems
12
SWIM Functional Architecture
Users
Users
NAS Application System Functions
Application
NAS System
Service Interface
Messaging
Messaging
Interface Management
Value-Added Services
SWIM Service Functions
Enterprise Service Management
Service Security
Boundary Protection
Secure IP Network Connectivity
Naming Addressing
Intrusion Detection and Response
Identity Certificate Management
Information Technology Infrastructure Functions
13
SWIM Core Services Segment 1 Capability
Key Segment 1 Future Segments NAS Systems
14
Backup
15
CIWS SWIM
Product Imagery
Lincoln Labs
CIWS
FTI IP Network
Subscribe
Publish
Product Imagery and Encoded Data
Product Imagery and Encoded Data
Product Imagery
Product Imagery and Encoded Data
Subscribe
Product Imagery
Subscribe
Product Imagery and Encoded Data
Existing TCP/IP Communication
Proposed SWIM Web Service
Enabled Web Service
16
ITWS SWIM
Product Imagery and Encoded Data
Product Imagery
TRACON
Product Imagery
Subscribe
ITWS PG
Product Imagery and Encoded Data
FTI IP Network
PtP Links
Product Imagery and Encoded Data
Subscribe
Product Imagery
Publish
Subscribe
Product Imagery
Encoded Data
Product Imagery and Encoded Data
ITWS-SWIM
Existing TCP/IP Communication
Proposed SWIM Web Service
Enabled Web Service
17
ERAM/WMSCR SWIM
E-PIREP (TCP-IP)
ERAM
WMSCR
SWIM IP Network (FTI WAN, Facility LANs)
Publish E-PIREP, GA-PIREP, altimeter data
Subscribe E-PIREP PIREP-GA
PIREP-GA (TCP-IP)
Subscribe E-PIREP PIREP-GA
FS-21
Airlines
NWS
E-PIREP Electronic PIREPS generated by
en-route controllers
PIREP-GA PIREPS generated by General Aviation
Proposed TCP/IP
Pre Segment 1 TCP/IP
Proposed Web Service
18
AIM SUA Segment 1 Data Flow Focus
19
Terminal Capabilities Data Exchange Summary
Assumes SWIMized interface
20
Terminal Service Container Service Adapter
Orchestration Choreography WSCL, WSCL, BPEL4WS
Service Adapter Infrastructure (SA) Provides the
tools to convert legacy application to Web
Services as well as the Security and Messaging
Services.
Service Container software fundamentally supports
the overall Enterprise Service and Interface
Management
WS Optional Stack
Discovery UDDI
Description WSDL
Message Format SOAP
WS Base Stack
Encoding XML
Transport HTTP
Service Adapter provides platform native API
FTI
Service Container
Legacy Applications
Service Adapter
TDDS
Supplied by SWIM
Hardware provided by Terminal
21
Terminal System Architecture
Towers with ASDE TDDS (15-35 sites)
F T I
TDDS
Data Filter
ASDE-X Server
Switch
SA
En Route
SWIM
TFM
EFSTS PCs
Router
IP
Event Extractor
TDLS Server
FDIO PC RCU
Tower without TDDS (may or may not have all
systems)
Data Filter
ASDE-X Server
IP

• Data Filter will provide raw ASDE data on a
  limited number of aircraft that may be of
  interest to Homeland Security.
• Event Extractor will use ASDE and EFSTS data and
  identify certain events (out of gate, on the
  spot, etc.) for all flights.

FDIO PC RCU
Router
EFSTS PCs
IP
TDLS Server
Event Extractor
22
Notional ERAM Server-Proxy/Mirror BasedHADDS
Replacement
ERAM
Clients
Flight Data Processing Processor
HADDS Replacement
DSP
Flights Server (FLS)
CTAS TMA
Flight intent, trajectories, progress, airspace
impact, coordination, control,
FLS Proxy
Facilities Server (FAC)
Flight plan submission, amendments, deletion
SAFA
FAVs, APDIAs, Posting
FAC Mirror
Special Activities Airspaces Server (SAA)
TFM ETMS
SAA Mirror
SAA Definition and Status
Sectors Server (SEC)
MCTMA
Airspace definition and allocation
SEC Mirror
Surveillance Data Processing Processor
MIT/LL
Target and track information
TRK Mirror
Tracking Server (TRK)
CTAS TMA
Weather request/response
WxR Proxy
NORAD
General Information / Weather Processor
GI Proxy
Bi-directional GI messages
ICE
Weather Reports Server (WxR)
Future Clients
Proxy - An intermediate (two-way) link between
client and server. Mirror - Duplication of
another applications data base (one-way).
General Information Server (GI)
23
TFM Segment 1 Capabilities
Capability Description
Reroute Data Exchange Modification to CATMT WP 1 to send data to SWIM/Flight Object rather than transmit via HADDS
RVR Publication Step 1 TFM publishes currently available data using SWIM Step 2 TFM obtains and publishes additional RVR data from TDDS
Flow Information Publication Includes creation of TFM Flow Object which TFM publishes provides FCA and AFP data to ERAM and NAS users
24
Segment 1 Traffic Flows

• Flight Flow Management COI
• ERAM to TFMS at WJHTC and to DRC at Volpe
• TFMS to ERAM and AOCs
• TDDS at major TRACONs and Towers, to ERAM and
  TFMS
• Weather COI
• CIWS and ITWS to AOCs, NWS
• WMSCR PIREPs and altimeter data to/from ERAM and
  to AOCs, also to NWS
• AIM COI
• SAMS at ATCSCC to/from ERAM
• SUA web service for NAS users
