Title: Super-B Factory in a


1

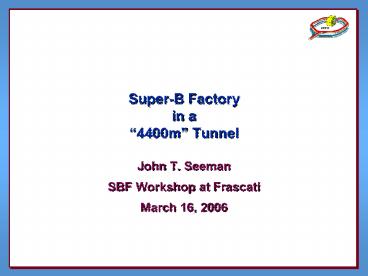

Super-B Factory in a 4400m Tunnel
  • John T. Seeman
  • SBF Workshop at Frascati
  • March 16, 2006

2
Motivation
  • Use an existing tunnel and injector (2200 m)
  • Use existing RF system (476 MHz)
  • Make two rings for each beam in the tunnel
  • First ring provides damping and low emittances in
    x, y, and z planes
  • Second ring is for bunch compression by a factor
    of about x6
  • Second ring has an ILC final focus for collisions
  • Collide every bunch on every turn (?really two
    turns 4400 m)
  • Collide 4 x 7 GeV with bunches 1 m apart
  • Keep bunch charges and beam currents at about
    present or soon-to-be levels.
  • Keep beam-beam parameters at the present PEP-II
    / KEKB levels (or very nearly) ? Do not need
    short damping times which saves AC power!

3
PEP-II Parameters

C 2200 m
4
Super-KEKB Parameters

C 3016 m
5
Raimondi Feb 2006
ILC ring with ILC FF ILC Compressor Colliding
every turn crossing angle optional
C 6000 m
Decompressor
Decompressor
FF
FF
IP
Compressor
Compressor
6
Layout of One Ring Other Ring is the Reverse!
Linac injector

Bunch compressor
Bunch expander
Damping ring 2200 m
Final Focus
Reverse Final Focus
IP And Detector
7
Super-B-Factory in a 4400 m Tunnel 0.4 mm

8
SUPER-B Factory in a 4400 m tunnel 0.3 mm

9
SBF as shown in Traditional Ring Collider
Parameters

Emittances 12.x1.5 nm
10
Approximate AC Power
  • PEP-II (2200 m) (1 ring LER and HER)
  • RF AC Power LER at 3.1 GeV 1 MeV/turn x 4 A x 2
    8 MW
  • RF AC Power HER at 9.0 GeV 3.6 MeV/turn x 2 A x
    2 14.5 MW
  • Total RF AC power 22.5 MW.
  • Super-B factory (4400 m) (2 rings LER and HER)
  • RF AC Power LER at 4 GeV 1.8 MeV/turn x 4 A x 2
    x 2 29 MW
  • RF AC Power HER at 7.0 GeV 2.2 MeV/turn x 2.5 A
    x 2 x 2 22 MW
  • Total RF AC power 51 MW.

11
First Look at Bunch Compression
  • With a long damping time, each ring has a natural
    energy spread of about 2.5E-4.
  • The natural bunch lengths will be about 3 mm.
  • The desired bunch length at the IP is about 0.5
    mm.
  • The needed compression is a factor of 6.
  • The energy spread at the collision point is then
    about 1.3 E-3 for both beams. Probably ok. (?)
  • The RF compressors are likely 1.43 GHz (3 x 476)
    with 65 MV and 110 MV with lengths about 10 and
    20 m of SC structures but use very little power.

12
Conclusions
  • Colliding every turn helps with the collision
    rate.
  • The ILC final focus will allow very small by
    0.4 mm.
  • The beam emittances are not very small (12 nm x
    1.5 nm).
  • Bunch compressors are needed to shorten the
    bunch.
  • Having two loops per ring in a tunnel allows
    adequate damping in one ring, room for bunch
    compression and final focus in the other, and
    twice as many bunches.
  • Standard beam-beam parameters can keep the needed
    damping time long and the AC power low.
  • We must study further the bunch compression and
    Final Focus beam issues.
