Lecture 16: Large Cache Innovations

1

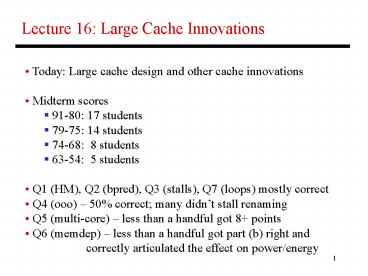

Lecture 16 Large Cache Innovations

• Today Large cache design and other cache
  innovations
• Midterm scores
• 91-80 17 students
• 79-75 14 students
• 74-68 8 students
• 63-54 5 students
• Q1 (HM), Q2 (bpred), Q3 (stalls), Q7 (loops)
  mostly correct
• Q4 (ooo) 50 correct many didnt stall
  renaming
• Q5 (multi-core) less than a handful got 8
  points
• Q6 (memdep) less than a handful got part (b)
  right and
• correctly articulated the
  effect on power/energy

2
Shared Vs. Private Caches in Multi-Core

• Advantages of a shared cache
• Space is dynamically allocated among cores
• No wastage of space because of replication
• Potentially faster cache coherence (and easier
  to
• locate data on a miss)
• Advantages of a private cache
• small L2 ? faster access time
• private bus to L2 ? less contention

3
UCA and NUCA

• The small-sized caches so far have all been
  uniform cache
• access the latency for any access is a
  constant, no matter
• where data is found
• For a large multi-megabyte cache, it is
  expensive to limit
• access time by the worst case delay hence,
  non-uniform
• cache architecture

4
Large NUCA

• Issues to be addressed for
• Non-Uniform Cache Access
• Mapping
• Migration
• Search
• Replication

CPU
5
Static and Dynamic NUCA

• Static NUCA (S-NUCA)
• The address index bits determine where the block
• is placed
• Page coloring can help here as well to improve
  locality
• Dynamic NUCA (D-NUCA)
• Blocks are allowed to move between banks
• The block can be anywhere need some search
• mechanism
• Each core can maintain a partial tag structure
  so they
• have an idea of where the data might be
  (complex!)
• Every possible bank is looked up and the search
• propagates (either in series or in parallel)
  (complex!)

6
Example Organization
Latency 65 cyc
Data must be placed close to the center-of-gravity
of requests
Latency 13-17cyc
7
Examples Frequency of Accesses

• Dark ? more
• accesses
• OLTP (on-line
• transaction
• processing)
• Ocean ?
• (scientific code)

8
Core 0
Core 1
Core 2
Core 3
Core 4
Core 5
Core 6
Core 7
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
Scalable Non-broadcast Interconnect
Shared L2 Cache and Directory State
L2 Cache Controller
9
Core 0
Core 1
Core 2
Core 3
Core 4
Core 5
Core 6
Core 7
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L2
L2
L2
L2
L2
L2
L2
L2
Scalable Non-broadcast Interconnect
Replicated Tags of all L2 and L1 Caches
Controller that handles L2 misses
Off-chip access
10
A single tile composed of a core, L1 caches,
and a bank (slice) of the shared L2 cache
Core 0
Core 1
Core 2
Core 3
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L2
L2
L2
L2
Core 4
Core 5
Core 6
Core 7
The cache controller forwards address requests
to the appropriate L2 bank and handles
coherence operations
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L2
L2
L2
L2
Memory Controller for off-chip access
11
Memory controller for off-chip access
Top die with L2 cache banks Each core
has low-latency access to one L2 bank
L2
L2
L2
L2
Core 0
Core 1
Core 2
Core 3
Bottom die with cores and L1 caches
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
L1 D
L1 I
12
The Best of S-NUCA and D-NUCA

• Employ S-NUCA (no search required) and use page
• coloring to influence the blocks cache index
  bits and
• hence the bank that the block gets placed in
• Page migration enables block movement just as in
  D-NUCA

13
Prefetching

• Hardware prefetching can be employed for any of
  the
• cache levels
• It can introduce cache pollution prefetched
  data is
• often placed in a separate prefetch buffer to
  avoid
• pollution this buffer must be looked up in
  parallel
• with the cache access
• Aggressive prefetching increases coverage, but
  leads
• to a reduction in accuracy ? wasted memory
  bandwidth
• Prefetches must be timely they must be issued
  sufficiently
• in advance to hide the latency, but not too
  early (to avoid
• pollution and eviction before use)

14
Stream Buffers

• Simplest form of prefetch on every miss, bring
  in
• multiple cache lines
• When you read the top of the queue, bring in the
  next line

L1
Sequential lines
Stream buffer
15
Stride-Based Prefetching

• For each load, keep track of the last address
  accessed
• by the load and a possibly consistent stride
• FSM detects consistent stride and issues
  prefetches

incorrect
init
steady
correct
correct
incorrect (update stride)
PC
tag
prev_addr
stride
state
correct
correct
trans
no-pred
incorrect (update stride)
incorrect (update stride)
16
Compiler Optimizations

• Loop interchange loops can be re-ordered to
  exploit
• spatial locality
• for (j0 jlt100 j)
• for (i0 ilt5000 i)
• xij 2 xij
• is converted to
• for (i0 ilt5000 i)
• for (j0 jlt100 j)
• xij 2 xij

17
Exercise

• Re-organize data accesses so that a piece of
  data is
• used a number of times before moving on in
  other
• words, artificially create temporal locality

for (i0iltNi) for (j0jltNj)
r0 for (k0kltNk) r r
yik zkj xij r
for (jj0 jjltN jj B) for (kk0 kkltN kk
B) for (i0iltNi) for (jjj jlt
min(jjB,N) j) r0 for (kkk
klt min(kkB,N) k) r r yik
zkj xij xij r
y
z
x
y
z
x
18
Exercise
for (jj0 jjltN jj B) for (kk0 kkltN kk
B) for (i0iltNi) for (jjj jlt
min(jjB,N) j) r0 for (kkk
klt min(kkB,N) k) r r yik
zkj xij xij r
y
z
x
y
z
x
y
z
x
y
z
x
y
z
x
19
Exercise

• Original code could have 2N3 N2 memory
  accesses,
• while the new version has 2N3/B N2

for (i0iltNi) for (j0jltNj)
r0 for (k0kltNk) r r
yik zkj xij r
for (jj0 jjltN jj B) for (kk0 kkltN kk
B) for (i0iltNi) for (jjj jlt
min(jjB,N) j) r0 for (kkk
klt min(kkB,N) k) r r yik
zkj xij xij r
y
z
x
y
z
x
20
