Title: Install Active Directory


1

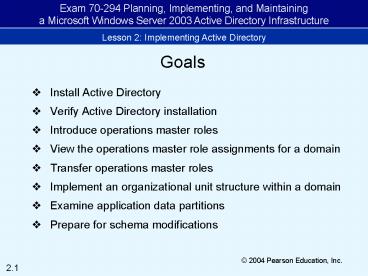

Goals
  • Install Active Directory
  • Verify Active Directory installation
  • Introduce operations master roles
  • View the operations master role assignments for a
    domain
  • Transfer operations master roles
  • Implement an organizational unit structure within
    a domain
  • Examine application data partitions
  • Prepare for schema modifications

2
(Skill 1)
Installing Active Directory
  • To organize objects and implement domain
    structure
  • Install Active Directory on a Windows Server 2003
    computer using the Active Directory Installation
    Wizard
  • During first time installation
  • Create the root domain, a new domain tree, and a
    new forest
  • Designate a Windows Server 2003 computer as a
    domain controller

3
(Skill 1)
Installing Active Directory (2)
  • Creating a domain
  • By default, the domain is configured to run in
    Windows 2000 mixed mode
  • Windows 2000 mixed mode allows various domain
    controllers to coexist
  • Windows NT 4.0 backup domain controllers (BDCs)
  • Windows 2000 domain controllers (DCs)
  • Windows Server 2003 domain controllers (DCs)

4
(Skill 1)
Installing Active Directory (3)
  • If your network consists of only Windows 2000 and
    Windows Server 2003 domain controllers, switch to
    Windows 2000 native mode
  • Windows 2000 native mode supports only
  • Windows 2000 domain controllers
  • Windows Server 2003 domain controllers
  • Windows 2000 mixed mode and native mode are
    identical to those available in Windows 2000

5
(Skill 1)
Installing Active Directory (4)
  • Windows Server 2003 provides two new modes
  • Windows Server 2003 mode
  • Only supports Windows Server 2003 domain
    controllers
  • Gives you the additional ability to rename domain
    controllers at any time
  • Windows Server 2003 interim mode is used when you
    upgrade a Windows NT 4.0 primary domain
    controller (PDC) to Windows Server 2003

6
(Skill 1)
Installing Active Directory (5)
  • During Active Directory installation, three
    components are installed
  • Domain Name System (DNS) service
  • Database and database log files
  • Shared system volume

7
(Skill 1)
Figure 2-1 Active Directory installation
8
(Skill 1)
Figure 2-2 Internet Protocol (TCP/IP) Properties
dialog box
9
(Skill 1)
Figure 2-3 Running Dcpromo
10
(Skill 1)
Figure 2-4 Detecting network settings
11
(Skill 1)
Figure 2-5 The Server Role screen
12
(Skill 1)
Figure 2-6 The Operating System Compatibility
screen
13
(Skill 1)
Figure 2-7 The Domain Controller Type screen
14
(Skill 1)
Figure 2-8 The Create New Domain screen
15
(Skill 1)
Figure 2-9 The Permissions screen
16
(Skill 1)
Figure 2-10 Adding a client to a domain
17
(Skill 2)
Verifying Active Directory Installation
  • After you install Active Directory on the first
    domain controller, you may need to add additional
    Active Directory domain controllers
  • Before installing additional domain controllers
  • You need installation-critical information from
    Active Directory
  • You must verify the initial installation to make
    sure certain components were successfully
    installed

18
(Skill 2)
Verifying Active Directory Installation (2)
  • Use the Active Directory Users and Computers
    console to verify an Active Directory
    installation
  • Use this console, which is an administrative
    tool, to create and delete objects, set their
    permissions, and modify their properties
  • Use this console to control primary objects
  • Organizational units (OUs)
  • Windows Server 2003 user accounts, group
    accounts, computer accounts
  • Published printers

19
(Skill 2)
Verifying Active Directory Installation (3)
  • Verifying an Active Directory installation
  • Verify the presence of the domain that you
    specified during the Active Directory
    installation
  • Verify the presence of your new domain controller
    in the domain controllers OU
  • The presence of certain administrative tools also
    verifies that Active Directory was successfully
    installed
  • Active Directory and Trusts console
  • Active Directory Sites and Services console

20
(Skill 2)
Verifying Active Directory Installation (4)
  • Use the Active Directory Domains and Trusts
    console
  • To manage the trust relationships between two or
    more domains in the same forest or different
    forests
  • To provide interoperability with other domains
  • To raise the domain functional level for a domain
  • To transfer the domain naming master role from
    one domain controller to another
  • To add or remove alternate User Principal Name
    (UPN) suffixes to/from user logon names

21
(Skill 2)
Figure 2-11 The Active Directory Domains and
Trusts console
22
(Skill 2)
Verifying Active Directory Installation (5)
  • Use the Active Directory Sites and Services
    console
  • To create sites and subnets
  • To move domain controllers to the correct sites
  • To configure servers as global catalog servers
  • To create site links
  • This information is used to decide the
    replication method for directory information and
    to process service requests

23
(Skill 2)
Figure 2-12 The Active Directory Sites and
Services console
24
(Skill 2)
Figure 2-13 Verifying the presence of a domain
controller
25
(Skill 2)
Figure 2-14 The Sysvol directory
26
(Skill 2)
Figure 2-15 The Ntds folder
27
(Skill 2)
Verifying Active Directory Installation (6)
  • In addition to the three default consoles, you
    can also install an additional tool called the
    Active Directory Schema snap-in
  • Permits you to view and modify the schema
  • The schema defines the types of objects and the
    type of information pertaining to those objects
    that can be stored in Active Directory

28
(Skill 2)
Figure 2-16 The Active Directory Schema snap-in
installed
29
(Skill 3)
Introducing Operations Master Roles
  • Replication models
  • Multi-master replication model
  • Used to control most functions
  • All domain controllers have the ability to modify
    Active Directory
  • Single-master model
  • Used when a single domain controller modifies
    data to control certain types of events in Active
    Directory

30
(Skill 3)
Introducing Operations Master Roles (2)
  • Each of these special functions is controlled by
    FSMO (Flexible Single Masters of Operations)
    servers or, more typically, operations masters
  • Types of special functions
  • Forest-wide operations master roles
  • Domain-wide operations master roles

31
(Skill 3)
Introducing Operations Master Roles (3)
  • Forest-wide operations master roles
  • Two forest-wide FSMO roles
  • Schema master role
  • Domain naming master role
  • Each of these roles can reside on only a single
    server for the entire forest
  • By default, both roles will be held by the first
    domain controller created in the root domain of
    the forest

32
(Skill 3)
Introducing Operations Master Roles (4)
  • Domain-wide operations master roles
  • Three domain-wide roles
  • Primary domain controller (PDC) emulator role
  • Relative ID (RID) master role
  • Infrastructure master role
  • Each of these roles can reside on only a single
    domain controller in each domain
  • By default, all three roles will be held by the
    first domain controller created in each domain

33
(Skill 3)
Introducing Operations Master Roles (5)
  • When you create the first domain in a new forest,
    by default, all five operations master roles are
    assigned to the first domain controller in that
    domain
  • Active Directory assigns only the domain-wide
    operations master roles to the first domain
    controller of any subsequent child domains that
    you create in the forest
  • The first domain controller in each of the other
    domains holds the domain-wide operations master
    roles

34
(Skill 3)
Introducing Operations Master Roles (6)
  • Guidelines for planning operations master roles
    for per-forest roles
  • Assign the two forest-wide roles to a high-uptime
    server backups of this machine are of special
    importance
  • Assign the schema master and the domain naming
    master roles to a single domain controller in one
    of the domains in the forest

35
(Skill 3)
Introducing Operations Master Roles (7)
  • Guidelines for planning operations master roles
    for per-domain roles
  • Have at least one additional domain controller
    act as a standby operations master for other
    operations masters
  • If a domain controller fails, the standby domain
    controller can be manually configured to seize
    the failed domain controllers roles

36
(Skill 3)
Introducing Operations Master Roles (8)
  • Guidelines for planning operations master roles
    for per-domain roles
  • Assign both the RID master and the PDC emulator
    roles to the same domain controller
  • If the domain is large, these roles can be
    assigned to separate domain controllers to reduce
    the load on the PDC emulator
  • Make sure these servers are always capable of
    communicating with each other

37
(Skill 3)
Introducing Operations Master Roles (9)
  • Guidelines for planning operations master roles
    for per-domain roles
  • If there is more than one domain, do not assign
    the infrastructure master role to a domain
    controller that is hosting the global catalog
    service
  • Global catalog
  • Stores information about objects in a tree or a
    forest
  • When this information changes, the global catalog
    updates the information through replication and
    always contains the latest information about
    objects

38
(Skill 3)
Introducing Operations Master Roles (10)
  • Guidelines for planning operations master roles
    for per-domain roles
  • If you assign the infrastructure master role to a
    domain controller that is also a global catalog
    server, the infrastructure master will not
    function properly, because there are no phantom
    references for it to update
  • If possible, try to place the domain naming
    master on a server hosting the global catalog

39
(Skill 4)
Viewing the Operations Master Role Assignments
for a Domain
  • To monitor the operations master roles, you must
    identify and view the domain controllers that
    hold the roles
  • Regular monitoring of the operations masters
    roles in a domain or forest
  • Enables you to determine the performance and load
    on each of the operations masters
  • This enables you to decide which roles must be
    transferred to other domain controllers

40
(Skill 4)
Viewing the Operations Master Role Assignments
for a Domain (2)
  • To view all of the domain-wide operations master
    role assignments, use the Active Directory Users
    and Computers console
  • To view the schema master and the domain naming
    master roles, use the Active Directory Schema
    snap-in and the Active Directory Domains and
    Trusts console

41
(Skill 4)
Figure 2-17 Viewing the default domain-wide
operations master role assignments
42
(Skill 4)
Figure 2-18 The Change Schema Master dialog box
43
(Skill 4)
Figure 2-19 The Change Operations Master dialog
box
44
(Skill 5)
Transferring Operations Master Roles
  • After you have identified the domain controllers
    that hold the operations master roles, you can
    easily transfer roles between domain controllers
  • Conditions requiring that you transfer operations
    master roles
  • When you want to change the default operations
    master because the domain controller is
    unavailable for replication
  • When the performance of the domain controller
    holding the operations master role is
    deteriorating due to excess load

45
(Skill 5)
Transferring Operations Master Roles (2)
  • You can transfer operations master roles between
    domain controllers within a forest, as well as
    within domains, with the assistance of the
    original operations master
  • To transfer an operations master role from one
    domain controller to another, make sure that both
    domain controllers are available and connected to
    each other through the network

46
(Skill 5)
Transferring Operations Master Roles (3)
  • Transferring an operations master role is a
    two-stage process
  • Connect to the new domain controller that will
    hold the role
  • Transfer the role to the domain controller you
    have identified

47
(Skill 5)
Transferring Operations Master Roles (4)
  • You use the Active Directory Users and Computers
    console to transfer the relative ID master, PDC
    emulator, and infrastructure master roles
  • You use the Active Directory Domains and Trusts
    console to transfer the domain naming master role

48
(Skill 5)
Transferring Operations Master Roles (5)
  • Failure of an operations master
  • An operations master may be unavailable due to a
    system failure
  • If there is any chance of recovering it, you
    should do so
  • If you cannot recover it, you can force the
    transfer of the operations master role to another
    Windows Server 2003 domain controller without the
    cooperation of the existing owner of the roles
  • This process is called seizing the role
  • Use the Ntdsutil.exe utility at the command
    prompt to seize any operations master role

49
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain
  • Planning and creating an organizational unit (OU)
    structure is the last activity you perform to
    complete the implementation of Active Directory
  • OUs are container objects used to organize
    objects in a domain into logical groups to
    centralize and simplify administration of a large
    number of objects
  • You can manage users easily and efficiently in an
    OU
  • In a multiple-domain model, each domain
    implements its own OU hierarchy

50
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (2)
  • Advantages of creating OUs
  • You can apply Group Policy to a particular group
    of users or computers independently of other
    groups of users and computers in other OUs
  • You can structure a domain
  • According to the departments and locations in
    your organization
  • Without OUs, all users are maintained in a single
    list under a domain

51
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (3)
  • Advantages of creating OUs
  • You can delegate administrative control over
    network resources to users
  • You can easily accommodate any changes that take
    place in the structure of your organization, for
    example, reorganizing users between OUs requires
    less time and effort than reorganizing users
    between domains

52
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (4)
  • Advantages of creating OUs
  • OUs simplify the viewing and administration of
    directory objects within a domain
  • OUs allow administrators to have easy access to
    all objects at any level of the hierarchy
  • Plan your OU structure carefully so the
    organizational units represent your organization
    in a meaningful and manageable way

53
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (5)
  • Three standard models are typically used to
    design an OU hierarchy
  • Business function-based
  • Geographically-based
  • A combination of both business function and
    geographically-based

54
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (6)
  • Use the business function-based model to create
    an OU structure that reflects the various
    business functions within an organization
  • Use the geographically-based model to create an
    OU structure that represents the location of
    branches in an organization

55
(Skill 6)
Figure 2-20 A business function-based OU structure
56
(Skill 6)
Figure 2-21 A geographically-based OU structure
57
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (7)
  • Use a combination of business function and
    geographically-based models to create an OU
    structure that reflects the various business
    functions within the different branches of an
    organization

58
(Skill 6)
Figure 2-22 A business function and
geographically-based OU structure
59
(Skill 6)
Figure 2-23 Creating an organizational unit
60
(Skill 6)
Implementing an Organizational Unit Structure
within a Domain (8)
  • Each OU you create contains a set of default
    properties
  • Each OU also has additional properties
  • Properties are attributes you use to locate the
    OU
  • Use the Active Directory Users and Computers
    console to set the properties

61
(Skill 6)
Figure 2-24 MKTG Properties dialog box
62
(Skill 7)
Understanding Application Data Partitions
  • Application data partitions
  • Are special database structures within Active
    Directory
  • They hold information specific to a particular
    application
  • To fully understand why they are necessary, you
    must first understand how they function in Active
    Directory

63
(Skill 7)
Understanding Application Data Partitions (2)
  • A partition in Active Directory is a section of
    the database
  • With its own root name (using LDAP distinguished
    names)
  • With its own replication topology
  • The critical principle is replication topology
  • Since all partitions have their own topology,
    information changes in one partition do not force
    replication to other partitions

64
(Skill 7)
Figure 2-25 Using application data partitions
65
(Skill 7)
Understanding Application Data Partitions (3)
  • Application data partitions have their own naming
    convention
  • Applies to DNS names and LDAP distinguished names
  • From the DNS side, an application data partition
    is typically configured as a child domain of an
    Active Directory domain
  • From the LDAP side, the partition has its own
    LDAP distinguished name

66
(Skill 7)
Understanding Application Data Partitions (4)
  • LDAP distinguished name
  • An LDAP naming convention that is used in most,
    if not all, LDAP compliant databases
  • Think of it as a path name describing the entire
    path to the object from within the database
  • LDAP names are particularly important because
    some of the advanced Active Directory utilities
    (such as Ntdsutil) require them

67
(Skill 7)
Understanding Application Data Partitions (5)
  • Administering application data partitions
  • Typically, you will not need to perform any real
    administration
  • Your application will usually create the
    partition for you, and perform all writes and
    changes
  • Common current applications that make use of
    application data partitions are DNS and TAPI
  • In certain cases, you may be required to create
    an application data partition

68
(Skill 7)
Understanding Application Data Partitions (6)
  • To create an application data partition, you can
    use Ntdsutil.exe, a raw LDAP editor, or Active
    Directory Services Interface (ADSI)
  • Ntdsutil is the most accessible of these tools
  • It is a powerful and versatile tool for making
    major modifications to the Active Directory
    database
  • Since it is a very powerful application, you have
    the potential for making major mistakes very
    quickly

69
(Skill 7)
Understanding Application Data Partitions (7)
  • Ntdsutil command line utility
  • Must be run in Directory Services Restore Mode on
    the domain controller on which you wish to make a
    change
  • Application data partitions can only be created
    by Enterprise Administrators
  • By default, the only Enterprise Administrator is
    the Administrator account in the forest root
    domain

70
(Skill 8)
Preparing for Schema Modifications
  • Schema
  • Considered the blueprint or rulebook for Active
    Directory
  • Defines the structure and rules for the Active
    Directory database
  • To understand more specifically what the schema
    does, you need to understand more about the
    structure of Active Directory

71
(Skill 8)
Preparing for Schema Modifications (2)
  • Active Directory is composed of various types of
    objects
  • Each object is defined by its type, which is
    referred to as the object class
  • Each object class is defined by the attributes
    included in the class
  • Attributes are specific fields for the object
    that store a particular type of information
  • Different object classes can have different
    attributes, which are suited to the needs of the
    object

72
(Skill 8)
Figure 2-26 Object classes and attributes
73
(Skill 8)
Preparing for Schema Modifications (3)
  • You can examine and change most of the attributes
    for an object class by opening the object class
    in the Active Directory Schema snap-in
  • You can add attributes to an existing class
  • You can create a new class using new or existing
    attributes to drastically change the
    functionality of Active Directory
  • This allows Active Directory to support your own
    customized applications and data

74
(Skill 8)
Preparing for Schema Modifications (4)
  • A mistake made in the schema can have very severe
    consequences
  • Microsoft has put several safeguards in place to
    reduce the chance that mistakes may occur when
    you are viewing or editing the schema

75
(Skill 8)
Preparing for Schema Modifications (5)
  • Some of Microsofts safeguards
  • Object classes and attributes can be deactivated,
    but they cannot be deleted
  • Deactivating a class results in the inability to
    create new objects in that class.
  • Deactivating an attribute results in the
    inability to add the attribute to other classes
  • Mandatory attributes of an existing class cannot
    be deactivated

76
(Skill 8)
Preparing for Schema Modifications (6)
  • Some of Microsofts safeguards
  • Default attributes, which are required for Active
    Directory to function properly, cannot be
    deactivated
  • The schema can only be modified on the schema
    master
  • Only members of the Schema Admins group have
    permission to modify the schema, by default
  • The Active Directory Schema snap-in is not
    installed by default

77
(Skill 8)
Preparing for Schema Modifications (7)
  • Precautions exist because of the scope of schema
    modifications
  • However, there are a few instances in which a
    schema modification is warranted

78
(Skill 8)
Preparing for Schema Modifications (8)
  • Most commonly, schema modifications are performed
    for one of two reasons
  • To support business requirements, you may need to
    add a new attribute or class to the schema
  • To support new Active Directory-integrated
    applications that store a portion of their data
    in the Active Directory database, you may need to
    supply new attributes or classes

79
(Skill 8)
Preparing for Schema Modifications (9)
  • If you choose to modify the schema in the Active
    Directory Schema snap-in, follow these
    precautions
  • Thoroughly evaluate the need for the schema
    modification and make sure that modifying the
    schema is the best solution
  • Specifically define the modification to be
    performed
  • Create a script or use another programmatic
    method to apply the modification and test it
    thoroughly in an offline environment

80
(Skill 8)
Preparing for Schema Modifications (10)
  • Steps to modify the schema
  • Connect to the schema operations master,
    preferably using an account that is not a member
    of the Schema Admins group
  • Use the Run as facility to launch the application
    you are using to modify the schema as a member of
    the Schema Admins group

81
(Skill 8)
Preparing for Schema Modifications (11)
  • Steps to modify the schema
  • If the operations master is a Windows 2000 domain
    controller, enable writes on the schema
  • Modify the schema
  • If the operations master is a Windows 2000 domain
    controller, disable writes on the schema
  • Disconnect from the schema operations master

82
(Skill 8)
Figure 2-27 Viewing an object class in the Schema
console
Write a Comment
User Comments (0)
About PowerShow.com
