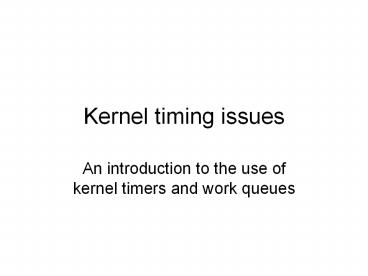

Kernel timing issues

1
Kernel timing issues

• An introduction to the use of kernel timers and
  work queues

2
Kernel timers

• Linux offers a facility that lets drivers put a
  process to sleep until a fixed amount of time has
  elapsed (as measured in jiffies)
• When the timer expires, a driver-defined action
  will be performed, which can wake up the
  process that was put to sleep, or could perform
  some alternative action (for example, the kernel
  timer could re-start)

3
jiffies

• unsigned long volatile jiffies
• global kernel variable (used by scheduler)
• initialized to zero when system reboots
• gets incremented during a timer interrupt
• so it counts clock-ticks since cpu restart
• tick-frequency is a configuration option
• On our machines HZ250 (in .config)

4
jiffies overflow

• Wont overflow for at least 16 months
• Linux kernel got modified to fix overflow
• Now the declaration is in linux/jiffies.h
• unsigned long long jiffies_64
• and a new instruction in do_timer()
• ((u64)jiffies_64)
• which compiles to assembly language as
• add 1, jiffies0
• adc 0, jiffies4

5
Kernel timer syntax

• Declare a timer struct timer_list mytimer
• Initialize this timer init_timer( mytimer )
• mytimer.func mytimeraction
• mytimer.data (unsigned long)mydata
• mytimer.expires ltnumber-of-jiffiesgt
• Install this timer add_timer( mytimer )
• Modify this timer mod_timer( mytimer, ltjifsgt
  )
• Delete this timer del_timer( mytimer )
• Delete it safely del_timer_sync( mytimer)

6
A kernel-timer caution

• A kernel timers timeout-action cannot do
  anything that could cause the current task to
  sleep (such as copying data between user-space
  and kernel-space, or trying to allocate more
  kernel memory)
• However, to aid debugging, a timer CAN use
  printk() within its timeout-routine

7
trytimer.c

• We have posted an example that shows how a Linux
  kernel timer can be used to perform a periodic
  action (such as using printk() to issue a
  message every time the time expires, then restart
  the timer
• Notice that our demo is not able to issue
  messages directly to the console its
  timer-function executes without a tty

8
Delaying work

• If a device-driver needs to perform actions that
  require using process resources (like a tty), or
  that may possibly sleep, then it can defer that
  work using a workqueue

9
Programming syntax

• Declare struct workqueue_struct myqueue
• struct work_struct thework
• Define void dowork( void data ) / actions
  /
• Initialize myqueue create_singlethread_workqu
  eue( mywork )
• INIT_WORK( thework, dowork, ltdata-pointergt )
• Schedule queue_dalayed_work( myqueue,
  thework, ltdelaygt )
• Cleanup if ( !cancel_delayed_work( thework ) )
• flush_workqueue( myqueue )
• destroy_workqueue( myqueue )

10
tryworkq.c and defermsg.c

• We have posted demo-modules that show the use of
  workqueues to perform actions later, either as
  soon as a process context is available, or
  after a prescribed time
• Further details on the options for using an
  existing kernel workqueue or a workqueue of your
  own creation may be found in our textbook
  (Chapter 7 of LDD3)

11
Applying these ideas

• To demonstrate a programming situation in which
  using kernel timers is valuable, we created the
  foo.c device-driver, plus an application that
  uses it (watchfoo.cpp)
• You can compile and install the module, then
  execute the application watchfoo
• But you will notice there are two problems
  (excess cpu usage and loop-termination)

12
Reducing CPUs usage

• The watchfoo program rereads /dev/foo
  constantly (numerous times per second), much
  faster than the human eye can see
• If you run the top utility, you will see that a
  high percentage of the available CPU time is
  being consumed by watchfoo
• You can add a kernel timer to the foo.c driver
  to curtail this excessive reading

13
In-class exercise

• Modify foo.c (call it timedfoo.c) as follows
• Create an integer flag-variable (ready) as a
  global object in your module
• When your read() function gets called, it
  should sleep until ready equals TRUE it should
  set ready equal to FALSE when it awakens, but
  should set a timer to expire after 1/10 seconds
• Your timers action-function should set ready
  back to TRUE, then wake up any sleeping tasks

14
Implementation hints

• You need a wait-queue (so your drivers reader
  tasks can sleep on it)
• You need a timer action-function
• You need to organize your timer-functions
  data-items into a single structure (because the
  timer-function has only one argument)
• Your timer-function must do two things
• Change ready to TRUE
• Wake up any sleepers

15
Deferring work

• Linux supports a workqueue mechanism which
  allows the kernel to defer specified work until
  some later point in time
• This mechanism has been reworked in a major way
  since our texts were published
• So any device-driver has to be modified if it
  made any use of a kernel workqueue
• Changes require grasp of some macros

16
sizeof and offsetof

• Our GNU compilers permit use of these C/C
  operators on object types
• The sizeof operator returns the number of bytes
  of memory the compiler allocated for storing the
  specified object
• The offsetof operator returns the number of
  bytes in a structure which precede the specified
  structure-member

17
A struct example
struct mystruct char w short x long y
long long z my_instance
You can use the sizeof operator to find out how
much memory gets allocated to any struct
mystruct object, like this int nbytes
sizeof( my_instance ) You can use the
offsetof operator to find out where within a
given structure a particular field occurs, like
this int offset_z offsetof( struct mystruct,
z )
18
The container_of() macro

• Recent versions of the Linux kernel have
  introduced a further operator on
  structs container_of( ptr, type, member )
• When given a pointer to a field within a
  structure-object, and the type-name for that that
  structure-object, and the field-name for that
  structures field-member, then it returns the
  structures address

19
Using container_of()
struct mystruct char w short x long y
long long z my_instance 1, 2, 3, 4

If you have a pointer to one of the fields in
some instance of a this kind of struct object,
then you could use the container_of() macro to
get a pointer to that struct object itself,
like this long ptr
my_instance.y struct mystruct p
container_of( ptr, struct mystruct, y ) This
would be useful if you now wanted to access other
members printk( wd xd yd zd \n,
p-gtw, p-gtx, p-gty, p-gtz )
20

• include ltlinux/workqueue.hgt
• void dowork( struct work_struct data )
• DECLARE_DELAYED_WORK( mywork, dowork )
• struct workqueue_struct myqueue
• myqueue create_singlethread_workqueue( mywork
  )

21
workqueue syntax
include ltlinux/workqueue.hgt struct
workqueue_struct myqueue // pointer to your
workqueue void dowork( struct work_struct data
) // your functions prototype DECLARE_DELAYED_WO
RK( mywork, dowork ) int init_module( void
) myqueue create_singlethread_workqueue(
mywork ) if ( !queue_delayed_work( myqueue,
mywork, HZ5 ) ) return EBUSY return 0 //
SUCCESS void cleanup_module( void
) destroy_workqueue( myqueue )
22
tryworkq.c
In this example the delayed work consists of
simply printing a message to the kernels
logfile -- you can view by typing the dmesg
command
void dowork( struct work_struct data
) printk( \n\n I am doing the delayed work
right now \n )
Notice that the action function in this example
ignores its data argument
23
An improved example

• Our announce.c module shows how an LKM could
  display its messages within a window on the Linux
  graphical desktop
• It uses the tty_struct object which exists in
  the process-descriptor for the insmod task
  which you launch to install the LKM
• We shall see how this same idea can be used in a
  waitqueues action functions

24
timer verses workqueue

• Any kernel-timers action-function will be
  executed in atomic context just like an
  interrupt service routine it cannot sleep, and
  it cannot access any user-space data
• But any workqueues action-function will be
  executed by a kernel-thread and thus it
  possesses a process context, so it can be
  scheduled and sleep if necessary though it,
  too, cannot access user-space

25
If dowork() needs data
// data items needed by your dowork function
are packaged in a struct struct
mydata char msg struct
tty_struct tty my_data \nHello\n,
NULL // your module-initialization function
sets up your struct delayed_work object // and
it can also finish initializing your my_data
objects member-fields myqueue
create_singlethread_workqueue( mywork
) INIT_DELAYED_WORK( mywork, dowork
) my_data.tty current-gtsignal-gttty // then
your action-function can access members of your
my_data object like this void dowork( struct
work_struct data ) struct mydata dp
container_of( my_data.msg, struct mydata, msg
) struct tty_struct tty dp-gttty tty-gtdriver
-gtwrite( tty, dp-gtmsg, strlen( dp-gtmsg ) )
26
defermsg.c

• This LKM will display a message within a desktop
  window after a 10-second delay
• It illustrates a use of the container_of()
  macro (as is needed by the reworked API for the
  Linux kernels workqueues)
• Our course-website has a link to an online
  article by author Jonathan Corbet giving details
  of ongoing kernel changes in 2.6

27
Summary of tonights demos

• foo.c and watchfoo.cpp
• announce.c
• trytimer.c
• trymacro.c
• tryworkq.c
• defermsg.c
• EXERCISE Modify the foo.c device-driver to use
  a kernel timer in its read() method
