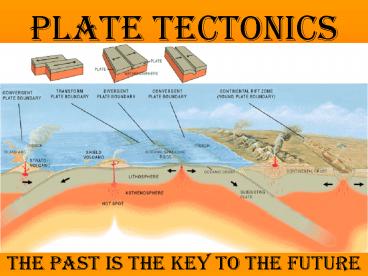

PLATE TECTONICS

1
PLATE TECTONICS

• THE PAST IS THE KEY TO THE FUTURE

2
(No Transcript)
3

• In geologic terms, a plate is a large, rigid slab
  of solid rock.
• The word tectonics comes from the Greek root "to
  build."
• which refers to how the Earth's surface is built
  of plates.
• The theory of plate tectonics states that the
  Earth's outermost layer is fragmented into a
  dozen or more large and small plates that are
  moving relative to one another as they ride atop
  hotter, more mobile material.

4
(No Transcript)
5
(No Transcript)
6

• The diagrams show the break-up of the super
  continent Pangaea (meaning "all lands" in Greek),

• which figured prominently in the theory of
  continental drift -- Pangaea began to break up
  about 225-200 million years ago,
• eventually fragmenting into the continents as we
  know them today.

7
(No Transcript)
8
(No Transcript)
9

• Plate tectonics is a relatively new scientific
  concept, introduced
• 30 years
• ago

Geez 30 is SOOOOO OLD!!!
10
(No Transcript)
11
(No Transcript)
12

• The plates consist of an outer layer of the
  Earth, the lithosphere,
• which is cool enough to behave as a rigid shell.
• Occasionally the hot asthenosphere of the Earth
  finds a weak place in the lithosphere to rise as
  a plume
• PLATE BOUNDARIES!!!

Oh Behave
13

• There are THREE types of plate boundaries
• DIVERGENT Boundaries -- where new crust is
  generated as the plates pull away from each
  other.
• Plate boundary zones -- broad belts in which
  boundaries are not well defined and the effects
  of plate interaction are unclear.

14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
mmm hot syrup
18
(No Transcript)
19
N. A. PLATE
Eurasian PLATE
20
II CONVERGENT boundaries -- where crust is
destroyed as one plate DIVES under
another. SUBDUCTION BOUNDARY
21
L I Q U I D H O T M A G M A
22
Burn baby burn, Disco inferno!!!
23

• Subduction processes in oceanic-oceanic plate
  convergence also result in the formation of
  volcanoes
• Such volcanoes are typically strung out in chains
  called island arcs.
• island arcs such as the Marianas and the Aleutian
  Islands have formed and why they experience
  numerous strong earthquakes

24
Nothing is melting here!!!
25

• When two continents meet head-on, neither is
  subducted because the continental rocks are
  relatively light and, resist (NO) downward
  motion.
• Himalayan mountain range
• With MT. EVEREST!!!

26
(No Transcript)
27
III TRANSFORM boundaries -- where crust is
neither produced nor destroyed as the ROUGH
plates slide horizontally past each other.
28
(No Transcript)
29

• zone between two plates sliding horizontally past
  one another is called a transform-fault boundary
• Most transform faults are found on the ocean
  floor. They commonly offset the active spreading
  ridges, producing zig-zag plate margins
• San Andreas fault zone in California

30
If you were given a map, you could be able to
label1Divergent boundary2 Convergent
Boundaries 3 ocean-ocean 4 ocean-continent 5
continent-continent6 Transform Boundary
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
Disco Stu is tellin YOU This is the last
Hawaiian Island above water, all the rest are
DOWN LOW!!!
