IGMP Mixed Version Proxying drafthemixedigmpproxy00'txt

1

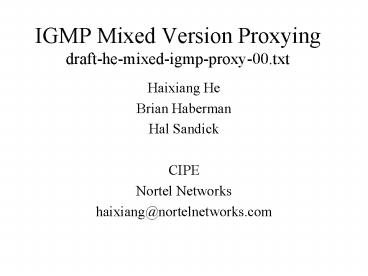

IGMP Mixed Version Proxyingdraft-he-mixed-igmp-pr
oxy-00.txt

• Haixiang He
• Brian Haberman
• Hal Sandick
• CIPE
• Nortel Networks
• haixiang_at_nortelnetworks.com

2
Introduction

• Current IGMP Proxying draft only addresses proxy
  behavior for same version IGMP Proxying, e.g. v2
  to v2, v3 to v3.
• Some scenarios that upstream network and
  downstream networks perform different version of
  IGMP
• Proxy can perform mixed version IGMP Proxying in
  these scenarios

3
4 Mixed Version Proxying Scenarios

• v3 to v2 upstream network performs IGMPv2,
  downstream networks perform IGMPv3
• v2 to v3 upstream network performs IGMPv3,
  downstream networks perform IGMPv2
• mixed to v2 upstream network performs v2, both
  v2 and v3 downstream networks
• mixed to v3 upstream network performs v3, both
  v2 and v3 downstream networks

4
IGMPv3 to IGMPv2 Proxying

• Proxy performs v2 host portion on upstream link,
  v3 router portion on downstream links
• Downstream v3 subscriptions are converted to v2
  subscriptions
• Changes are reported on upstream link if v2 state
  change is required
• v3 subscriptions are used to forward packets

5
IGMPv3 to IGMPv2 Proxying
6
IGMPv3 to IGMPv2 Proxying
7
IGMPv3 to IGMPv2 Proxying
8
IGMPv3 to IGMPv2 Proxying
9
IGMPv3 to IGMPv2 Proxying
10
IGMPv3 to IGMPv2 Proxying
11
IGMPv2 Fall Back in v3 to v2
12
IGMPv2 Fall Back in v3 to v2
13
IGMPv2 Fall Back in v3 to v2
14
IGMPv2 Fall Back in v3 to v2
(g1, g3)
lts2,g1gt, lts3,g3gt
(g1, g2)
lts1,g1gt, lts2,g2gt
15
IGMPv2 Fall Back in v3 to v2
16
IGMPv2 Fall Back in v3 to v2
17
IGMPv2 Fall Back in v3 to v2
18
SSM Considerations

• v3 to v2 as in SSM draft
• Proxy MAY have a configuration to send SSM
  subscriptions upstream
• SSM subscriptions MAY be processed by an router
  that still processes SSM reports

19
SSM Considerations Cont.

• v2 to v3
• Proxy SHOULD/MUST drop IGMPv2 subscriptions in
  SSM range
• Proxy MAY have a configuration to turn IGMPv2
  subscriptions into IGMPv3 subscriptions by
  pairing a source address

20
SSM Considerations Cont.

• Mixed downstream to v2 or v3 upstream
• Proxy May have the same configuration as in v3/v2
  to v2/v3
• SSM packets MAY be configured to forward to
  IGMPv2 interfaces
