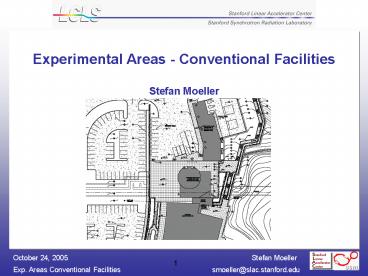

Experimental Areas - Conventional Facilities Stefan Moeller

1
Experimental Areas - Conventional Facilities
Stefan Moeller
2
Overview

• Experimental Areas
• Near Experimental Hall (NEH)
• Utilities
• Support shops
• Far Experimental Hall (FEH)
• Final design
• Hutch layout

3
Layout of Experimental Areas
Redesign
4
Near Experimental Hall

• Subbasement (tunnel level)
• 3 hutches, mirror area
• Adjacent control areas, support shops
• Basement level
• Laserbay (above hutches)
• Computer farm, shops

5
Near Hall Sub-Basement Layout
Optics lab
Electronic Shop
Mech. Shop
Wetlab
Electrical
Tele
Hutch 2
Hutch 1
Hutch 3
Flipper Mirror Tank Area
6
NEH Sideview
Laserbay
Tunnel
15ft
Hutches
7
Near Hall Basement Layout
offices
Machine Shop
Storage
Vac Shop
Computer Farm
Laserbay
8
Utilities

• Room Data Sheets
• Title 30 complete
• Review and Evaluation
• Mechanical (HVAC, temperature, cleanliness,
  gases, plumbing, exhaust)
• Electrical (power, lighting)
• ESH (eyewash, showers, shielding walls, fire
  protection, drains)
• Special Req. cable trays, crane, vibration, wall
  penetrations

9
Near Hall Sub Basement
10
N2 boil off station Gas bottle storage outside
Near Hall Basement
11
Far Experimental Hall

• New layout - one spacious cavern
• Flexible and large hutch layout
• Control areas and set up space
• Long access tunnel
• Support shops in adjacent building

12
FEH Cavern
31ft
46ft
13
FEH Layout
Access Tunnel 19ft, 300ft long
Hutches 1,2,3 gt30x30ft
X-Ray Tunnel 20ft
Control Area 1
Control Area 2
Control Area 3
46ft
212ft
