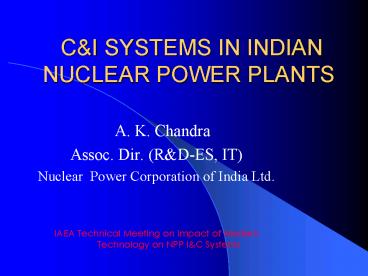

CI SYSTEMS IN INDIAN NUCLEAR POWER PLANTS

• A. K. Chandra
• Assoc. Dir. (RD-ES, IT)
• Nuclear Power Corporation of India Ltd.
• IAEA Technical Meeting on Impact of Modern
  Technology on NPP IC Systems

2
The Present NPP Scenario in India

• 15 operating NPPs with a total capacity of 3360
  MWe
• 8 plants under construction with a total capacity
  of 3920 MWe including 5 PHWRs, 2 PWRs (VVERs) and
  1 PFBR.

3

4
(No Transcript)
5
(No Transcript)
6
Main Control Room Philosophy in TAPP-34

• Main Control Room employs hybrid systems.
• System wise panels in the background and operator
  consoles in front.
• Panels for different plant functions contain
  discrete control devices and displays.
• Comprehensive Plant Status available on COIS
  screens on each panel.
• Operator consoles provide displays and
  interaction facilities for individual system.

7
Evolution of Computer Based Systems in Indian
NPPs

• Computerization of Monitoring functions began
  from MAPS (1987)
• - Channel Temperature Monitoring System
• Control Functions NAPS (1990)
• - Reactor Regulating System
• - Control of on-power refueling machines
• - Control Room Computer System
• - Digital Recording System
• Protection function KAPS (1993)
• - Programmable Digital Comparator System
• KGS-1,2 RAPS-3,4
• - Programmable Logic Comparator
• - Process Control System

8
Evolution of Computer Based Systems in Indian
NPPs (Contd.)

• All major Control, Monitoring, Test
  Surveillance and Operator Information functions
  in TAPP-3, 4 are CBS.
• Some protection functions use microprocessors
• Information from these systems and from stand
  alone controllers recorders sent to a
  Computerized Operator Information System (COIS)
  through Gateways
• Information from COIS sent over VSAT to HQ

9
Technology Employed for Computer Based Systems

• All CBS employed for IC are custom built
• All CBS are designed and developed indigenously
  by NPC and other organizations
• Hardware manufacture, integration and
  installation by Electronics Corporation of India.
• Verification and Validation carried out by an
  independent IV V Committee.

10
TAPP-3,4 Systems Developed At NPCIL

• ECCS Test Facility
• Instrumented Channel Monitoring System
• Test and Monitoring System - 2
• Reactor Parameter Display System
• COIS Gateway
• Portable Recording System
• Neutronic Trip Unit
• Centralized Operating Plant Information System

11
TAPP-3,4 Systems Developed By Other Organizations

• Reactor Regulating System
• Process Control System
• Prog Digital Comparator System Safety
• Prog Digital Comparator System Control
• Channel Temperature Monitoring System
• Flux Mapping System
• Test and Monitoring System 1
• Computerized Operator Information System
• Programmable Logic Comparator

12
Support Issues for CBS

• Systems are required to be supported for their
  life span
• Changes are required due to
• Operational feedback
• Regulatory requirements
• Hardware obsolescence
• Original developers move on to other challenges

13
The Challenge Ahead

• Large numbers of Operating stations of differing
  vintage to be supported
• Large numbers of plants under construction
• Implementation of the system for the same
  function varies with station reflecting the state
  of the art at that time

14
The Challenge Ahead (Contd.)

• Prototypes are required to be maintained in the
  laboratory to ascertain behaviour of system under
  postulated conditions
• Large variety of prototypes are required because
  of differing implementations at various stations
• Leads to high resource requirements Cost, Space,
  Manpower

15
The Challenge Ahead (Contd.)

• In addition, development work is to be carried
  out for the CBS CI for the new power plants
  under construction

16
Current Development Work for RKnew

• Reactor Regulating System
• Process Control System
• Prog Digital Comparator System Safety
• Prog Digital Comparator System Control
• Channel Temperature Monitoring System
• ECCS Test facility
• Reactor Parameter Display System
• COIS Gateway
• Digital Recording System
• Electrical. SCADA (R-5,6)
• RMU

17
Meeting the Challenge

• Establishment of in-house facilities for support
  and development and testing
• STANDARDIZATION !
• Across the systems
• Across the stations

18
Meeting the Challenge (Contd.)

• STANDARDISATION OF ARCHITECTURES
• STANDARDISATION OF HARDWARE
• STANDARDISATION OF SOFTWARE
• STANDARDISATION OF H S I
• STANDARDISATION OF DOCUMENTATION

19
Standardisation Of Architectures

• Reduction in overall development time for all
  systems.
• Reduction in amount of documentation
• Reduced time required for VV
• Reduction in requirement for support to be
  provided to systems in stations.

20
Operator Interface Unit
Server
RTU
21
Standardisation of Architectures (Contd.)

• Develop systems for all new plants using generic
  architecture
• Retrofit the same in operating stations at an
  appropriate opportunity

22
Engineering Procedures defined to

• Introduce standardization in development process
• Achieve (repeatable) quality
• Conform to AERB SG-D25
• Standardize development contracts

23
Engineering Procedures cover

• Work Methods for design, development, testing and
  commissioning of CBS
• Documents to be produced at various stages of
  life cycle (and the nature and structure of
  information content of the same)
• Methodology for preparation, review and approval
  of documents

24
Precise and Exhaustive Documents are required to
be produced because systems will be reviewed,
used and supported by people other than those who
designed the system.
25
REGULATOR
USER
DESIGNER
DEVELOPER
MANUFACTURER
REVIEWER
INTERNAL QA VV
AGENCIES IN LIFE CYCLE
26
Independent V V in NPCIL

• Design Basis Report (DBR), approved by AERB, is
  the baseline document.
• The reviews are carried out at each stage of
  system development
• For each system, a Task Force is responsible for
  the entire review process
• Full documentation with IVV reports are
  submitted for licensing with AERB

27
