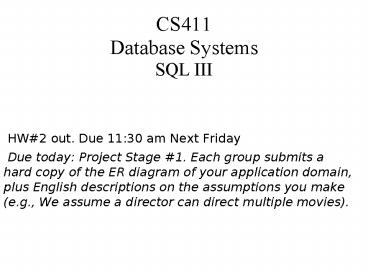

CS411 Database Systems SQL III

1
CS411Database SystemsSQL III

• HW2 out. Due 1130 am Next Friday
• Due today Project Stage 1. Each group submits
  a hard copy of the ER diagram of your application
  domain, plus English descriptions on the
  assumptions you make (e.g., We assume a director
  can direct multiple movies).

2
Subqueries powerful boolean operators

• IN
• EXISTS
• ANY
• ALL

3
EXISTS

• EXISTS( ltrelationgt ) is true if and only if the
  ltrelationgt is not empty.
• SELECT FROM students s
• WHERE EXISTS(SELECT FROM enroll e WHERE
  year2007 AND e.sids.sid)

4
NOT EXISTS

• EXISTS( ltrelationgt ) is true if and only if the
  ltrelationgt is not empty.
• SELECT FROM students s
• WHERE NOT EXISTS(SELECT FROM enroll e WHERE
  year2007 AND e.sids.sid)

5
IN

• SELECT FROM STUDENT
• WHERE sid IN (1645,1323,1532,123)
• Can be used to efficiently retrieve a large
  number of specific records. But watch out for
  max. length of SQL statement. e.g only retrieve
  200 at a time, not 20000.
• Here's an alternative-
• sid1645 OR sid1323 OR sid1532 OR sid123

6
IN

• SELECT FROM students
• WHERE sid IN (SELECT sid FROM enroll WHERE
  year2007)

7
NOT IN

• SELECT FROM students
• WHERE sid NOT IN (SELECT sid FROM enroll WHERE
  year2007)

8
Would this work instead?

• SELECT s.sid FROM students s, enroll e
• WHERE s.sid ! e.sid

9
Would this work instead?

• SELECT s.sid FROM students s, enroll e
• WHERE s.sid ! e.sid
• No. Remember inner loop semantics...
• FOR s in STUDENT
• FOR e in ENROLL
• IF s.sid ! e.sid PRINT s.sid

10
Give me DISTINCT tuples!

• for which years do I have enrollment data?
• SELECT year FROM enroll
• ... large of rows!

11
Give me DISTINCT tuples!

• for which years do I have enrollment data?
• SELECT year FROM enroll
• ... large of rows!
• SELECT DISTINCT year FROM enroll
• year
• 2004
• 2005
• 2006

12
ALL, ANY

• x gt ANY(ltrelationgt) x is larger than at least
  one tuple.
• x gt ALL(ltrelationgt) x is larger than all tuples.
• ... can also use lt gt lt eg x ltANY(R)

13
Students that started earlier than our of
enrollment information?Which SQL is correct?

• SELECT FROM students s
• WHERE s.startyear lt ANY(SELECT DISTINCT year
  FROM enroll)
• SELECT FROM students s
• WHERE s.startyear lt ALL(SELECT DISTINCT year
  FROM enroll)

14
Students that started earlier than our of
enrollment information?

• SELECT FROM students s
• WHERE s.startyear lt ANY(SELECT DISTINCT year
  FROM enroll)
• students that started before latest year
• SELECT FROM students s
• WHERE s.startyear lt ALL(SELECT DISTINCT year
  FROM enroll)

15
Except Union Intersect

• There's often more than one way to write a query
• SELECT sid FROM students
• WHERE sid NOT IN (SELECT sid FROM enroll WHERE
  year2007)
• SELECT sid FROM students EXCEPT SELECT sid FROM
  enroll WHERE year2007

16
Subqueries as a single value

• WHERE price(SELECT price FROM r WHERE ... )
• A run-time error occurs if there is no tuple or
  more than one tuple.

17
Example

• From Sells(bar, beer, price), find the bars that
  serve Miller for the same price Joe charges for
  Bud.
• Two queries would surely work
• Find the price Joe charges for Bud.
• Find the bars that serve Miller at that price.

18
Query Subquery Solution

• SELECT bar
• FROM Sells
• WHERE beer Miller AND
• price (SELECT price
• FROM Sells
• WHERE bar Joes Bar
• AND beer Bud)

The price at which Joe sells Bud
19
Example

• From Beers(name, manf) and Likes(drinker, beer),
  find the name and manufacturer of each beer that
  Fred likes.
• SELECT
• FROM Beers
• WHERE name IN

The set of beers Fred likes
20
Example

• From Beers(name, manf) and Likes(drinker, beer),
  find the name and manufacturer of each beer that
  Fred likes.
• SELECT
• FROM Beers
• WHERE name IN (SELECT beer
• FROM Likes
• WHERE drinker Fred)

The set of beers Fred likes
21
The Exists Operator

• EXISTS( ltrelationgt ) is true if and only if the
  ltrelationgt is not empty.
• Being a boolean-valued operator, EXISTS can
  appear in WHERE clauses.
• Example From Beers(name, manf), find those beers
  that are the only beer by their manufacturer.

22
Example Query with EXISTS

• SELECT name
• FROM Beers b1
• WHERE NOT EXISTS(
• SELECT
• FROM Beers
• WHERE manf b1.manf AND
• name ltgt b1.name)

Notice scope rule manf refers to closest nested
FROM with a relation having that attribute.
Set of beers with the same manf as b1, but not
the same beer
23
The Operator ANY

• x ANY( ltrelationgt ) is a boolean condition
  meaning that x equals at least one tuple in the
  relation.
• Similarly, can be replaced by any of the
  comparison operators.
• Example x gt ANY( ltrelationgt ) means x is not
  smaller than all tuples in the relation.
• Note tuples must have one component only.

24
The Operator ALL

• Similarly, x ltgt ALL( ltrelationgt ) is true if and
  only if for every tuple t in the relation, x is
  not equal to t.
• That is, x is not a member of the relation.
• The ltgt can be replaced by any comparison
  operator.
• Example x gt ALL( ltrelationgt ) means there is no
  tuple larger than x in the relation.

25
Example

• From Sells(bar, beer, price), find the beer(s)
  sold for the highest price.
• SELECT beer
• FROM Sells
• WHERE price gt ALL(
• SELECT price
• FROM Sells)

price from the outer Sells must not be less than
any price.
26
Relations as Bags
27
Relational Algebra Operations on Bags

• Union a,b,b,c U a,b,b,b,e,f,f
  a,a,b,b,b,b,b,c,e,f,f
• add the number of occurrences
• Difference a,b,b,b,c,c b,c,c,c,d a,b,b
• subtract the number of occurrences
• Intersection a,b,b,b,c,c b,b,c,c,c,c,d
  b,b,c,c
• minimum of the two numbers of occurrences
• Selection preserve the number of occurrences
• Projection preserve the number of occurrences
  (no duplicate elimination)
• Cartesian product, join no duplicate elimination

Read Section 5.3 of the book for more detail
28
Intersection Example

• From relations Likes(drinker, beer), Sells(bar,
  beer, price) and Frequents(drinker, bar), find
  the drinkers and beers such that
• The drinker likes the beer, and
• The drinker frequents at least one bar that
  sells the beer.

29
Intersection Example

• From relations Likes(drinker, beer), Sells(bar,
  beer, price) and Frequents(drinker, bar), find
  the drinkers and beers such that
• The drinker likes the beer, and
• The drinker frequents at least one bar that
  sells the beer.
• (SELECT FROM Likes)
• INTERSECT

30
Solution

• (SELECT FROM Likes)
• INTERSECT
• (SELECT drinker, beer
• FROM Sells, Frequents
• WHERE Frequents.bar Sells.bar
• )

31
Bag Semantics for SELECT

• SELECT-FROM-WHERE statement uses bag semantics,
• ... unless you specify DISTINCT

32
Bag Semantics for SELECT

• SELECT-FROM-WHERE statement uses bag semantics,
• ... unless you specify DISTINCT
• UNION, INTERSECTION, and DIFFERENCE
• use set semantics!
• That is, duplicates are eliminated as the
  operation is applied. ... unless you specify ALL

33
Motivation Efficiency

• When doing projection in relational algebra, it
  is easier to avoid eliminating duplicates.
• Just work one tuple-at-a-time.
• When doing intersection or difference, it is most
  efficient to sort the relations first.
• At that point you may as well eliminate the
  duplicates anyway.

34
Controlling Duplicate Elimination

• Force the result to be a set by SELECT
  DISTINCT . . .
• Force the result to be a bag (i.e., dont
  eliminate duplicates) by ALL, as in . . .
  UNION ALL . . .

35
Example DISTINCT

• From Sells(bar, beer, price), find all the
  different prices charged for beers
• SELECT DISTINCT price
• FROM Sells
• Notice that without DISTINCT, each price would be
  listed as many times as there were bar/beer pairs
  at that price.

36
Example ALL

• Using relations Frequents(drinker, bar) and
  Likes(drinker, beer)
• (SELECT drinker FROM Frequents)
• EXCEPT ALL
• (SELECT drinker FROM Likes)
• Lists drinkers who frequent more bars than they
  like beers, and does so as many times as the
  difference of those counts.

37
Join Expressions
38
Join Expressions

• SQL provides a number of expression forms that
  act like varieties of join in relational algebra.
• But using bag semantics, not set semantics.
• These expressions can be stand-alone queries or
  used in place of relations in a FROM clause.

39
Products and Natural Joins

• Natural join is obtained by
• R NATURAL JOIN S
• Cartesian Product is obtained by
• R CROSS JOIN S
• E.g.
• Likes NATURAL JOIN Serves
• Relations can be parenthesized subexpressions

40
Blessed are the NULL makers

• LEFT
• RIGHT
• FULL

41
Outer Join creates NULLs for us

• Product(pid,pname) Order(oid,pid,cname)
• 2 Plant 111 2 Amy
• 3 Chocolate
• Product NATURAL JOIN Order
• pid pname oid cname
• 2 Plant 111 Amy
• ... oops we lost Chocolate.

42
Outer Join creates NULLs for us

• Product(pid,pname) Order(oid,pid,cname)
• 2 Plant 111 1 Amy
• 3 Chocolate
• Product NATURAL LEFT OUTER JOIN Order
• pid pname oid cname
• 2 Plant 112 Amy
• 3 Chocolate NULL NULL

43
Theta Join

• R JOIN S ON ltconditiongt is a theta-join, using
  ltconditiongt for selection.
• Example using Drinkers(name, addr) and
  Frequents(drinker, bar)
• Drinkers JOIN Frequents ON
• name drinker
• gives us all (d, a, d, b) quadruples such that
  drinker d lives at address a and frequents bar b.

44
Challenge

• Average price of beer?
• of beers in our database?
• Average price of beer per bar?
• Sells(bar,beer,price)

45
Grouping and Aggregation
46

• We need Aggregation
• how to group rows?
• Group By
• Having 'where clause but for groups'

47
Aggregations

• SUM, AVG, COUNT, MIN, and MAX can be applied to a
  column in a SELECT clause to produce that
  aggregation on the column.
• Also, COUNT() counts the number of tuples.

48
Example Aggregation

• From Sells(bar, beer, price), find the average
  price of Bud
• SELECT AVG(price)
• FROM Sells
• WHERE beer Bud

49
Eliminating Duplicates in an Aggregation

• DISTINCT inside an aggregation causes duplicates
  to be eliminated before the aggregation.
• Example find the number of different prices
  charged for Bud
• SELECT COUNT(DISTINCT price)
• FROM Sells
• WHERE beer Bud

50
NULLs Ignored in Aggregation

• NULL never contributes to a sum, average, or
  count, and can never be the minimum or maximum of
  a column.
• But if there are no non-NULL values in a column,
  then the result of the aggregation is NULL.

51
Example Effect of NULLs

• SELECT count()
• FROM Sells
• WHERE beer Bud
• SELECT count(price)
• FROM Sells
• WHERE beer Bud

52
Grouping

• We may follow a SELECT-FROM-WHERE expression by
  GROUP BY and a list of attributes.
• The relation that results from the
  SELECT-FROM-WHERE is grouped according to the
  values of all those attributes, and any
  aggregation is applied only within each group.

53
Example Grouping

• From Sells(bar, beer, price), find the average
  price for each beer
• SELECT beer, AVG(price)
• FROM Sells
• GROUP BY beer

54
Example Grouping

• From Sells(bar, beer, price) and
  Frequents(drinker, bar), find for each drinker
  the average price of Bud at the bars they
  frequent
• SELECT drinker, AVG(price)
• FROM Frequents, Sells
• WHERE beer Bud AND
• Frequents.bar Sells.bar
• GROUP BY drinker

55
Restriction on SELECT Lists With Aggregation

• If any aggregation is used, then each element of
  the SELECT list must be either
• Aggregated, or
• An attribute on the GROUP BY list.
• Why?

56
Illegal Query Example

• You might think you could find the bar that sells
  Bud the cheapest by
• SELECT bar, MIN(price)
• FROM Sells
• WHERE beer Bud
• But this query is illegal in SQL.
• Why? Note bar is neither aggregated nor on the
  GROUP BY list.

57
HAVING Clauses

• HAVING ltconditiongt may follow a GROUP BY clause.
• If so, the condition applies to each group, and
  groups not satisfying the condition are
  eliminated.

58
Requirements on HAVING Conditions

• These conditions may refer to any relation or
  tuple-variable in the FROM clause.
• They may refer to attributes of those relations,
  as long as the attribute makes sense within a
  group i.e., it is either
• A grouping attribute, or
• Aggregated.

59
Example HAVING

• From Sells(bar, beer, price) and Beers(name,
  manf), find the average price of those beers that
  are either served in at least three bars or are
  manufactured by Petes.

60
Example HAVING

• From Sells(bar, beer, price) and Beers(name,
  manf), find the average price of those beers that
  are either served in at least three bars or are
  manufactured by Petes.
• SELECT beer, AVG(price)
• FROM Sells
• GROUP BY beer
• HAVING ...

61
Solution

• SELECT beer, AVG(price)
• FROM Sells
• GROUP BY beer
• HAVING COUNT(DISTINCT bar) gt 3 OR beer IN
  (SELECT name
• FROM Beers
• WHERE manf Petes)

62
General form of Grouping and Aggregation

• SELECT S
• FROM R1,,Rn
• WHERE C1
• GROUP BY a1,,ak
• HAVING C2
• S may contain attributes a1,,ak and/or any
  aggregates but NO OTHER ATTRIBUTES
• C1 is any condition on the attributes in
  R1,,Rn
• C2 is any condition on aggregate expressions or
  grouping attributes

63
General form of Grouping and Aggregation

• SELECT S
• FROM R1,,Rn
• WHERE C1
• GROUP BY a1,,ak
• HAVING C2
• Evaluation steps
• Compute the FROM-WHERE part, obtain a table with
  all attributes in R1,,Rn
• Group by the attributes a1,,ak
• Compute the aggregates in C2 and keep only groups
  satisfying C2
• Compute aggregates in S and return the result

64
Database Modification
65
Database Modifications

• A modification command does not return a result
  as a query does, but it changes the database in
  some way.
• There are three kinds of modifications
• Insert a tuple or tuples.
• Delete a tuple or tuples.
• Update the value(s) of an existing tuple or
  tuples.

66
Insertion

• To insert a single tuple
• INSERT INTO ltrelationgt
• VALUES ( ltlist of valuesgt )
• Example add to Likes(drinker, beer) the fact
  that Sally likes Bud.
• INSERT INTO Likes
• VALUES(Sally, Bud)

67
Specifying Attributes in INSERT

• We may add to the relation name a list of
  attributes.
• There are two reasons to do so
• We forget the standard order of attributes for
  the relation.
• We dont have values for all attributes, and we
  want the system to fill in missing components
  with NULL or a default value.

68
Example Specifying Attributes

• Another way to add the fact that Sally likes Bud
  to Likes(drinker, beer)
• INSERT INTO Likes(beer, drinker)
• VALUES(Bud, Sally)

69
Inserting Many Tuples

• We may insert the entire result of a query into a
  relation, using the form
• INSERT INTO ltrelationgt
• ( ltsubquerygt )

70
Example Insert a Subquery

• Using Frequents(drinker, bar), enter into the new
  relation PotBuddies(name) all of Sallys
  potential buddies, i.e., those drinkers who
  frequent at least one bar that Sally also
  frequents.

71
Solution
The other drinker
Pairs of Drinker tuples where the first is for
Sally, the second is for someone else, and the
bars are the same.

• INSERT INTO PotBuddies
• (SELECT d2.drinker
• FROM Frequents d1, Frequents d2
• WHERE d1.drinker Sally AND
• d2.drinker ltgt Sally AND
• d1.bar d2.bar
• )
