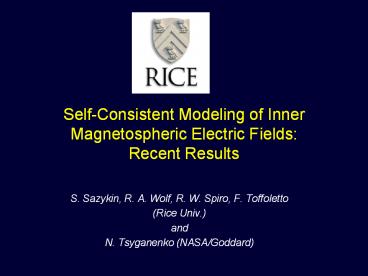

Self-Consistent Modeling of Inner Magnetospheric
Electric FieldsRecent Results
  • S. Sazykin, R. A. Wolf, R. W. Spiro, F.
    Toffoletto
  • (Rice Univ.)
  • and
  • N. Tsyganenko (NASA/Goddard)

2
Outline
  • This presentation will focus on using the RCM to
    model at the March 31, 2001 storm.
  • We have done different kinds of runs through the
    event and learned a lot of different things.
  • What governs the creation of SAPS and the local
    time location of the pressure peak?
  • Location of main-phase-ring-current pressure peak
  • 4 runs through an idealized storm
  • RCM runs using Tsyganenko major-storm magnetic
    field model and Tsyganenko-Mukai plasma-sheet
    model.
  • Use of new magnetic field model puts SAPS at more
    realistic latitude.
  • Use of Tsyganenko-Mukai with new B-model leads to
    Golovchanskaya-Maltsev interchange instability.
  • Use of new magnetic field model improves the
    plasmapause location.
  • Summary

3
Event March 31, 2001 magnetic storm
  • A CME and related interplanetary shocks caused a
    large magnetic storm early on 3/31/2001, with a
    minimum Dst of 400 nT. The polar cap potential
    reached 200 kV, and the magnetopause was
    compressed to within the geosync. orbit.
  • During the storm, IMF Bz repeatedly became large
    negative (southward) driving strong
    magnetospheric convection, and then positive
    (northward) resulting in convection decreases.
  • Large subauroral electric fields (SAPS) were
    observed by DMSP and Millstone Hill incoherent
    scatter radar. IMAGE HENA instrument provided
    spatial images of ring current particle fluxes in
    the inner magnetosphere.
  • RCM was run though the 2-day event
    (3/30/2001-3/31/2001). Time-dependent inputs were
    based on ACE lagged data as well as DMSP polar
    cap potential estimates.

4
  • SAPS lies in region of downward Birkeland
    current.
  • It lies on, and just equatorward of, the
    equatorward edge of auroral conductance
    enhancement.
  • Pressure peak location in good agreement with
    HENA.

5
Questions raised by the RCM run
  1. What causes the SAPS?
  2. What causes the main-phase-ring-current pressure
    to peak around midnight?
  3. Why does the RCM get SAPS (and equatorward edge
    of electron aurora) at too high a latitude?

6
Runs Through Idealized Version of March 31 Storm
  • The RCM runs consistently show two features that
    have recently been observed
  • SAPS and near-midnight pressure peak. We are
    doing these runs to try to determine what
    physical inputs affect those observed features.
  • Objective is to explore cause-and-effect
    relationships involving
  • SAPS
  • Location of pressure peak
  • Idealized inputs.
  • Idealized storm has only one period of strong
    convection, whereas real storm had two.
  • 4 runs
  • Uniform dawn-dusk E
  • Self-consistent RCM electric field but with
    uniform conductance.
  • Add auroral enhancement
  • Full-up RCM with conductance model that includes
    both auroral enhancement and day-night asymmetry

7
RCM with uniform dawn-to-dusk electric field
8
RCM with uniform total conductances
9
RCM with uniform background conductances but
with an auroral zone
10
Full RCM
11
Summary SAPS and the location of Pmax
  • Results from the RCM show that having a
    self-consistent E-field and a consistent auroral
    zone conductance is essential to re-producing
    SAPS and twisting of equipotentials in modeling.
    (and thus, the location of Pmax ).
  • The run that had an auroral zone but no dayside
    ionization produced a SAPS that stretches across
    the dusk side but doesnt extend to local
    midnight. SAPS are actually not observed much in
    early afternoon but are often observed near and
    past the midnight region.

12
Physical Interpretation of SAPS
  • In the pre-midnight sector, plasma-sheet ions
    penetrate closer to Earth than electrons.
  • Electrons mostly control ionospheric conductance.
  • Therefore, in the premidnight sector, the inner
    edge of the plasma-sheet ions lies at lower L
    than the auroral conductance enhancement.
  • Most of the shielding (region-2) current is
    driven by ions, because they carry most of the
    pressure.
  • Therefore, some region-2 current flows into
    low-conductance, subauroral ionospheric region in
    the pre-midnight sector. Causing the strong
    electric field in SAPS in the RCM.

Electrons
Ions
13
Physical Interpretation of SAPS
Arrows represent Pedersen and Birkeland currents.
Colors represent conductance.
  • SAPS occur where substantial poleward currents
    have to flow across regions of low conductance
    (blue).
  • The RCMs SAPS events occur by the mechanism that
    Southwood and Wolf (JGR, 83, 5227, 2978) proposed
    to explain SAID events (aka polarization jets)
  • Separation between inner edges of plasma sheet
    ions and electrons is greater for major storms
    than for shorter bursts of strong convection.

14
Role of the Magnetic field model
  • Traditionally, Hilmer and Voigt JGR, 5613, 1995
    was used with the RCM.
  • SAPS, as well as other structures, have
    frequently been correctly predicted, but at wrong
    locations. We suspect that much of this
    discrepancy is due to inaccurate mappings of
    field lines from the ionosphere to the equatorial
    plane.
  • Role of B-field (through flux-tube volume V)is
    to affect distribution of P
  • Recently, Tsyganenko et al. JGR, 2003 published
    a new, data-based storm time B-field model that
    was specifically designed to account for severe
    distortion of the inner (lt10 Re) magnetosphere
    during large storms.
  • Two RCM runs for the storm are compared, with HV
    and T03 magnetic fields

15
T03 mapping for March 31, 2001 (from N.
Tsyganenko)
Distortion of B-field line of constant ? that
maps out to 3RE before the storm, will map to 9
RE midnight and gt 9 Re in the dusk sector during
the time Dst is rapidly decreasing, affecting the
location and shielding ability of the region-2
field-aligned currents.
16
Comparison with DMSP using T03 magnetic field
model Sample results
  • On the next 2 slides plots RCM computed drifts
    are compared to DMSP drift data
  • Results show that while there has been
    improvement, the RCM places the SAPS location
    poleward of where the data indicate
  • Also the magnitudes of the RCM-computed electric
    fields are in many cases too high
  • The plots also show the locations of the
    RCM-computed and measured equatorward edge of the
    electron precipitation
  • The model places them approximately correctly
    relative these boundaries.
  • Although in several cases the data indicate that
    there is significant displacement between between
    the precipitation boundary and the SAPS location.

17
Northern Hemisphere pass
MLT 21
18
Southern Hemisphere Pass
Southern Hemisphere pass
MLT 21
19
Comments
  • We in the process of evaluating the source of the
    discrepancy, there are several possibilities
  • The magnetic field
  • The ionospheric conductivity model
  • The ionosphere is more complex that many
    magnetospheric modelers care to admit.
  • Modeling these effects properly will involve
    coupling an ionosphere model actively to a
    magnetosphere model. This kind of active coupling
    is beginning, for example with Hubas SAMI-2
    model.
  • The input cross polar cap electric field model

20
Interchange - preliminary results
  • Using the T03 and the Tsyganenko and Mukai 2003
    (TM03) plasma-sheet model as inputs to the RCM
    during the March- 31, 2001 storm
  • In these runs the plasma boundary condition was
    varied with universal time, as specified by TM03
    which uses solar wind input
  • While the plasma boundary condition varied with
    universal time, it did not vary with local time
  • Results indicate the occurrence of interchange
    during reductions in solar wind density that may
    have ionospheric signatures.
  • This may be related to the interchange discussed
    Golovchanskaya and Maltsev (JGR., 108 (A3), doi
    10.1029/2002JA009505, 2003

21
(No Transcript)
22
Plasmapause locations is controlled by E-field
(P)HV T03
EUV-derived plasmapause is denoted by blue
diamonds. Tail is formed by overall E.
EUV data from J. Goldstein
23
Summary
  • Two recently established observational features
    are displayed by RCM runs through the March 31,
    2001 storm
  • SAPS events
  • Main-phase ring current pressure peaks near local
    midnight
  • SAPS occur in RCM through Southwood-Wolf
    mechanism. Essential ingredients are
  • Ion pressure gradient equatorward of electrons on
    dusk side
  • Low conductance equatorward of electrons
  • Pressure maximum is near local midnight.
    Contributing factors
  • Self-consistently calculated electric field
  • Day-night conductance asymmetry
  • Use of new Tsyganenko major-storm magnetic field
    model improves agreement between RCM and observed
    SAPS latitude.
  • With local-midnight plasma-sheet density and
    temperature taken from Tsyganenko-Mukai (2003),
    RCM predicts Golovchanskaya-Maltsev interchange
    instability in plasma sheet after solar-wind
    density decrease.
  • Overall improvement of Plasmasphere location

24
(No Transcript)
25
(No Transcript)
26
SAPS/SAIDs in Old Runs of the Rice Convection
Model
1150 UT on Sept.19, 1976. MLT?19. Figure adapted
from Harel et al., (JGR, 86, 2242, 1981).
  • This event was a substorm (not associated with a
    storm).
  • The E-field peak was identified as a SAID
    (polarization jet) event.
  • RCM got the E-field peak sort of right--but not
    intense enough and too broad.
  • Region-2 currents flow in E-field peak and
    conductance is low there.

27
The Rice Convection Model (RCM)
  • Plasma sheet/ring current population is
    represented by 85 proton, 85 O and 27 electron
    isotropic fluids with energy invariants ?s and
    flux-tube contents ?s which are related to
    kinetic energy Ws, number density ns, and total
    particle pressure P through the flux tube
    volume
  • Initially, the magnetosphere is empty. The
    boundary condition on the plasma fluxes is either
    constant or vary with time based on the
    statistical relationships of Tsyganenko and Mukai
    JGR, 2003. Boundary condition is uniform in
    local time.
  • In addition, a plasmasphere is implemented with
    refilling time constants taken from Lambour et
    al. JGR, 24351, 1997.

28
The Rice Convection Model (RCM) -2
  • The RCM advects each fluid by solving
  • where ? is the potential in an inertial
    frame, and L represents charge-exchange (ions)
    and precipitation (electrons) losses. ?i is found
    by solving the Vasyliunas equation using the
    GMRES iterative algorithm
  • The loss terms for the ions are outflow through
    the dayside magnetopause and charge-exchange with
    geocorona. Electrons are lost by precipitation
    into the atmosphere at a fraction (0.3) of the
    strong-pitch-angle-scattering limit.
  • ? has contributions from solar EUV conductances
    (IRI-90) and auroral zone conductances (computed
    consistently from the plasma sheet particle
    distribution).

29
SAPS/SAIDs in Old Runs of the Rice Convection
Model
1150 UT on Sept.19, 1976. MLT?19. Figure adapted
from Harel et al., (JGR, 86, 2242, 1981).
  • This event was a substorm (not associated with a
    storm).
  • The E-field peak was identified as a SAID
    (polarization jet) event.
  • RCM got the E-field peak sort of right--but not
    intense enough and too broad.
  • Region-2 currents flow in E-field peak and
    conductance is low there.

30
In the RCM, E-fields are determined by pressure
gradients
  • Electric fields are calculated theoretically.
  • Models based on these equations imply that the
    inner edge of the plasma sheet tends to shield
    the inner magnetosphere from the main force of
    convection
  • .

Eshield
31
Recent Results Location of Pmax
  • In the simple classical picture, peak of Pmax
    is formed on the dusk side. If a simple E-field
    model is assumed, then positive ions (H and O)
    grad./curv. drift sunward and westward.
  • In the RCM, at the inner edge of the ring
    current/plasma sheet, there is a twisting of
    equipotentials that complicates the electric
    fields and brings drifting ions back toward
    midnight.
  • Sometimes, fluxes in certain energy ranges can
    peak postmidnight.
  • What (in the model) determines distribution of P
    in the inner magnetosphere?
  • Use 4 idealized test runs
Write a Comment
User Comments (0)
About PowerShow.com
