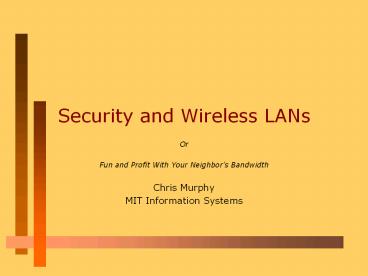

Security and Wireless LANs

1
Security and Wireless LANs

• Or
• Fun and Profit With Your Neighbors Bandwidth
• Chris Murphy
• MIT Information Systems

2
The Problem

• Wireless LANs broadcast your network connections
• Radio doesnt care about firewalls
• Data can be captured without physical access
• Network resources can be hijacked

3
(No Transcript)
4
The Solution?

• Access Control
• By MAC addresses
• By network names (SSID)
• Data Encryption
• WEP (Wired Equivalent Privacy)
• Can also be used for access control
• All these schemes have limits and flaws

5
MAC Address Access Control

• Access Points have a list of allowed MAC
  addresses
• Often stored in each Access Point
• Limited to about 500 addresses
• Some products use a server-based list, using
  systems like RADIUS
• Easily defeated by sniffing for an allowed address

6
SSID Access Control

• Normally, the SSID is broadcast in beacon packets
• A closed network does not include the SSID in
  beacons
• NOT part of the 802.11 standard
• Has a fatal flaw..

7
Normal open network
8
Closed network (SSID PEAKABOO)
9
Now a client wants to join the network..
10
and an access point responds.
11
Data Encryption

• WEP Wired Equivalent Privacy
• 40 bit RC4, 128 bit optional
• Most APs support up to 4 keys
• How do you manage keys in a large organization?
• This assumes all users are good guys

12
Data Encryption

• A group at Berkeley has published some flaws in
  WEP
• http//www.isaac.cs.berkeley.edu/isaac/wep-faq.htm
  l
• Outlines a number of design flaws in WEP
• A number of (currently theoretical) attacks are
  outlined in the referenced document
• A response from the IEEE 802.11 group chair is
  available at http//www.wi-fi.com/pdf/Wi-FiWEPSec
  urity.pdf

13
Spread Spectrum as Security?

• Spread Spectrum technology, while touted as
  difficult to intercept, offers little here as
  NICs are preprogrammed with the spreading
  sequences and can talk to each other out of the
  box.

14
So What Are Our Options?

• While flawed, the described methods can provide
  some protection from casual abuse
• Treat wireless clients as remote clients
• Place APs outside firewalls
• Use VPNs to access internal network
• And as always, use secure protocols

15
Future Wireless Security

• 802.11e should provide a standards-based path for
  actual user authentication, and negotiation of
  user and session specific encryption keys
• This group is working in conjunction with the
  802.1x group, relating to per-port network access
  control
