Array Allocation Taking into Account SDRAM Characteristics

1

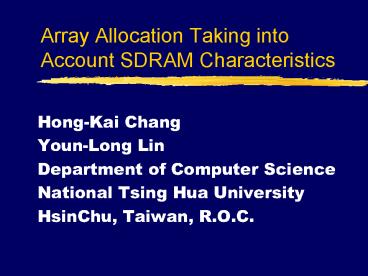

Array Allocation Taking into Account SDRAM
Characteristics

• Hong-Kai Chang
• Youn-Long Lin
• Department of Computer Science
• National Tsing Hua University
• HsinChu, Taiwan, R.O.C.

2
Outline

• Introduction
• Related Work
• Motivation
• Solving Problem
• Proposed Algorithms
• Experimental Results
• Conclusions and Future Work

3
Introduction

• SDRAMs multi-bank architecture enables new
  optimizations in scheduling
• We assign arrays to different SDRAM banks to
  increase data access rate

• Performance gap between memory and processor
• Systems without cache
• Application specific
• Embedded DRAM
• Optimize DRAM performance by utilize its special
  characteristics

4
Related Work

• Previous research eliminate memory bottleneck by
• Using local memory (cache)
• Prefetch data as fast as possible
• Panda, Dutt, and Nicolau utilizing page mode
  access to improve scheduling using EDO DRAM
• Research about array mapping to physical memories
  for low power, lower cost, better performance

5
Motivation

• DRAM operations
• Row decode
• Column decode
• Precharge

• SDRAM characteristics
• Multiple banks
• Burst transfer
• Synchronous

Traditional DRAM
2-bank SDRAM
6
Address Mapping Table
Host Address a16a0
Memory Address BA, A7-A0 Page Size for host
Page Size for
DRAM 128 words (a6a0)
256 words (A7A0)
-If we exchange the mapping of a0 and a7...
7
Motivational Example
BABankActive RowDecode R/WRead/Write
ColumnDecode BPPrecharge
8
Motivational Example
BABankActive RowDecode R/WRead/Write
ColumnDecode BPPrecharge
9
Assumptions

• Harvard architecture Separated program/data
  memory
• Paging policy of the DRAM controller
• Does not perform precharge after read/write
• If next access reference to different page,
  perform precharge, followed by bank active,
  before read/write
• As many pages can be opened at once as the number
  of banks
• Resource constraints

10
Problem Definition

• Input a data flow graph, the resource
  constraints, and the memory configuration
• Perform our bank allocation algorithm
• Schedule the operations with a static list
  scheduling algorithm considering SDRAM timing
  constraints
• Output a schedule of operations, a bank
  allocation table, and the total cycle counts

11
Bank Allocation Algorithm

• Calculate Node distances
• Calculate Array distances
• Give arrays with the shorter distances higher
  priority
• Allocate arrays to different banks if possible

12
Example SOR
main() float aNN, bNN, CNN,
dNN, eNN, fNN float omega, resid,
uNN int j,l for (j2 jltN j) for
(l1lltNl2) resid ajluj1l
bjluj-1l
cjlujl1
djlujl-1 ejlujl
fjl ujl -
omegaresid/ejl
13
Node Distance

• Distances between current node and the nearest
  node that access array a, b, c,. Shown in
• Ex. 1,-,-,-,-,-,-,1,- means the distances to
  the node that access array aj and uj-1 are
  both 1.
• - means the distance is still unknown
• When propagate downstream, the distance
  increases.

14
Array Distance

• The distance between nodes that access arrays
• Calculate from node distance of corresponding
  arrays
• Get the minimum value
• Ex. AD(aj, uj-1)min(2,4)2

15
Example SOR
Bank allocation Bank 0 c,d,e,f Bank 1
a,b,u
16
Experimental Characteristics

• We divided our benchmarks into two groups
• First group benchmarks access multiple 1-D arrays
• Apply our algorithm to arrays
• Second group benchmarks access single 2-D arrays
• Apply our algorithm to array rows
• Memory configurations
• Multi-bank configuration 2 banks/ 4banks
• Multi-chip configuration 2 chips/ 4chips
• Multi-chip vs mulit-bank relieves bus contention
• Utilizing page mode access or not

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Experimental Results

• From the average results, we can see that
• Scheduling using SDRAM with our bank allocation
  algorithm do improve the performance
• Utilizing page mode access relieves the traffic
  of address bus, thus the use of multiple chips
  does not make obvious improvement

21
Conclusions

• We presented a bank allocation algorithm
  incorporated in our scheduler to take advantages
  of SDRAM
• The scheduling results have a great improvement
  from the coarse one and beat Pandas work in some
  cases
• Our work is based on a common paging policy
• Several different memory configurations are
  exploited
• Scheduling results are verified and meet Intels
  PC SDRAMs spec

22
Future Works

• Extending our research to Rambus DRAM
• Grouping arrays to incorporating burst transfer
• Integration with other scheduling /allocation
  techniques
