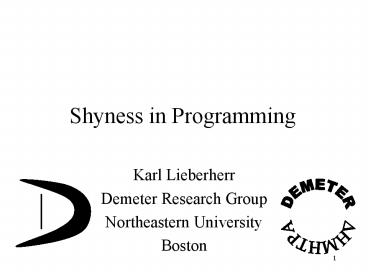

Title: Shyness in Programming
1Shyness in Programming
- Karl Lieberherr
- Demeter Research Group
- Northeastern University
- Boston
2XAspects
3Coupling Aspect-Oriented and Adaptive
ProgrammingShyness in Programming
- PhD Visitation Weekend 2003
4Our Intuition behind AOP
- Our Aspect-Oriented Programming (AOP) intuition
has been "adaptiveness". It comes in two
flavors adaptiveness - to the class graph ("painting the class graph in
broad strokes with code") and - to the call graph of the traversal ("picking
points in the graph where additional code gets
called").
5MIT Technology Review2001
- Aspect-oriented programming is called adaptive
programming at Northeastern University.
6Definitions
- y is x-shy if
- (1) y relies only on minimal information of x
- (2) y can adapt to small changes in x
- (3) y is loosely coupled with x
- (4) y can work with x1, x2, ... which are close
or similar to x. - What is a concern? A concern is something that
the programmer cares about.
7Examples of concerns the programmer has to deal
with
- Production concerns
- How do I compute the price allowing for multiple
pricing schemes? - Non-Production concerns
- What do I have to print to understand why this
program does not work? - Are all objects of class A created in class
Afactory?
8Scattering and Tangling Static
- aspecti is scattered across many classes (i
1,2,3) - class X tangles aspects 1, 2 and 3
class A consisting of three aspects
aspect1
aspect2
aspect3
class diagram
Class X
classes for aspect1
classes for aspect3
classes for aspect2
Adding to classes
9Scattering and Tangling Dynamic
- Each aspect (colors) is scattered across many
classes (shapes) - Class tangles all three aspects
program execution involving three aspects
(colors r b g)
this(s)
f(..)
target(t)
program call tree (classes executing method
calls)
Enhancing calls
t.f(..)
classes
At those calls the aspect enhances the behavior
10AP-Concern-shy
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks, say b1B1
and b2B2, that are woven together b1b2. b1
relies only on partial information about b2 which
makes b1 more robust and reusable. Goal b1
should be loosely coupled to b2.
11Law of Demeter (LoD) for Concerns
- A concern implementation should not rely on too
much information about other concern
implementations. - (Classic LoD A method should not rely on too
much information about other classes/objects.)
Ian Holland PhD 1992 Vice President of
Architecture and Systems Engineering at Kronos
Incorporated in Chelmsford, MA. 2200 empls.
12Adaptive Programming.
- AP-Concern-shy concerns shy of other concerns
- AP-Structure-shy concerns shy of graph structure
- AP-WildCard aspects shy through wildcards
- AspectJ , .., this, target, args, call,
execution, (call graph) - AP-Strategy three level model using strategies
- AP-Call aspects shy of call graph using
strategies - AspectJ cflow
- AP-Demeter behavior shy of class graph using
strategies advice on traversal - AP-DJ ClassGraph, Strategy, Visitor (in Java)
- AP-DAJ Strategy enhances ClassGraph Visitor
enhances traversal defined by Strategy (in
AspectJ) - AP-DemeterJ (new programming language)
50 pages of theory
Best of both worlds
13Adaptive Programming.
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
Alternative organization
- AP-Concern-shy
- AP-Graph-shy
- AP-CallGraph-shy
- AP-ClassGraph-shy
- AP-WildCard
- AP-Strategy
X-shy subX-shy Mechanism-to-achieve-shyness
14AP-Structure-shy
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1and b2Graph, that are woven together. b1
relies only on partial information about b2 which
makes b1 more robust and reusable. Goal b1
should be loosely coupled to b2. b1 enhances b2
at nodes and edges.
15AP-WildCard
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1 and b2Graph, that are woven together. b1 uses
wildcard techniques which makes b1 more robust
and reusable. Goal b1 should be loosely coupled
to b2.
16AP-Strategy
One contributor Ignacio Silva-Lepe PhD
1994 Currently at IBM Watson Research Lab
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1Strategy and b2Graph, that are woven
together. b1 reveals only partial information
about b2 which makes b1 more robust and reusable.
b1 is written against an abstraction of b2 so
that the application to b2 is well defined. Goal
b1 should be loosely coupled to b2.
17A General Strategy-based Adaptive Mechanism
From TOPLAS 2003 paper (Lieberherr, Patt-Shamir,
Orleans)
- Three layers of graphs Bottom, Middle, Top
- Bottom layer trees to select subtrees guided by
top layer. Each bottom layer tree has a graph
from the - Middle layer associated with it that contains
meta-information about the bottom layer tree.
Acts as an abstraction barrier between the top
and bottom layers. Used to reduce search space. - Top layer graph is basically a subgraph of the
transitive closure of the middle layer graph,
decorated with additional information attached to
the edges.
18Top graph subgraph of transitive closure of
middle layer
B
A
C
Middle graph Abstraction barrier
B
A
C
Bottom tree select subtrees
B
c1C c2C c3C
A
19Strategy-based adaptiveness
- The call graph application (AspectJ)
- Top computational pattern,
- Middle static call graph,
- Bottom call tree.
- The standard application (Demeter)
- Top strategy graph,
- Middle class graph,
- Bottom object trees.
20AP-Call
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1CrossCut and b2CallGraph, that are woven
together. b1 reveals only partial information
about b2 which makes b1 more robust and reusable.
Advice on b2 at b1.
21AP-AspectJ
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1PointCut and b2CallGraph, that are woven
together. b1 reveals only partial information
about b2 which makes b1 more robust and reusable.
Advice on b2 at b1.
22AP-AspectJ
- Many AspectJ programs are adaptive (designed for
a family of Java programs) - Context Java program or its execution tree
(lexical joinpoints or dynamic join points) - Features enabling adaptiveness
- , .. (wildcards)
- cflow, (graph transitivity)
- this(s), target(s), args(a), call (),
(inheritance as wild card) - pc(Object s, Object t)
- this(s) target(t) call( f )
23AP-COOL
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1Coordinator and b2CallGraph, that are woven
together. b1 reveals only partial information
about b2 which makes b1 more robust and reusable.
Advice on b2 at b1.
Crista Lopes, PhD 1997 Assistant Professor at UC
Irvine, first PhD thesis on AOP.
24AP-Demeter
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program with multiple building blocks including
b1Strategy and b2ClassGraph, that are woven
together. b1 reveals only partial information
about b2 which makes b1 more robust and reusable.
Advice on traversal defined by b1 and b2.
25AP-DJ
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program in terms of ClassGraph-, Strategy- and
Visitor-objects. - Example
- in Java cg.traverse(o, s, v)
The easiest tool to learn good structure-shy progr
amming
26AP-DAJ
- AP-Concern-shy
- AP-Structure-shy
- AP-WildCard
- AP-Strategy
- AP-Call
- AP-Demeter
- Program in terms of Strategy-objects that
introduce traversal methods into
ClassGraph-objects (adaptiveness to class graph). - Enhance the execution of the traversal methods
with Visitor-objects that may modify the run-time
traversal (adaptiveness to the traversal
execution). - Example In AspectJ declare traversal f() s V
o.f()
27crosscutting
base
Adaptive to family of bases
Connected join points
Isolated join points
28Demeter crosscutting I
Class graph or Object graph
From Company to Salary
Adaptive to family of class graphs
From BusRoute via BusStop to Person
Connected join points
29Demeter crosscutting II
Static call graph or Dynamic call graph
From Company to Salary
Adaptive to family of traversal call graphs
_salary(Employee, Object)
Connected join points
Isolated join points
30AspectJ crosscutting I
Class graph or Object graph
Company.cache()
Vector BusRoute.busses
Isolated join points
31Static call graph or Dynamic call graph
AspectJ crosscutting II
Adaptive to family of call graphs
cflow
target(Employee)
Connected join points
Isolated join points
32Demeter crosscutting
Graph
From BusRoute via Bus to Person
Adaptive to family of graphs
_salary(Employee, Object)
Connected join points
Isolated join points
33How are AP and AOP coupled?
- AOP module-shy programming
- Modularize programs that cut across modules (with
minimal reliance on information in modules). - Programming is module-shy if the modular
structure of the program does not prevent
concerns that cut across other concerns to be
modularized. - AP concern-shy programming
Can we view concern implementations as modules?
34Many open questions
- Doug Orleans Simple model of AOP Fred
- Johan Ovlinger Modules and Aspects
- Pengcheng Wu Statically Executable Advice
- Theo Skotiniotis Contracts for Aspects
35The End
36Crosscutting in Demeter
generated Java program
Demeter program
structure-shy functionality
structure
replicated!
synchronization
37range of AOP languages
means of join points
JPM
join points
identifying
specifying semantics at
AspectJ dynamic JPM
points in execution call, get, set
signaturesw/ wildcards other properties of JPs
advice
add members
signatures
class members
static JPM
- DemeterJ, DAJ
- dynamic JPM
- static JPM 1
- static JPM 2
-
- static JPM 3
when traversal reaches object or edge class
members class members class members
visitor method signatures traversal spec. s class
graph g class names class graph
visitor method bodies s g (result traversal
implementation) add members class graph with
tokensgrammar (result parsing and printing
implementation)
38Adaptiveness
- The next 7 viewgraphs show how two traversals
(parts of an adaptive program) adapt to two
different class graphs.
39Class graph Find undefined things
Ident
definedThings
System
Thing
usedThings
def
S
Definition
T
body
Body
D
B
definedThings from System bypassing Body to
Thing usedThings from System through Body to
Thing
40M1 Equation System
EquationSystem
equations
Equation_List
Ident
Variable
lhs
Equation
Numerical
rhs
Expression_List
Simple
args
Expression
op
Add
Compound
41M1 Equation System
definedThings from EquationSystem bypassing
Expression to Variable
EquationSystem
equations
Equation_List
Ident
lhs
Equation
Variable
Numerical
rhs
Simple
args
Expression_List
Expression
S
T
op
Add
Compound
D
B
42M1 Equation System
usedThings from EquationSystem through
Expression to Variable
EquationSystem
equations
Equation_List
Ident
lhs
Equation
Variable
Numerical
rhs
Simple
args
Expression_List
Expression
S
T
op
Add
Compound
D
B
43CS1 Grammar
Entry
0..
EParse
entries
Grammar
BParse
Production
rhs
Body
Part
parts
lhs
NonTerm
0..
Concrete
Abstract
44CS1 Grammar
definedThings from Grammar bypassing Body to
NonTerm
Entry
0..
EParse
entries
Grammar
BParse
Production
rhs
Body
Part
parts
lhs
NonTerm
0..
S
T
Concrete
Abstract
D
B
45CS1Grammar
usedThings from Grammar through Body to NonTerm
Entry
0..
EParse
entries
Grammar
BParse
Production
Body
rhs
Part
parts
lhs
NonTerm
0..
S
T
Concrete
Abstract
D
B
46Software Structure with ACs
Software Structure with ACs
Software Structure with ACs
P1
P1
P1
P2
P2
P2
P3
P3
P3
P1
P1
P1
P4
P4
P4
P3
P3
P3
P5
P5
P5
P2
P2
P2
P2
P2
P2
P6
P6
P6
P1
P1
P1
46
46
46
47AP-structure-shy notion of crosscutting
- B2 program and its execution trees or an
abstraction thereof UML class diagram and its
object diagrams. - A program b1b2 is aspect-oriented if it is
crosscutting. - Examples Adaptive, aspect-oriented programs
Policies (Concurrency, Distribution,
Authentication, Logging), Adaptive Method, Law of
Demeter Checker in AspectJ
48Scattering
- B2 is a graph. Count number of nodes and edges
that are enhanced. Scat(b1b2) number of nodes
and edges in b2 enhanced by b1. The higher the
number, the more the crosscutting. - A program b1B2 is crosscutting if there is an
infinite sequence R1, R2, of B2 so that
Scat(b1R1), Scat(b1R2), is strictly
increasing.
49XAspects An Extensible System for
DomainSpecificAspect Languages
- Macneil Shonle
- Ankit Shah
- Karl Lieberherr
50Goal of AOSD
- Decompose problem into
- Representation languages that support
structure-shy representations of objects (Object
representation concern for input/output/intermedia
te objects) - Benefit define objects in a structure-shy way.
Need structure-shy language design (not XML). - domain-specific aspect languages that support
concern-shy representations of concerns. Aspect
languages are IO-languages-shy.
51Why Domain-Specific Aspect Languages?
- Concerns whose implementation in the chosen PL is
either scattered or the concern implementation
duplicates information of other concerns. - Example Use case U1 concern implemented by
adaptive method - Is scattered (follow Law of Demeter) traversal
methods are spread over many modules - Duplicates (Law of Demeter is violated)
traversal is modularized in one method BUT
duplication of class graph
52DSL
- Domain Specific Languages (DSL) are programming
languages which sacrifice generality for
closeness to a particular problem area. By
reducing the conceptual distance between the
problem space and the language used to express
the problem, programming becomes simpler, easier,
and more reliable. The amount of code which must
be written is reduced -- increasing productivity
and decreasing maintenance costs.
53Shyness can be defined in many different ways
- An implementation of a concern C_1 is C_2-shy if
- The C_1 implementation relies only on minimal
information of C_2 implementations. - The C_1 implementation can adapt to small changes
in C_2 implementations. - The C_1 implementation is loosely coupled with
C_2 implementations. - The C_1 implementation can work with a family
C'_2, C''_2, C'''_2, of C_2 implementations
that are similar.
54Shy a useful term
DJ DemeterJ/DJ/DAJ
- AP concern-shy programming
- DJ class-graph-shy programming
- AOP module-shy programming
- AspectJ is call-graph-shy programming
- AspectJ is class-graph-shy programming
- AspectJ-DAJ is better class-graph-shy programming
- Obliviousness program is aspect-shy
55Related Work
56Related Work SDP NSF Workshop
- Jim Hugunin The Next Steps For Aspect-Oriented
Programming Languages (in Java) - Don Batory ExCIS An Integration of
Domain-Specific Languages and Feature-Oriented
Programming
57Related Work Jim Hugunin
- While aspect libraries can provide some domain
specific support in a general purpose AOP
language such as AspectJ, it is likely that some
domains will be important enough to warrant the
creation of domain-specific AOP languages. Some
engineering approaches to encourage that sort of
work are discussed in the next section.
58Jim Hugunin
- The next obvious step for this extensibility is
to provide clearly documented and stable public
APIs for adding things like custom pointcut
designators or new static program transformations
through extensions of the declare language space.
This would make it easy for other Java-based AOP
languages such as DemeterJ 10 to be implemented
as a compatible extension to AspectJ. Further
into the future, work is needed to determine the
right way to enable programmers to extend these
languages without operating on the compiler.
59Work to be done (Batory)
- Debuggers. Domain-specific languages are not new
languages, but rather extensions of current,
standard languages. So, standard development
environments and debuggers can be used with DSLs.
However, if the programmer works in the context
of the base language (C, Java, etc.) rather
than the extended language, much of the
simplicity obtained by using the DSL is lost.
Therefore, DSL specific debuggers are required.
60Work to be done (Batory)
- Visual Programming Tool-kit. The ExCIS tool-kit
supports the construction of domain-specific
languages. This simplifies the problem of
producing a DSL, but does not assist in providing
an interface between the user and the DSL. An
equivalent tool-kit for the construction of
visual programming environments linked to a
domain-specific language is needed. Such a
tool-kit would allow the DSL designer to easily
specify a visual programming interfacethat would
generate the required DSL code. Some degree of
round-trip engineering would be supported.
61Work to be done (Batory)
- Visual Programming Tool-kit. The ExCIS tool-kit
supports the construction of domain-specific
languages. This simplifies the problem of
producing a DSL, but does not assist in providing
an interface between the user and the DSL. An
equivalent tool-kit for the construction of
visual programming environments linked to a
domain-specific language is needed. Such a
tool-kit would allow the DSL designer to easily
specify a visual programming interface that would
generate the required DSL code.
62Work to be done (Batory)
- Program Composition Validation. The mechanisms
used for the construction of programs using
feature-based components lend themselves to
automated validation for correct composition.
Preliminary work shows that relatively simple
mechanisms can be employed to validate a proposed
composition of features 2. More sophisticated
algorithms from model checking may extend our
capability to compose correct systems 9.
63Work to be done (Batory)
- Program Composition Optimization. Any given
program feature can usually be implemented in a
variety of ways. The best implementation for an
application will depend upon non-functional
requirements such as performance constraints or
resource usage. A feature component library
contains not only components, but also a
characterization of the component. By specifying
both functional and non-functional requirements,
the system assembler can optimize the selection
of components to satisfy both types of
requirements 3.
64Need for Domain-Specific AL
- We conjecture that this gap between
domain-specific aspect languages and general
purpose aspect languages will always exist
because any general solution cannot cover all
possible ways an aspect can crosscut a system. By
their nature concerns are related to the problem
domain, and there is an innite variety of forms
that problem domains can take.
65Aspect Libraries
- AspectJ has some support for particular domains
via abstract aspect libraries The pointcut sets
described by an abstract aspect can be defined
later by a concrete aspect. Only a limited set of
problems has thus far created useful aspect
libraries.
66Problem with multiple DSLs
- A tool for each concern that translates to
AspectJ. - The fragmentation of tools causes problems when
each concern relies on the solutions provided by
the other tools. - While a parser can be orthogonal to the rest of
the program, a traversal through the program
cannot be orthogonal.
67Plug-in Architecture
- The fragmentation problem can be solved by
forcing each domain-specific solution to conform
to particular framework and by defining a common
language with which the domain-specific tools can
communicate. The XAspects tool provides a plug-in
framework that integrates domain-specific
languages such that the tools become extensions
of the AspectJ language. Rules on what a plug-in
can do are introduced in order to enhance the
integration.
68Example
- 01 aspect(ClassDictionary) CompactDisc
- 02 CD "cd" ltalbumgt String "by" Artist ","
- 03 "(" ltupcgt UPCNumber ")" "."
- 04 Artist SingleArtist MultipleArtist
- 05 SingleArist Name
- 06 MultipleArist Name "," CommaList(Name)
- 07 Name String
- 08 UPCNumber String
- 09 CommaList(S) S "," S
- 10
692.2 Compilation Phases
- The XAspects compiler and each plug-in tool
communicate with each other four times - 1. The XAspects compiler identies in the source
code all program text that belongs to the plug-in
and providesthat text to the plug-in. - 2. The plug-in generates source les that dene the
external (i.e. program visible) components
introduced by the language that the plug-in
implements. - 3. The XAspects compiler provides the plug-in the
complete binary of the program. - 4. The plug-in generates behavioral changes to
the generated program in the form of AspectJ
source code. -
702.2.1 Source Code Identication
- The input files to the XAspects compiler are Java
and AspectJ source files that are allowed to
include one minor syntactic extension When the
aspect keyword is followed by parentheses the
parentheses must contain a valid type name for a
class that can be found on the current class path.
712.2.2 Generation of External Interfaces
- The XAspects compiler then queries each plug-in
to provide a set of source files that describe
the program visible interfaces generated by the
plug-ins. For example, the ClassDictionary
plug-in at this point will provide the list of
classes, methods and fields that were described
by the grammar.
72External Interfaces
- The external interfaces are described through
AspectJ source code. Therefore the external
interfaces can express new classes or modications
to existing classes via inter-type declarations.
73External Interfaces
- The AspectJ source code generated needs to meet
the following restrictions - All new classes generated must be generated for
the same package in which the aspect body was
defined. - All new classes generated must have a name that
appeared as an identifier token in the aspect
body. This restriction allows the user of the
plug-in to have full control over the names
generated.
74External Interfaces
- All new public fields or new public methods
introduced to existing classes (via inter-type
declarations) must have a name that appeared as
an identifier token in the aspect body. - The fields or methods introduced to new classes
do not have to be named by identifiers present in
the aspect body because any further changes to
that class will be done by external inter-type
declarations or plug-ins. Any name clashes that
arise can be handled in those changes.
752.2.3 Crosscutting Analysis
- After the external interfaces are generated by
the plug-ins, the rest of the AspectJ and Java
source is compiled with those interfaces. At this
point the structure of the program is complete
and plug-ins cannot add new fields to any of the
classes. Because the structure of the program is
fixed the complete bytecodes for the program can
be provided to each plug-in. Because each plug-in
is ultimately generating Java bytecodes, the
changes made by all plug-ins are in the same
language.
76Crosscutting Analysis
- During this phase, domain-specific aspect
languages can perform structural analysis on the
program. For example, the Traversal plug-in can
generate concrete paths based on the traversal
rules specified.
772.2.4 Generation of Semantics
- Finally, each plug-in can provide semantic
changes by using AspectJ's dynamic join-point
model. The implementation of stub functions can
be specified by using AspectJ's around advice.
New private methods can also be introduced at
this point by using inter-type declarations. Note
that a private inter-type declaration does
introduce a private method to the class, rather
it introduces a method to the class that is only
visible by the generating aspect. For example,
the Traversal plug-in can generate private
methods to each of the classes it needs to
traverse these private methods cannot be called
by other parts of the program.
78Advantages of XAspects
- The XAspects system is unique because it
separates conceptually two different provisions
of a domain-specific language - the langauge's external interface and
- its semantics.
- The separation of these two concepts allows for
the plug-ins to passively cooperate with each
other.
79Advantages of XAspects
- The XAspects infrastructure essentially reduces
the problem for a domain-specific language to the
problem of reading in Java code and producing
changes and additions to that code. Dependency
issues among domain-specific languages are
reduced each plug-in only has to worry about the
properties of Java classes, and not the
properties of constructs of other domain-specific
languages that created those classes.
80Advantages of XAspects
- It could be argued that it is not feasible to
introduce many little domain-specific languages
that the programmers have to work with. However,
the inherent complexity of a project may require
that the programmers address the issues of
composition of aspect languages on a conceptual
level. A conscious language design that addresses
the aspect composition issues systematically can
simplify the programmer's job Without such an
approach, the programmers will have to do this at
the lower level of a general purpose aspect
language, which results in more code that
actually needs to be written, some of which will
be redundant with the structure of the program
and could have been automatically generated.
81Future work
- Add Multi-Java as a plug-in.
- HyperJ like features.
- Composition filters.
- Sandbox for experimenting with multiple AOP
approaches.
82End
83Mitch Suggestion
- Spectrum
- Oblivious
- Nothing at all
- Information-Hiding
- Well defined interface
- Shyness
- Goes inside information restriction
- Program, structure, class graph, call graph,
concern, aspect
84Goal of AOSD
- Decompose into domain-specific languages DL1,
and aspect-specific languages AS1, - Dli have minimal overlap
- As1 is shy of Dli and other Asi (elements of AS1
are shy of elements of DL1 and elements of
