Transcranial Magnetic Stimulation Positioner

1

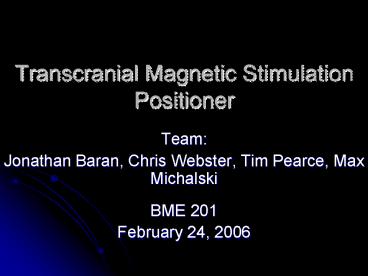

Transcranial Magnetic Stimulation Positioner

• Team
• Jonathan Baran, Chris Webster, Tim Pearce, Max
  Michalski
• BME 201
• February 24, 2006

2
Intellectual Property

• All information provided by individuals or Design
  Project Groups during this or subsequent
  presentations is the property of the University
  and of the researchers presenting this
  information. In addition, any information
  provided herein may include results sponsored by
  and provided to a member company of the
  Biomedical Engineering Student Design Consortium
  (SDC). The above information may include
  intellectual property rights belonging to the
  University to which the SDC may have license
  rights.
• Anyone to whom this information is disclosed
• 1) Agrees to use this information solely for
  purposes related to this review
• 2) Agrees not to use this information for any
  other purpose unless approved in advance by the
  Project Group, the Client / SDC, and the Advisor
• 3) Agrees to keep this information in confidence
  until the University and the relevant parties
  listed in Part (2) above have evaluated and
  secured any applicable intellectual property
  rights in this information
• 4) Acknowledges that worldwide patent rights are
  waived if publication or public dissemination
  occur prior to filing a corresponding U.S.
  provisional or utility patent application.

3
ClientDr. Brad PostleDepartment of
PsychologyEmail postle_at_wisc.eduAdvisorDr.
Paul ThompsonDepartment of Biomedical
EngineeringEmail pdthompson_at_wisc.edu
4
Overview

• What is TMS?
• Current Problems
• Problem Specifications
• Proposed Designs
• Future Work
• Questions

(http//intra.ninds.nih.gov/images/Research_Images
/wassermanne_at_ninds.nih.gov.jpg)
5
Background

• How it works
• TMS coil creates a large precise current
• Magnetic field passes through the skull into the
  brain
• Induced currents deactivate specific brain
  regions
• Stages
• EEG test
• fMRI scan

(www.abc.net.au)
6
(No Transcript)
7
Problems with Current Procedure
Inability to precisely and accurately reposition
a patients head with respect to the TMS holder in
variant testing sites. No previous studies have
required these specifications to model the
procedure/design after.
8
Problem Specifications

• Design a device which can accurately and
  precisely relocate patients with respect to the
  TMS holder at various testing locations
• Reproduce position within 1 cm of error
• Comfortably maintain the patients head in
  position for many hours
• Application time/difficulty minimized
• Minimal space available
• MRI compatible materials

9
Prototype 1 All-In-One Positioner

• Mounted directly to TMS holder
• Adjustable
• Dual ear and nose positioning
• Jointed at nose piece attachment

10
Prototype 2 Head plate

• Locks into TMS holder
• Adjustable
• Dual ear and chin positioning
• Setup prior to patient entering MRI tunnel

11
Prototype 3 Neck Positioning

• Mounts to TMS holder
• Locks neck in position
• Setup prior to insertion to MRI tunnel

(http//www.painreliever.com/xmodels/painreliever/
ScottPhillyCollarh.jpg)
12
Design Matrix
13
Future Work

• Finalize dimensions and materials
• Build Final Prototype
• Test Prototype

14
References

• http//www.painreliever.com/xmodels/painreliever/S
• www.abc.net.au
• http//intra.ninds.nih.gov/images/Research_Images/

15
Questions?
