Title: Metamorphic Textures


1

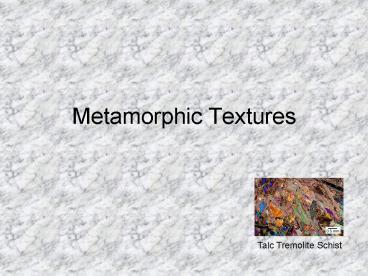

Metamorphic Textures
Talc Tremolite Schist
2
Two Main Categories
  • Foliated
  • A planar arrangement of textural features in a
    rock
  • Rocks are categorized by their texture which
    reflects the amount of stress the rock has
    undergone
  • Nonfoliated (Granular)
  • Often monomineralic

Gneiss
3
Foliated RocksLow Grade (Low-rank)
Low to moderate temperature and pressure
conditions
  • Slate
  • Fine grained
  • Clays, micas, chlorite, graphite
  • Slately cleavage (flat sheets)
  • Protolith Shale

4
Foliated RocksLow Grade
  • Phyllite
  • (Near) planar foliation
  • Transitional between slate and schist
  • Larger crystals than slate
  • (but are usu not visible)
  • Corrugated cleavage
  • Phyllitc Sheen (High reflectance)
  • Protolith Shale

Phyllite
5
Foliated RocksMedium Grade
  • Schist
  • Schistosity (Distinct Fine Foliation)
  • Common minerals (not limited to)
  • Mica, chlorite, talc, graphite

Quartz Muscovite Schist
6
Foliated RocksHigh Grade (High Rank)
High temperature and pressure conditions
  • Gneiss
  • Coarse grained
  • Minerals separate into alternating monomineralic
    bands

7
Nonfoliated RocksMonomineralic
  • Quartzite
  • Quartz
  • Protolith Sandstone
  • Medium grained
  • Fractures through grains
  • Marble
  • Calcite
  • Protolith Limestone
  • Contact Metamorphism (High T)

8
Nonfoliated RocksNot Monomineralic
  • Hornfel
  • Fine grained
  • Brittle
  • Lacks foliation
  • Contact Metamorphism (High T)
  • May contain high T minerals
  • e.g. andalusite, cordierite

9
Other Examples
  • Mylonite
  • Fine-grained rock formed by grinding during
    intense folding faulting
  • Fiamme
  • Lumps of flattened and stretched pumice and glass
    fragments that have become depressed into disk
    like forms.
