Title: CORE MATERIALS

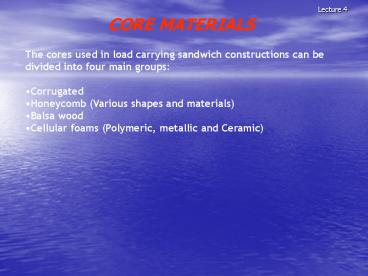

1
Lecture 4
  • CORE MATERIALS
  • The cores used in load carrying sandwich
    constructions can be divided into four main
    groups
  • Corrugated
  • Honeycomb (Various shapes and materials)
  • Balsa wood
  • Cellular foams (Polymeric, metallic and Ceramic)

2
Lecture 4
  • CORE MATERIALS
  • Core should have low density in order to add as
    little as possible to the total weight of the
    sandwich
  • Youngs modulus perpendicular to the faces should
    be fairly high to prevent a decrease in the core
    thickness and therefore a rapid decrease in the
    flexural rigidity
  • The core is mainly subjected to shear so that the
    core shear strains produce global deformations
    and core shear stresses
  • Thus, a core must be chosen that would not fail
    under the applied transverse load and with a
    shear modulus high enough to give the required
    shear stiffness
  • The critical wrinkling load depends on both
    Youngs modulus and the shear modulus of the core

3
Lecture 4
  • CORE MATERIALS
  • The properties of primary interest for the core
    may be summarised as
  • Low density
  • Shear modulus
  • Shear strength
  • Stiffness perpendicular to the faces
  • Thermal insulation

4
Lecture 4
  • HONEYCOMB CORES
  • Core materials of honeycomb type have been
    developed and used mainly in aerospace
    applications
  • However, cheap honeycomb materials made from
    impregnated paper are also used in building
    applications
  • Honeycomb cores can be manufactured in a variety
    of cell shapes but the most commonly used shape
    is the hexagonal
  • Others are square, over-expanded hexagonal,
    flex-core.
  • Over-expanded and flex-core are mainly used when
    the core needs to be curved in the manufacturing
    of the sandwich element

5
Lecture 4
  • HONEYCOMB CORES
  • Over-expanded hexagonal and flex-core shapes
    reduce the anticlastic bending and cell wall
    buckling when curved
  • There are other cell shapes used such as
    rectangular, and reinforced hexagonal.
  • The manufacturing of metal honeycombs is
    performed in two different ways Corrugating and
    expansion processes
  • Corrugating implies that pre-corrugated metal
    sheets are bonded together and stacked into
    blocks
  • When the adhesive has cured, blocks with the
    required thickness can be cut from the stack
  • The process is commonly used in manufacture of
    high-density metal honeycombs

6
Lecture 4
  • HONEYCOMB CORES
  • The expansion process begins with the stacking of
    thin plane sheets of web material on which
    adhesive nodes have been printed
  • By stacking many thin layers in this way a block
    is made
  • Each block may then be cut into desired thickness
    (T-direction).
  • When the adhesive has cured it may be expanded by
    pulling in the W-direction until a desired cell
    shape has been achieved

7
Lecture 4
  • HONEYCOMB CORES
  • Various honeycomb cores may be found such as
  • Aluminium alloy honeycomb
  • Kraft paper honeycombs
  • Non-metallic honeycombs

8
Lecture 4
  • HONEYCOMB CORES
  • Aluminium alloy honeycomb
  • Extensivly used in aerospace applications during
    the past decades
  • They are commonly made of the aluminium alloys
    5052, 5056, and 2024
  • 5052 is a general purpose alloy, 5056 a high
    strength version of 5052 and 2024 a heat treated
    aluminium alloy with good properties even at
    elevated temperature
  • The 5052 and 5056 alloy honeycombs can be used in
    environments up to 180C and the 2024 up to
    210C.

9
Lecture 4
  • HONEYCOMB CORES
  • Kraft paper honeycombs
  • Manufactured by impregnating paper with resin to
    make it water resistant
  • This provides cheap, but still mechanically very
    good sandwich core
  • Some manufacturers can even fill the cells of
    Kraft paper honeycomb with a light weight foam
    (usually PUR or phenolic) for improved thermal
    insulation

10
Lecture 4
  • HONEYCOMB CORES
  • Non-metallic honeycomb
  • Similar to fibre-reinforced plastics but with
    honeycomb shape
  • Produced by impregnating a pre-fabricated
    cell-shaped fabric in a bath of resin
  • Different honeycombs are available with glass,
    aramid or even carbon fibre fabric reinforcement
  • The matrix which the fabric is impregnated with
    usually phenolic, heat resistant phenolic,
    polyimide or polyester
  • Phenolic impregnated have maximum working
    temperature up to 180C, polyimide 250C,
    polyester 80C

11
Lecture 4
  • HONEYCOMB CORES
  • Non-metallic honeycomb contd
  • A well-known type of fibre-impregnated honeycomb
    is made of NOMEX paper, which is an aramid fibre
    based fabric expanded in much the same way as
    aluminium alloy honeycomb before being coated
    with resin
  • It is widely used because of its high toughness
    and damage resistance and since it has almost as
    high mechanical properties as aluminium alloy
    honeycomb.
  • Nomex honeycomb can be used up to 180C at which
    its strength still approximately 75 of its room
    temperature value

12
Lecture 4
  • BALSA WOOD CORE
  • First material used as cores in load carrying
    sandwich structures
  • Balsa is a wood but under the microscope it can
    be seen as a high-aspect-ratio closed-cell
    structure
  • The fibres or grains are oriented in the
    direction of growth producing cells with a
    typical length of 0.5-1.0 mm and with a diameter
    of about 0.05 mm, thus giving the cell ratio of
    approximately 125.
  • The properties of balsa are therefore high in
    direction of growth but much lower in the others
  • Balsa exists in different qualities with
    densities in the regime 100 to 300 kgm-3.

13
Lecture 4
  • BALSA WOOD CORE contd
  • Balsa is also very sensitive to humidity with the
    properties rapidly declining with the water
    content
  • To overcome the above problem balsa is most
    commonly utilised in its end-grain shape.
  • This means that the balsa wood is cut up in cubic
    pieces and bonded together edge wise so that a
    block is produced where the fibre direction is
    located perpendicular to the plane of the block.
  • In this way, principal direction of stiffness is
    perpendicular to the faces, and humidity is
    spread along the fibres and hence damage would
    only cause localised humidity damage
  • The drawback is that all the small balsa blocks
    have different densities and the design limit
    must be taken from the piece of having the lowest
    properties

14
Lecture 4
  • CELLULAR FOAMS
  • Cellular foams do not offer the same high
    stiffness and strength-to-weight ratios as
    honeycombs but have other very important
    advantages
  • Firstly, cellular foams are in general less
    expensive than honeycombs but more importantly, a
    foam is a solid on a macroscopic level making the
    manufacturing of sandwich element easier the
    foam surface is easy to bond to, surface
    preparation and shaping is simple and connections
    of block are easily performed by adhesive bonding
  • In addition, cellular foams offer high thermal
    insulation, acoustal damping, and the closed cell
    structure of most foams ensure that the structure
    will become bouyant and resistant to water
    penetration

15
Lecture 4
  • CELLULAR FOAMS contd
  • There exist a variety of foams, with different
    advantages and disadvantages. Some of these are
    (polymer-based)
  • Polyurethane foam (PUR)
  • Polystyrene foam (PS)
  • Polyvinyl chloride foam (PVC)
  • Poly-methacryl-imide foam (PMI)

16
Lecture 4
  • CELLULAR FOAMS
  • Polyurethane foam (PUR)
  • The urethane polymer is formed through the
    reaction between iso-cyanate and polyol, and
    tri-chloro-fluoro-methane or carbon dioxide used
    as blowing agent
  • Produced in many variations from soft with more
    or less open cells to rigid types with
    predominantly closed cells and in a wide range of
    density
  • They can be made fire resistant by using additive
    containing phosphorous
  • Due to high molecular weight, PUR foams have low
    thermal conductivity and diffusion coefficients
    giving them very good insulation properties

17
Lecture 4
  • CELLULAR FOAMS
  • Polyurethane foam (PUR)
  • Rigid PUR foams generally have quite brittle cell
    walls and hence the PUR core has low toughness
    and low ultimate elongation
  • The mechanical properties are lower than most
    other cellular plastic core but PUR foams are
    probably the cheapest of all available core
    materials
  • The primary use of PUR is for insulation purposes
    or in less critical load bearing elements
  • An advantage is that PUR foam can be produced in
    finite size blocks as well as being formed
    in-situ thus giving an integrated manufacturing
    process in conjunction with the manufacturing of
    sandwich elements

18
Lecture 4
  • CELLULAR FOAMS
  • Polystyrene foam
  • Produced either by extrusion or by expansion in
    closed moulds
  • In both cases the plastic is mixed with the
    blowing agent which then expands at elevated
    temperature
  • A major obstacle was that CFC was used as blowing
    agent, but recently PS foams have been expanded
    without the use of environmentally dangerous
    CFC-gases
  • PS has closed cells and is available in densities
    ranging from 15 to 300 kgm-3.
  • Ps foam has quite good mechanical and thermal
    insulation properties, and its cheap

19
Lecture 4
  • CELLULAR FOAMS
  • Polystyrene foam contd
  • A drawback is its sensitivity to solvents,
    particularly styrene, and hence ester-based
    matrices can not be used as adhesives
  • PS is primarily used as thermal insulation
    material but lately it has also been used in load
    carrying structures such as refrigerated tanks
    and containers

20
Lecture 4
  • CELLULAR FOAMS
  • Polyvinyl chloride foam (PVC)
  • Exists in two different forms one purely
    thermoplastic also called linear PVC foam, and
    one cross-linked iso-cyanide modified type
  • The linear PVC has great ductility, quite good
    mechanical properties but softens at elevated
    temperatures
  • The cross-linked PVC is more rigid, has higher
    mechanical properties, is less heat sensitive,
    but more brittle.
  • Still, even cross-linked PVC has an ultimate
    elongation of about 10 in tension which is much
    higher than PUR foam

21
Lecture 4
  • CELLULAR FOAMS
  • Polyvinyl chloride foam (PVC) contd
  • PVC foam is available in finite size blocks with
    densities from 30 to 400 kgm-3
  • The mechanical properties of PVC are higher than
    those of both PUR and PS, but is also expensive
    than those
  • It is non-flammable foam but when burnt a
    hydrochloric acid gas is released
  • PVC foam are used in almost every type of
    application varying from pure insulation
    applications to aerospace structures and hence
    the almost widely used of all foams and perhaps
    of all core materials
  • PVC has about 95 closed cells for the lower
    densities and almost entirely closed cell for
    higher, which is much appreciated in applications
    where water absorption is a problem

22
Lecture 4
  • CELLULAR FOAMS
  • Poly-methacryl-imide (PMI)
  • Acryl-imide cellular plastics are made from
    expanded imide-modified polyacrylates
  • The mechanical properties are good, perhaps the
    best of all commercially available cellular
    foams, but the price is also the highest
  • PMI is fairly brittle with an ultimate elongation
    in tension of approximately 3 in tension.
  • The main advantage is the temperature resistance
    making it possible to use PMI foam in conjunction
    with epoxy prepregs in autoclave manufacturing
    in up to 180C environments
  • The cell structure is very fine with closed cells
    and the densities available are from 30 to 300
    kgm-3

23
Lecture 4
In most cases, an efficient sandwich panel is
obtained when the weight of the core is almost
equivalent to the combined weight of the
faceplates 2. By separating the faceplates
using a low density core, the moment of inertia
of the panel is increased and hence resulted in
improved bending stiffness. Therefore, the
bending stiffness of a sandwich structure greatly
exceeds that of a solid structure having the same
total weight and made of the same material as the
facings. Furthermore, due to the porous nature of
the core material, sandwich structure has
inherent exceptional thermal insulation and
acoustic damping properties.
Write a Comment
User Comments (0)
About PowerShow.com
